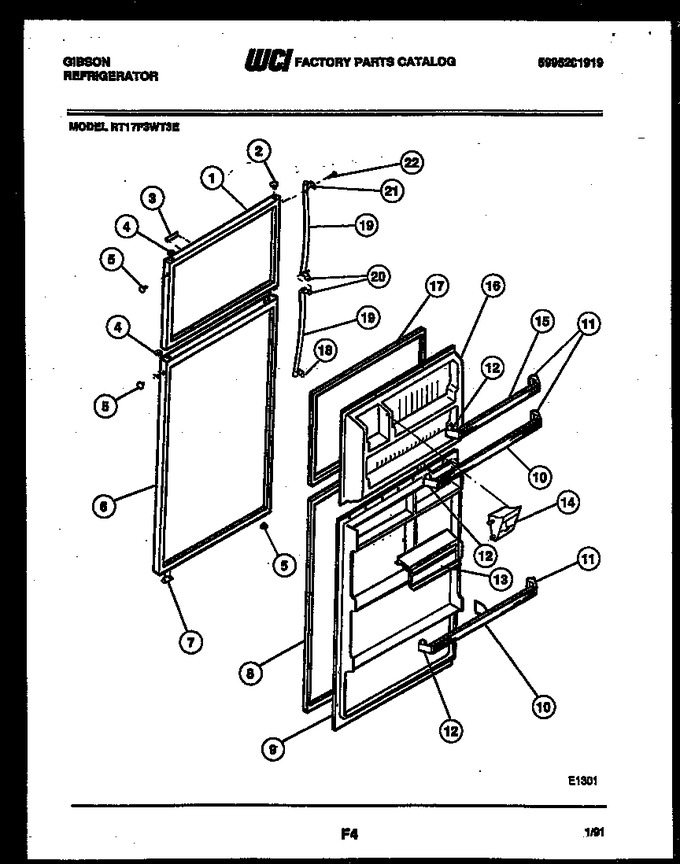

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317857111 | Freezer Door - Almond |
|
- | |||||
| 1 | 5300178571 | Freezer Door - White |
|
- | |||||
| 1 | 5317857108 | Freezer Door - Avocado |
|
- | |||||
| 1 | 5317857109 | Freezer Door - Wheat |
|
- | |||||
| 1 | 5317857110 | Freezer Door - Coffee |
|
- | |||||
| 2 | 5303001308 | Plug-almond |
|
- | |||||
| 2 | 5308000134 | Plug-white |
|
$ 5.62 | |||||
| 2 | 5308000175 | Plug-avocado |
|
- | |||||
| 2 | 5308000176 | Plug-wheat |
|
- | |||||
| 2 | 5303001657 | Plug-coffee |
|
- | |||||
| 3 | 5317511702 | Frame - Nameplate |
|
- | |||||
| 4 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 5 | 5308000178 | Plug-coffee (8) |
|
- | |||||
| 5 | 5308000181 | Plug-almond (8) |
|
- | |||||
| 5 | 5308000180 | Plug-wheat (8) |
|
- | |||||
| 5 | 5308000179 | Plug-avocado (8) |
|
- | |||||
| 5 | 240494001 | Plug-white (80) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 6 | 5317869411 | Refr Door-almond |
|
- | |||||
| 6 | 5317869410 | Refr Door-coffee |
|
- | |||||
| 6 | 5317869408 | Refr Door-avocado |
|
- | |||||
| 6 | 5300178574 | Refr Door-white |
|
- | |||||
| 6 | 5317869409 | Refr Door-wheat |
|
- | |||||
| 7 | 5308000255 | Door Stop, Freezer (1) |
|
$ 42.20 | |||||
| 8 | 218730603 | Gasket-refr Door (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 9 | G187557-02 | Inner Panel-refr |
|
- | |||||
| 10 | G161019-57 | Rack-door (3) |
|
- | |||||
| 11 | 5317828702 | Support - Rh (4) |
|
- | |||||
| 12 | 5317828402 | Support - Lh (4) |
|
- | |||||
| 13 | G187490-01 | Dairy Door |
|
- | |||||
| 14 | 3202032 | Dispenser-juice Can |
|
- | |||||
| 15 | 5303016720 | Rack-frzr-upper |
|
- | |||||
| 16 | 3204553 | Inner Panel-freezer |
|
- | |||||
| 17 | 5303001399 | Gasket-freezer Door |
|
- | |||||
| 18 | 5303001295 | Handle - End Bottom |
|
- | |||||
| 19 | 5317049526 | Grip - Handle (2) |
|
- | |||||
| 20 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 21 | 5303001297 | Handle End Top |
|
$ 70.22 | |||||
| 22 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *37370 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 16A | 08002748 | Screw |
|
- | |||||
| 3A | 5318837802 | Label-nameplate Upr (non-illustrated) |
|
- | |||||
| 3B | 3019041 | Label-nameplate Lwr (non-illustrated) |
|
- | |||||
| 3C | 5315340760 | Tape-nameplate Mtg (non-illustrated) |
|
- | |||||
| 7A | 5303212491 | Door Stop-refrigerator (1) (non-illustrated) |
|
- | |||||
| 7B | 5308011745 | Screw |
|
$ 10.38 | |||||
| 9A | 08002748 | Screw |
|
- |
