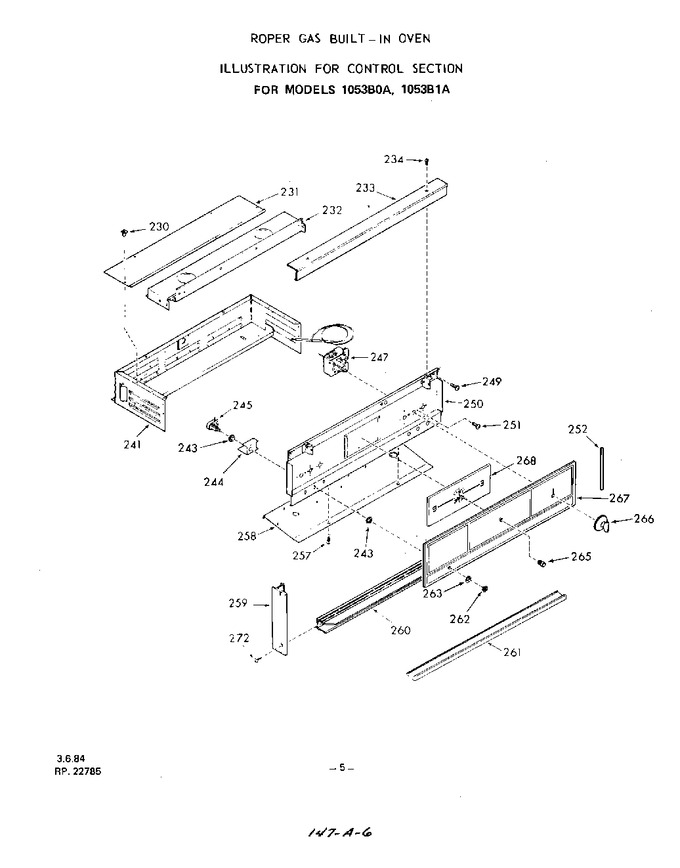

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
230	70588		Clip		Appelez-nous	-
231	323580		Rear Top Cover		Appelez-nous	-
232	323572		Top Cover (front)		Appelez-nous	-
233	300195		Lamp Shade		Appelez-nous	-
234	295268		Screw 6-32x3/8``		Appelez-nous	-
241	323568		Control Cover		Appelez-nous	-
243	236129		Pal Nut		Appelez-nous	-
244	291351		Switch Shield		Appelez-nous	-
245	298794		Push Switch		Appelez-nous	-
247	307438		Thermostat		Appelez-nous	-
249	105667		Screw 6-32x3/8``		Appelez-nous	-
250	307962		Control Mounting Panel		Appelez-nous	-
251	78565		Screw 8-32x3/16``		Appelez-nous	-
252	239565		End Trim-lt. Or Rt.		Appelez-nous	-
257	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
258	323564		Bottom-backguard		Appelez-nous	-
259	300185		Side Trim-control Panel (left)		Appelez-nous	-
259	300186		Side Trim-control Panel (right)		Appelez-nous	-
260	300209		Lower Trim-control Panel		Appelez-nous	-
261	239569		Vent Trim		Appelez-nous	-
262	87403		Knurled Nut		Appelez-nous	-
263	104838		Washer		Appelez-nous	-
265	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
266	308054		Knob-thermostat		Appelez-nous	-
267	324068		Backguard Glass		Appelez-nous	-
268	307956		Clock		Appelez-nous	-
272	307954		Wire Harness-main		Appelez-nous	-
272	299766		Screw 6-32 X 1/2``		Appelez-nous	-
	LIT328031		Repair Parts Manual		Appelez-nous	-
	1002161		Filler Kit (optional)		Appelez-nous	-
	1002141		Oustide Venting Kit (optional)		Appelez-nous	-
	LIT324000		Gas Care & Use Guide		Appelez-nous	-
	LIT324131		Installation & Reference Guide		Appelez-nous	-
	LIT324132		Operating Guide		Appelez-nous	-
