SELECT A DIAGRAM

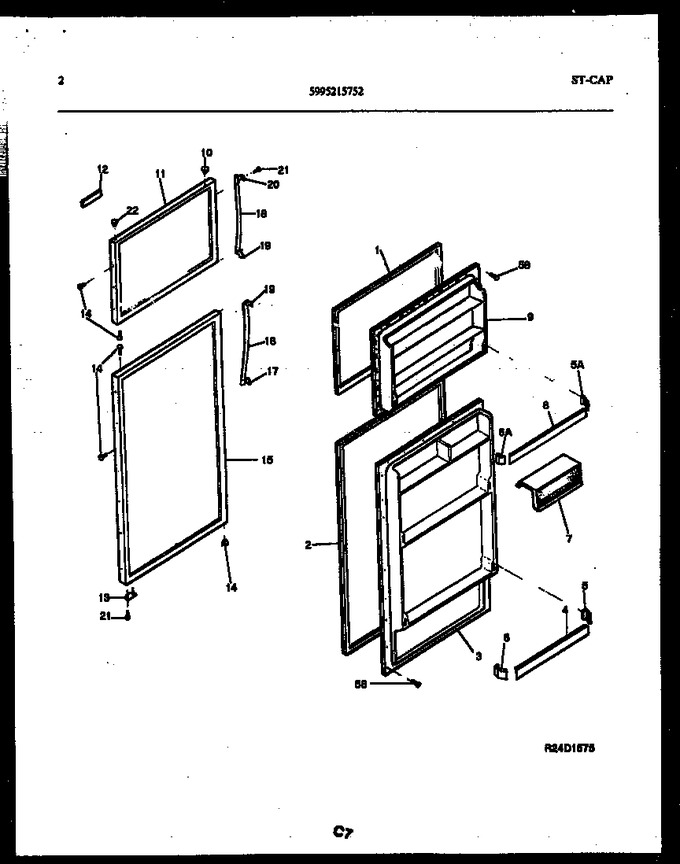

02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303001399 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 218730603 | Gasket-refr Door, Magnetic (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 3 | 5303272501 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303272502 | Rack-door, (2) |
|
- | |||||
| 5 | 5303272503 | Support-door Rack, Rh, (2) |
|
- | |||||
| 6 | 5303272504 | Support-door Rack, Lh, (2) |
|
- | |||||
| 7 | 5303272510 | Door-dairy |
|
- | |||||
| 8 | 5303272497 | Rack-door, (2) |
|
- | |||||
| 9 | 5303272496 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916739 | Panel-frzr Door, White |
|
- | |||||
| 12 | 5303272505 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916734 | Panel-refr Door, White |
|
- | |||||
| 17 | 5303001297 | Handle End |
|
$ 70.22 | |||||
| 18 | 5303272495 | Grip-handle, (2) |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001295 | Handle End |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *46087 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 5A | 5303272498 | Support-door Rack, Rh, (2) |
|
- | |||||
| 6A | 5303272499 | Support-door Rack, Lh, (2) |
|
- |
