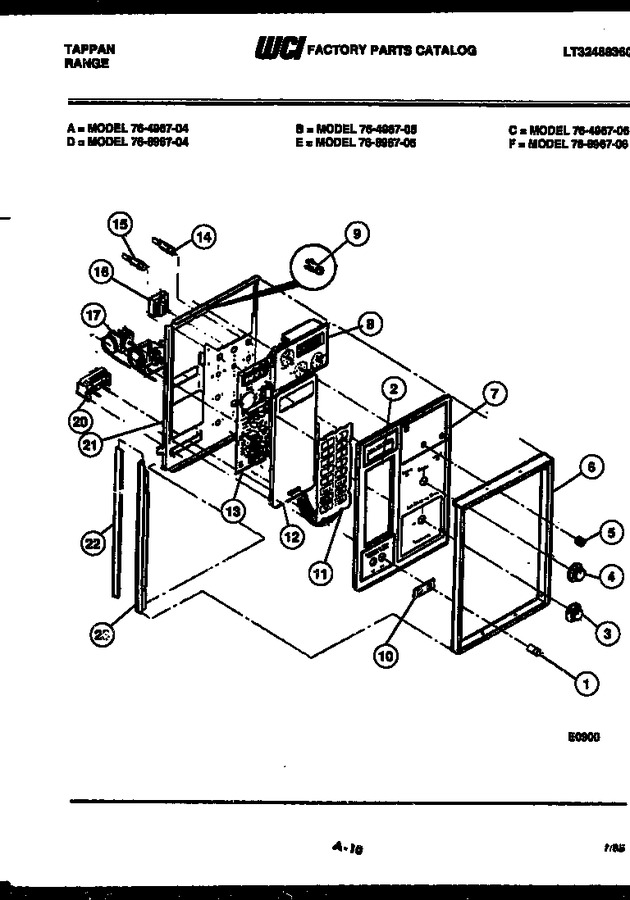

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3091544 | Button (2) |
|
- | |||||
| 2 | 3091347 | Trim |
|
- | |||||
| 3 | 3091408 | Knob Oven Set |
|
- | |||||
| 4 | 3091400 | Knob Oven Temp |
|
- | |||||
| 5 | 358T201P01 | Knob, Clock (3) |
|
- | |||||
| 6 | 740T406P04 | Trim Control Pnl |
|
- | |||||
| 7 | 3091409 | Glass Panel |
|
- | |||||
| 8 | 3091385 | Clock Digital |
|
- | |||||
| 9 | 241T017P228 | Fastener, Clock |
|
- | |||||
| 10 | 3091375 | Bezel |
|
- | |||||
| 11 | 3091395 | Switch Touch Membrane |
|
- | |||||
| 12 | 511T048P01 | Panel Switch |
|
- | |||||
| 13 | 139T026P02 | Circuit Board |
|
- | |||||
| 14 | 318T023P11 | Lite Indicator (3) |
|
- | |||||
| 15 | 636T090P51 | Screw Board (4) |
|
- | |||||
| 16 | 3091345 | Switch 5 Pos. |
|
- | |||||
| 17 | 3016678 | Thermostat Oven |
|
- | |||||
| 18 | 636T096P23 | Screw Switch (2) |
|
- | |||||
| 20 | 697T047P04 | Switch On-off |
|
- | |||||
| 21 | 3091468 | Control Panel |
|
- | |||||
| 22 | 643T013P01 | Seal |
|
- | |||||
| 23 | 174T264P03 | Cover Seal |
|
- | |||||
| 24 | 102T019P01 | Bushing Glass (2) |
|
- | |||||
| 25 | 665T175P01 | Spacer Cntrl Pnl (2) |
|
- | |||||
| 26 | 657T010F01 | Shield Switch |
|
- | |||||
| 27 | 636T046P02 | Screw Trim (2) |
|
- | |||||
| 28 | 636T046P02 | Screw Sw Pnl. (7) |
|
- | |||||
| 29 | 636T096P23 | Screw Sw. (4) |
|
- |
