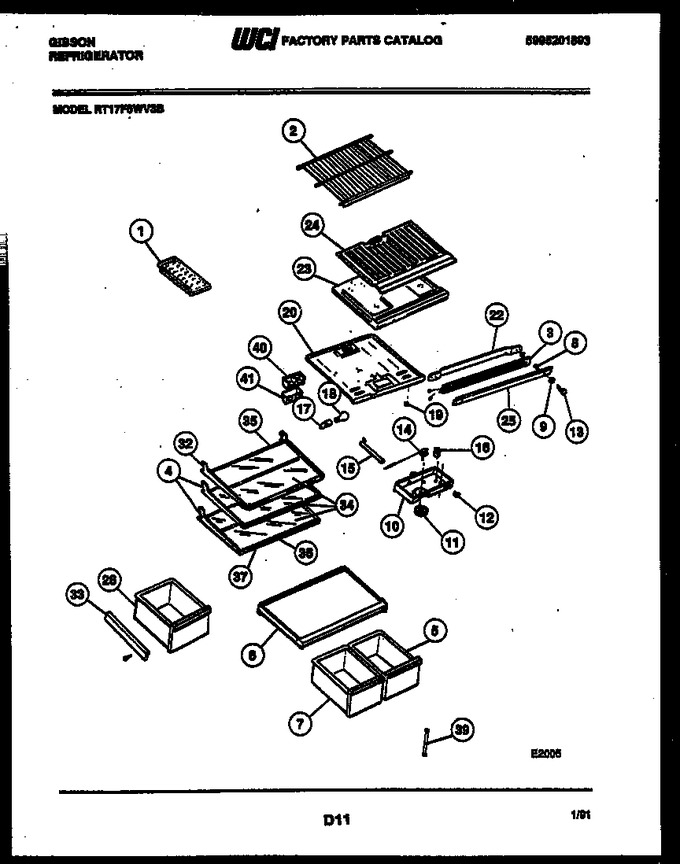

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001324		Ice Tray (2)		Appelez-nous	-
2	5317705910		Shelf-freezer		Appelez-nous	-
3	5308017408		Heater-mullion		Appelez-nous	-
4	5303211193		Frame-cantilever (2)		Appelez-nous	-
5	5349001537		Pan Crisper - Rh		Appelez-nous	-
6	5349001601		Cover-crisper		Appelez-nous	-
7	G490015-46		Pan-crisper Lh		Appelez-nous	-
8	5303200464		Spacer-mullion		Appelez-nous	-
9	5303206754		Washer-no. 10 Steel (2)		Appelez-nous	-
10	5303206574		Control Box		Appelez-nous	-
11	5303201777		Knob - Temp. Control		Appelez-nous	-
12	5303206872		Switch-energy Saver		Appelez-nous	-
13	5308012258		Screw				$ 2.25
14	5303018894		Control-temperature		Appelez-nous	-
15	3018991		Housing-cont Cap Tube		Appelez-nous	-
16	215846602		Timer-defrost   (Replaces: 5300187484)			Immediately	$ 28.20
17	218906802		Light Socket   (Replaces: 5308000815)				$ 17.72
18	5303001179		Light Bulb		Appelez-nous	-
19	5309918806		Light Switch			Immediately	$ 21.97
20	3018881		Top-refrigerator		Appelez-nous	-
22	5308003604		Strap, Mullion Mtg		Appelez-nous	-
23	5303018899		Divider, Styrofoam		Appelez-nous	-
24	5303001537		Bottom-freezer		Appelez-nous	-
25	3916135		Mullion-avocado		Appelez-nous	-
25	5303200465		Mullion, White		Appelez-nous	-
25	3916132		Mullion, Wheat		Appelez-nous	-
25	3916133		Mullion, Coffee		Appelez-nous	-
25	5303916134		Mullion-almd		Appelez-nous	-
26	G187181-01		Meat Pan		Appelez-nous	-
32	5303210995		Frame - Meat Keeper Shelf		Appelez-nous	-
33	5303210016		Hanger, Meat Pan, Lh				$ 134.09
34	5303211194		Glass-shelf (3)		Appelez-nous	-
35	5303211192		Trim-rear Shelf Retnr (3)		Appelez-nous	-
36	5303209274		Retainer-glass (3)		Appelez-nous	-
37	5303209119		Trim-shelf (3)		Appelez-nous	-
39	5303205987		Support-crisper Cover Adj				$ 48.41
40	5308014667		Deflector, Air		Appelez-nous	-
41	5303001448		Cover-air Deflector		Appelez-nous	-
*35381	5303200590		Extension & Insulation Air Deflector		Appelez-nous	-
*35381	5303001449		Seal-air Deflector (2)				$ 2.12
10A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
14A	5303001260		Screw				$ 6.73
16A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
20A	5303001380		Screw		Appelez-nous	-
23A	3205266		Protector-edge (non-illustrated)				$ 80.09
2A	3201150		Cap-protector (2) (non-illustrated)				$ 4.57
2B	5304509705		Grommet-rh (4) (non-illustrated)   (Replaces: 5303001609)				$ 10.01
2C	5304500407		Grommet-lh (4) (non-illustrated)   (Replaces: 5308009759)			Immediately	$ 6.38
33A	5303210017		Hanger, Meat Pan, Rh (non Illustrated)				$ 107.89
33B	08014528		Screw-8x1/2 (2) (non-illustrated)				$ 4.31
35A	5303211351		Lock Trim (non-illustrated)		Appelez-nous	-
6A	5308009647		Gasket-crisper Cover (non-illustrated)		Appelez-nous	-
