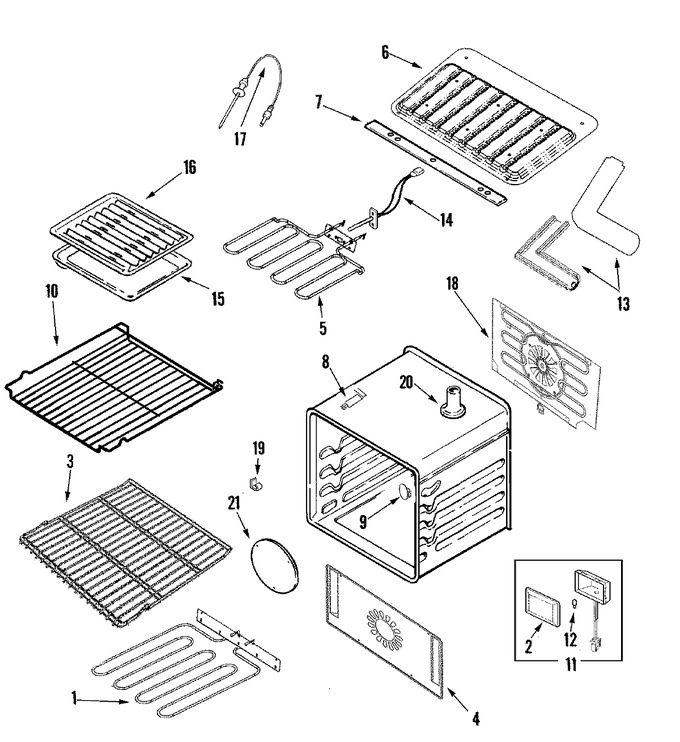

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel/internal Controls
03 - Door
04 - Oven
05 - Supplemental Information
06 - Wiring Information
07 - Wiring Information (frc)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP7406P322-60 | Element, Bake (Replaces: 74008371) | 10 |
|
Immediately | $ 173.66 | |||
| 1 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 2 | WP74004607 | Lens, Cover (Replaces: 74004607) | 10 |
|
$ 20.09 | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | 74010494 | Rack, Oven | 10 |
|
- | ||||
| 4 | 74010501 | Cover, Covection | 10 |
|
- | ||||
| 4 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 5 | WPW10184147 | Element, Broil (Replaces: 74008376) | 10 |
|
$ 171.96 | ||||
| 6 | 74008408 | Shield, Broil (30``) | 10 |
|
- | ||||
| 7 | WP67006908 | Screw, 3/4`` Hex Head (Replaces: 74010505) | 10 |
|
Immediately | $ 7.16 | |||
| 7 | W11772394 | Screw (Replaces: 7101P345-60) | 10 |
|
Immediately | $ 10.94 | |||
| 7 | 74003563 | Support, Broil Element | 10 |
|
- | ||||
| 8 | 7408P088-60 | Receptacle, Meat Probe (Replaces: 74011749) | 15 |
|
$ 75.57 | ||||
| 8 | Y703356 | Nut, Hex 3/8`` | 10 |
|
- | ||||
| 8 | 74009602 | Receptacle, Meat Probe | 10 |
|
- | ||||
| 9 | 74009408 | Button, Plug (thermostat) | 10 |
|
$ 5.87 | ||||
| 10 | 74010495 | Rack, Offset | 10 |
|
- | ||||
| 11 | 74004521 | Halogen Lamp Assy | 10 |
|
- | ||||
| 12 | WP74009925 | Bulb, Halogen (Replaces: 74004458) | 10 |
|
Immediately | $ 20.37 | |||
| 13 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 13 | 74009844 | Vent Box Assy. | 10 |
|
- | ||||
| 14 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 14 | WP74008369 | Sensor, Oven (Replaces: 74008369) | 10 |
|
Immediately | $ 119.65 | |||
| 15 | 74010485 | Pan, Broil (blue) | 10 |
|
- | ||||
| 16 | 74010486 | Insert, Broil Panel (blue) | 10 |
|
- | ||||
| 17 | WP7430P038-60 | Probe, Meat (Replaces: 74008469) | 10 |
|
$ 129.30 | ||||
| 17 | Y703356 | Nut, Hex 3/8`` | 10 |
|
- | ||||
| 18 | 74010502 | Convect, 2 Speed Assembly | 10 |
|
- | ||||
| 19 | 71001170 | Clip, Oven | 10 |
|
- | ||||
| 20 | 74009838 | Tube, Vent (30) | 10 |
|
- | ||||
| 20 | 74008447 | Tube, Vent | 10 |
|
$ 37.31 | ||||
| 21 | WP74003976 | Screw, Shoulder (Replaces: 74003976) | 10 |
|
$ 6.47 | ||||
| 21 | 74010520 | Plate, Non Convect (jade) | 10 |
|
- |
