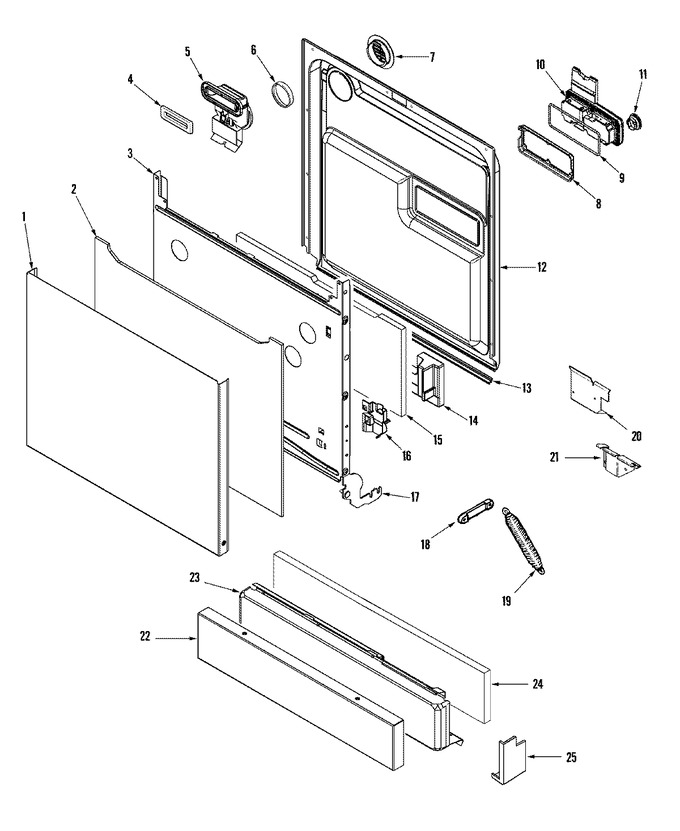

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 912619 | Screw, Steel | 10 |
|
$ 11.60 | ||||
| 1 | 99002952 | Name Plate (jade) | 10 |
|
- | ||||
| 1 | 99002950 | Panel, Decorator (stnls) | 10 |
|
- | ||||
| 2 | 99001415 | Filler, Front Panel | 10 |
|
- | ||||
| 3 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 3 | 99002176 | Door, Outer | 10 |
|
- | ||||
| 4 | 99002185 | Seal, Vent | 10 |
|
- | ||||
| 5 | 99002177 | Vent Assembly | 10 |
|
- | ||||
| 6 | 99002186 | Seal, Door Vent | 10 |
|
$ 7.89 | ||||
| 7 | 99002178 | Bezel, Door Vent | 10 |
|
- | ||||
| 8 | 99002465 | Bracket, Dispenser | 10 |
|
- | ||||
| 9 | 99002270 | Seal, Base | 10 |
|
$ 59.76 | ||||
| 10 | 99002180 | Detergent/rinse Aid Assembly | 10 |
|
- | ||||
| 10 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 11 | 99002269 | Knob, Rinse Aid | 10 |
|
- | ||||
| 12 | 99002157 | Door, Inner | 10 |
|
- | ||||
| 12 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 12 | 99002933 | Damper (4`` X 12``) | 10 |
|
- | ||||
| 12 | 99002693 | Damper (2`` X 20``) | 10 |
|
- | ||||
| 13 | 99002158 | Seal, Door (bottom) | 10 |
|
- | ||||
| 14 | 99002174 | Barrier, Condensation | 10 |
|
- | ||||
| 15 | 99002410 | Insulation, Door | 10 |
|
- | ||||
| 16 | 99002188 | Retainer, Wire | 10 |
|
- | ||||
| 17 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 17 | 99001898 | Hinge (lt) | 10 |
|
- | ||||
| 17 | 99001899 | Hinge (rt) | 10 |
|
- | ||||
| 18 | WP912653 | Link, Door Spring (Replaces: 912653) | 10 |
|
Immediately | $ 7.45 | |||
| 19 | WP912652 | Spring, Door (Replaces: 912652) | 10 |
|
Immediately | $ 9.00 | |||
| 20 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 20 | 912641 | Shield, Tub (blk) | 10 |
|
- | ||||
| 21 | 912642 | Cover, Wire (blk) | 10 |
|
- | ||||
| 21 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 22 | WP912618 | Screw (Replaces: 912618) | 10 |
|
$ 6.98 | ||||
| 22 | 99002951 | Cap, Access Panel (stnls) | 10 |
|
- | ||||
| 23 | 99001205 | Seal, Access Panel | 10 |
|
- | ||||
| 23 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 23 | 99002548 | Damper, Access Panel | 10 |
|
- | ||||
| 23 | 912636 | Panel, Access (blk) | 10 |
|
- | ||||
| 23 | 912525 | Filler, Access Panel | 10 |
|
- | ||||
| 24 | 99002413 | Insulation, Access Panel | 10 |
|
$ 36.56 | ||||
| 25 | WP6-912366 | Screw (Replaces: 912366) | 10 |
|
$ 7.29 | ||||
| 25 | Y912810 | Shield, Access Panel (lt) | 10 |
|
- | ||||
| 25 | Y912809 | Shield, Access Panel (rt) | 10 |
|
- |
