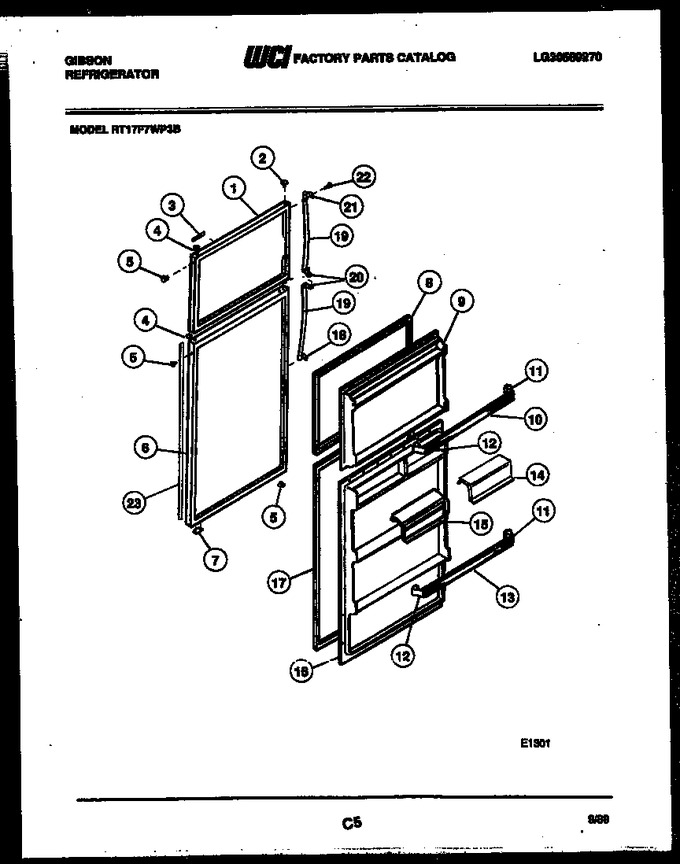

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G178571		Freezer Door-white		Appelez-nous	-
1	G178571-08		Freezer Door-avocado		Appelez-nous	-
1	G178571-09		Freezer Door-wheat		Appelez-nous	-
1	G178571-10		Freezer Door-coffee		Appelez-nous	-
1	G178571-11		Freezer Door-almond		Appelez-nous	-
2	G169332-01		Button Plug, White		Appelez-nous	-
2	G169332-08		Button Plug-avocado		Appelez-nous	-
2	G169332-09		Button Plug, Wheat		Appelez-nous	-
2	G169332-10		Button-plug, Coffee		Appelez-nous	-
2	G169332-11		Button Plug, Almond		Appelez-nous	-
3	G175117-02		Frame-nameplate		Appelez-nous	-
4	G183138		Bearing Hinge (8)		Appelez-nous	-
5	G162977-09		Button Plug-wheat		Appelez-nous	-
5	G162977-11		Button Plug-almond		Appelez-nous	-
5	G162977-10		Button Plug-coffee		Appelez-nous	-
5	G162977-08		Button Plug-avocado		Appelez-nous	-
5	G162977-01		Button Plug-white		Appelez-nous	-
6	G178574		Refrigerator Door-white		Appelez-nous	-
6	G178574-09		Refrigerator Door-wheat		Appelez-nous	-
6	G178574-08		Refrigerator Door-avocado		Appelez-nous	-
6	G178574-11		Refrigerator Door-almond		Appelez-nous	-
6	G178574-10		Refrigerator Door-coffee		Appelez-nous	-
7	G155072		Door Stop (2)		Appelez-nous	-
8	G186932-03		Gasket, Freezer Door		Appelez-nous	-
9	G184557-01		Inner Panel-freezer		Appelez-nous	-
10	G162887-15		Rack-door (2)		Appelez-nous	-
11	G152888-04		Support Rs (4)		Appelez-nous	-
12	G152887-04		Support Ls (4)		Appelez-nous	-
13	G162887-12		Rack-door (2)		Appelez-nous	-
14	G178500-17		Door - Dairy		Appelez-nous	-
15	G178501-10		Door-dairy		Appelez-nous	-
16	G184558-01		Inner Panel-refr		Appelez-nous	-
17	G186932-11		Gasket-refr Door		Appelez-nous	-
18	G179801		Handle End-bottom		Appelez-nous	-
19	G170495-24		Grip-handle (2)		Appelez-nous	-
20	G187329-01		Handle End (2)		Appelez-nous	-
21	G179800		Handle End-top		Appelez-nous	-
22	G185566		Screw		Appelez-nous	-
23	3204708		Trim-refr Door		Appelez-nous	-
16A	G162585		Screw		Appelez-nous	-
22A	G89643		Insulation-door (bulk) (non-illustrated)		Appelez-nous	-
3A	G188378-02		Label-nameplate-upper (non-illustrated)		Appelez-nous	-
3B	3019041		Label-nameplate Lower (non-illustrated)		Appelez-nous	-
3C	G153407-12		Tape-nameplate (non-illustrated)		Appelez-nous	-
7A	G185566		Screw		Appelez-nous	-
9A	G162585		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
