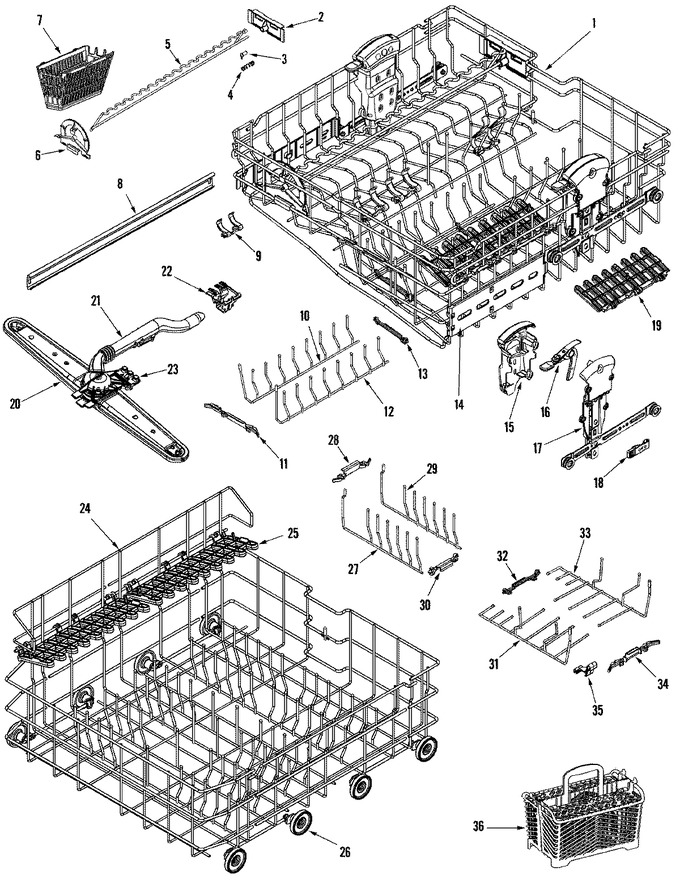

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003273 | Cap, Rack (blk) | 10 |
|
- | ||||
| 1 | 99003295 | Rack Assembly (upr) | 10 |
|
- | ||||
| 2 | 99003244 | Varilock (rear) | 10 |
|
- | ||||
| 3 | 99003245 | Cup, Varilock | 10 |
|
- | ||||
| 4 | 99002715 | Spring, Varilock | 10 |
|
- | ||||
| 5 | 99003246 | Support, Varilock | 10 |
|
- | ||||
| 6 | 99003247 | Varilock (frt) | 10 |
|
- | ||||
| 7 | 99003248 | Basket, Auxillary | 10 |
|
- | ||||
| 8 | 99003066 | Rail, Inner Slide | 10 |
|
- | ||||
| 8 | 99003069 | Cage, Ball Bearing | 10 |
|
$ 6.26 | ||||
| 8 | WP99003282 | Stop, Rail (dark Gray) (Replaces: 99003067) | 10 |
|
Immediately | $ 7.04 | |||
| 8 | 99003068 | Bearing, Ball | 10 |
|
$ 5.83 | ||||
| 9 | 99003249 | Clip, Cup | 10 |
|
- | ||||
| 10 | 99003255 | Tine, Fold Away (lt) | 10 |
|
- | ||||
| 11 | WP99003106 | Latch, Fold Away Tine (Replaces: 99003256) | 10 |
|
Immediately | $ 7.61 | |||
| 12 | 99003253 | Tine, Fold Away (rt) | 10 |
|
- | ||||
| 13 | 99003254 | Pivot, Fold Away Tine | 10 |
|
- | ||||
| 14 | 99003250 | Guard, Rack (high Side) | 10 |
|
- | ||||
| 14 | 99003251 | Guard, Rack (low Side) | 10 |
|
- | ||||
| 15 | 99003277 | Cover, Rack Adjuster | 10 |
|
- | ||||
| 16 | 99003276 | Lever, Rack Adjuster | 10 |
|
- | ||||
| 17 | 99003010 | Screw (t15) 8-18 X .500 | 10 |
|
- | ||||
| 17 | 99003274 | Rack Adjuster Assy (lt) | 10 |
|
- | ||||
| 17 | 99003275 | Rack Adjuster Assy (rt) | 10 |
|
- | ||||
| 18 | 99003278 | Stabilizer, Rack Adjuster | 10 |
|
- | ||||
| 19 | 99003252 | Shelf, Cup (upr) | 10 |
|
- | ||||
| 20 | 99003070 | Arm, Wash (upr-dark Gray) | 10 |
|
$ 32.43 | ||||
| 21 | 99003142 | Wash Manifold Assy (upr) | 10 |
|
- | ||||
| 22 | 99003071 | Clip, Upr Wash Manifold (back) | 10 |
|
$ 19.68 | ||||
| 23 | 99003072 | Clip, Upr Wash Manifold (frt) | 10 |
|
$ 5.25 | ||||
| 24 | 99003273 | Cap, Rack (blk) | 10 |
|
- | ||||
| 24 | 99003257 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 25 | 99003258 | Shelf, Cup (lwr) | 10 |
|
- | ||||
| 26 | WP99003149 | Wheel Assembly (lwr) (Replaces: 99003294) | 10 |
|
Immediately | $ 11.48 | |||
| 27 | 99003265 | Tine, Fold Away (frt) | 10 |
|
- | ||||
| 28 | 99003267 | Latch, Fold Away Tine | 10 |
|
- | ||||
| 29 | 99003264 | Tine, Fold Away (rear) | 10 |
|
- | ||||
| 30 | 99003266 | Pivot, Fold Away Tine | 10 |
|
- | ||||
| 31 | 99003259 | Tine, Convertible (frt) | 10 |
|
- | ||||
| 32 | WP99003003 | Pivot, Convertible Tine (Replaces: 99003260) | 10 |
|
Immediately | $ 7.22 | |||
| 33 | 99003261 | Tine, Convertible (rear) | 10 |
|
- | ||||
| 34 | 99003262 | Latch, Convertible Tine | 10 |
|
- | ||||
| 35 | 99003263 | Latch, Secondary Conv. Tine | 10 |
|
- | ||||
| 36 | WP6-918873 | Basket, Silverware (half) (Replaces: 99003269) | 10 |
|
Immediately | $ 54.28 | |||
| 36 | WP6-918873 | Basket, Silverware (split/fit) (Replaces: 99003268) | 10 |
|
Immediately | $ 54.28 | |||
| 36 | 99003270 | Cover, Silverware Basket | 10 |
|
- |
