SELECT A DIAGRAM

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts

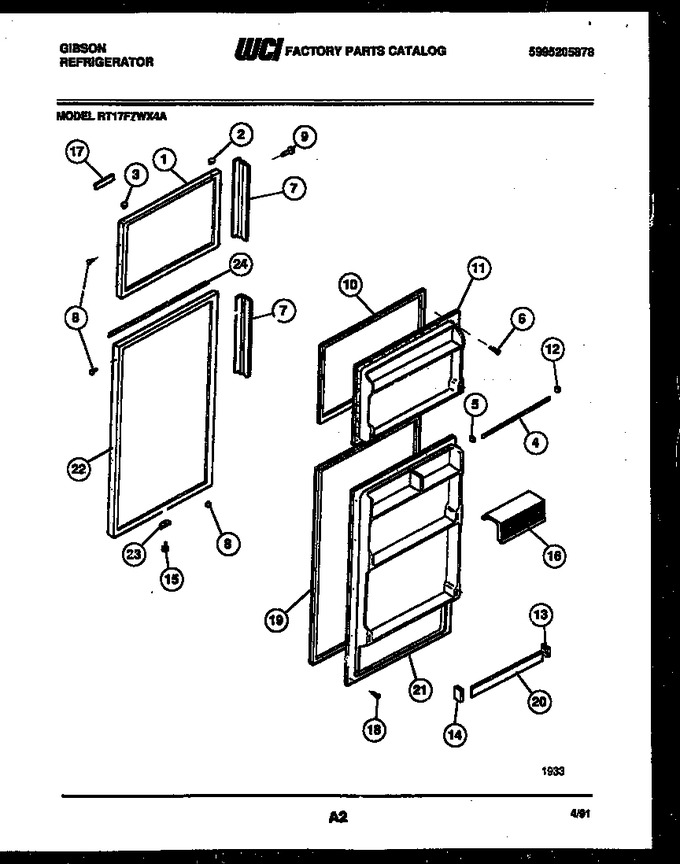

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916893		Panel-freezer-wheat		Appelez-nous	-
1	5303916894		Panel-freezer-almond		Appelez-nous	-
1	5303916892		Panel-freezer-white		Appelez-nous	-
2	5308000134		Plug Button, White (2)				$ 5.62
2	5303001308		Plug Button, Almd (2)		Appelez-nous	-
2	5308000176		Plug Button - Wheat (2)		Appelez-nous	-
3	3206153		Bearing-hinge (8)		Appelez-nous	-
4	5303272497		Rack-frzr (2)		Appelez-nous	-
5	5303272499		Support-rack-lh		Appelez-nous	-
6	5308002748		Screw		Appelez-nous	-
7	5303272556		Handle-door (2)		Appelez-nous	-
8	240494001		Plug-button, White   (Replaces: 5308000090)			Immediately	$ 18.20
8	5308000180		Plug Button - Wheat		Appelez-nous	-
8	5308000181		Plug Button-almd		Appelez-nous	-
9	5308011745		Screw				$ 10.38
10	5303001399		Gasket-freezer		Appelez-nous	-
11	5303272496		Inner Panel-freezer		Appelez-nous	-
12	5303272498		Support-rack-rh		Appelez-nous	-
13	5303272503		Support-rack-rh (2)		Appelez-nous	-
14	5303272504		Support-rack-lh (2)		Appelez-nous	-
15	5308011745		Screw				$ 10.38
16	5303272510		Door-dairy		Appelez-nous	-
17	5303272505		Nameplate Assy		Appelez-nous	-
18	5308002748		Screw		Appelez-nous	-
19	218730603		Gasket-refrigerator   (Replaces: 5303001517)				$ 62.07
20	5303272502		Rack-refrigerator (2)		Appelez-nous	-
21	5303272501		Inner Panel-refrigerator		Appelez-nous	-
22	5303916890		Panel-refr-wheat		Appelez-nous	-
22	5303916889		Panel-refr-white		Appelez-nous	-
22	5303916891		Panel-refr-almond		Appelez-nous	-
23	5308000255		Door Stop (2)				$ 42.20
24	5318755101		Trim		Appelez-nous	-
*47582	5303007739		Insulation - Fiberglass - Bulk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
