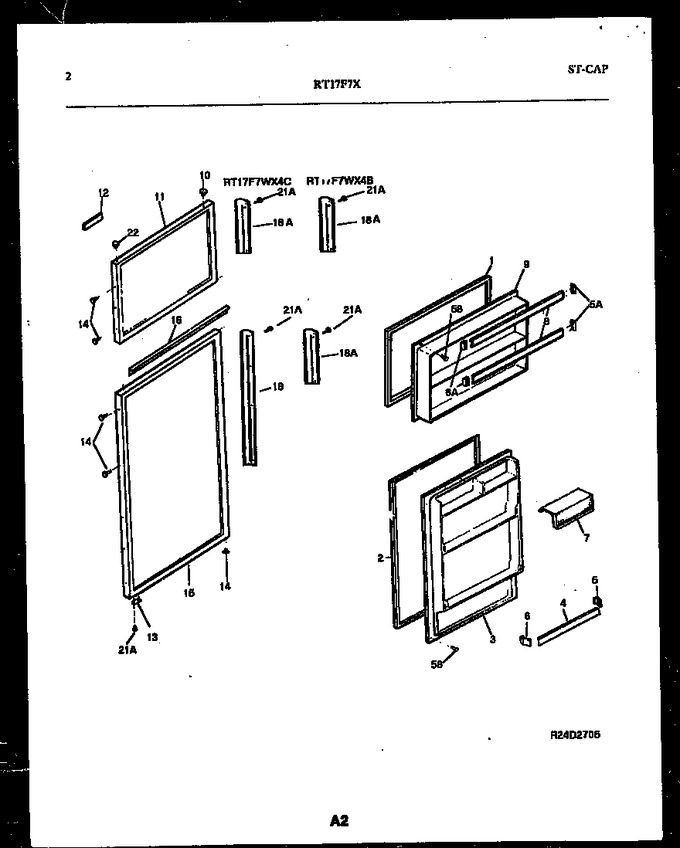

02 - Door Parts


03 - Cabinet Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Shelves And Supports


07 - System And Automatic Defrost Parts


08 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001399		Gasket-frzr Door, Magnetic		Appelez-nous	-
2	218730603		Gasket-refr Door, Magnetic   (Replaces: 5303001517)				$ 62.07
3	5303272501		Panel-inner Door, Refr		Appelez-nous	-
4	5303272502		Rack-door, (2)		Appelez-nous	-
5	5303272503		Support-door Rack, Rh, (2)		Appelez-nous	-
6	5303272504		Support-door Rack, Lh, (2)		Appelez-nous	-
7	5303272510		Door-dairy		Appelez-nous	-
8	5303272497		Rack-door, (2)		Appelez-nous	-
9	5303272496		Panel-inner Door, Frzr		Appelez-nous	-
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303916892		Panel-frzr Door, White		Appelez-nous	-
12	5303272505		Nameplate Assy		Appelez-nous	-
13	5308000255		Door Stop, Refr/frzr				$ 42.20
14	240494001		Plug-button, White, Handle/dr Stop   (Replaces: 5308000090)			Immediately	$ 18.20
15	3916600		Panel-refr Door, White		Appelez-nous	-
16	5318755101		Trim-door		Appelez-nous	-
18	5303281406		Handle-door, 43.94`` Long, Traditional Oak		Appelez-nous	-
22	3206153		Bearing-hinge (8)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*52023	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
18A	5303281405		Handle-door, 16.75`` Long, Traditional Oak		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	5303272498		Support-door Rack, Rh, (2)		Appelez-nous	-
6A	5303272499		Support-door Rack, Lh, (2)		Appelez-nous	-
