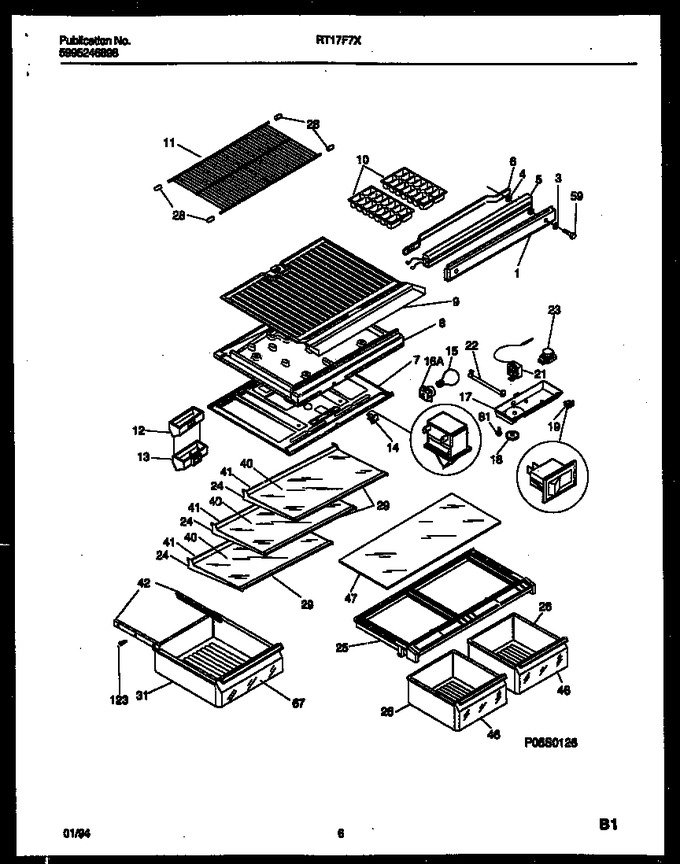

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206121 | Mullion, White |
|
- | |||||
| 3 | 5303206754 | Washer No. 10 Flat, 7/32 X 7/16 Od, Steel |
|
- | |||||
| 4 | 215882100 | Spacer-mullion Mtg, Stainless Steel |
|
- | |||||
| 5 | 3206120 | Heater-mullion |
|
- | |||||
| 6 | 215170801 | Strap-mullion Mtg |
|
- | |||||
| 7 | 3206185 | Top Panel - Refr |
|
- | |||||
| 8 | 3206186 | Divider, Styrofoam |
|
- | |||||
| 9 | 3206187 | Bottom Panel - Frzr |
|
- | |||||
| 10 | 5303001324 | Tray-ice, Plastic, (2) |
|
- | |||||
| 11 | 5303283107 | Shelf-freezer |
|
$ 155.82 | |||||
| 12 | 5308014667 | Deflector-air, W/seal |
|
- | |||||
| 13 | 5303001448 | Cover-air Deflector |
|
- | |||||
| 14 | 5309918806 | Switch-light/lamp |
|
Immediately | $ 21.97 | ||||
| 15 | 5303001179 | Light Bulb/lamp,40 W |
|
- | |||||
| 17 | 5303272507 | Box-control |
|
- | |||||
| 18 | 5303209251 | Knob-temp Control |
|
- | |||||
| 19 | 5303207249 | Switch-energy Saver |
|
- | |||||
| 21 | 5303018894 | Control-temperature |
|
- | |||||
| 22 | 3018891 | Housing, Cont Cap Tube |
|
- | |||||
| 23 | 215846602 | Timer (Replaces: 215267800) |
|
Immediately | $ 28.20 | ||||
| 24 | 5303211193 | Frame-full Shelf, Cantilever, (2) |
|
- | |||||
| 24 | 5303272553 | Frame-meat Kpr Shlf, Cantilever |
|
- | |||||
| 25 | 3206183 | Cover-crisper Pan, With Beam, Less Insert |
|
- | |||||
| 26 | 3206180 | Pan - Crisper |
|
$ 155.70 | |||||
| 28 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 29 | 5303300398 | Trim-full Shelf, Front |
|
- | |||||
| 31 | 3206351 | Pan-meat |
|
- | |||||
| 40 | 5303272554 | Glass-shelf, Full Shelf, (3) |
|
- | |||||
| 41 | 5303272552 | Trim-full Shelf, Snap-on, Rear, (3) |
|
- | |||||
| 42 | 3206380 | Hanger-meat Pan, Rh |
|
- | |||||
| 46 | 5303299839 | Front-crisper Pan, Rh |
|
- | |||||
| 46 | 5303299840 | Front-crisper Pan, Lh |
|
- | |||||
| 47 | 5303271945 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 67 | 5303299846 | Front-meat Pan |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 123 | 08014528 | Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P |
|
$ 4.31 | |||||
| *67735 | 5303211351 | Lock-shelf Trim, Rear |
|
- | |||||
| *67735 | 5300170910 | Clip-cantilevr Shlf |
|
$ 2.60 | |||||
| 12A | 5303001449 | Seal-air Deflector (non-illustrated) |
|
$ 2.12 | |||||
| 13A | 5303200590 | Extension, Air Deflector, With Insulation (non-illustrated) |
|
- | |||||
| 16A | 218906802 | Socket-light/lamp (Replaces: 5308000815) |
|
$ 17.72 | |||||
| 21A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 23A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 29A | 5303209274 | Retainer-glass (non-illustrated) |
|
- | |||||
| 42A | 3206379 | Hanger-meat Pan, Lh (non-illustrated) |
|
- | |||||
| 7A | 5303001380 | Screw |
|
- | |||||
| 8A | 3018900 | Harness-wiring, Control/divider (non-illustrated) |
|
- | |||||
| 8B | 3205266 | Protector-edge (non-illustrated) |
|
$ 80.09 |
