21 - Door Parts
22 - Door Parts
23 - Cabinet Parts
24 - Cabinet Parts

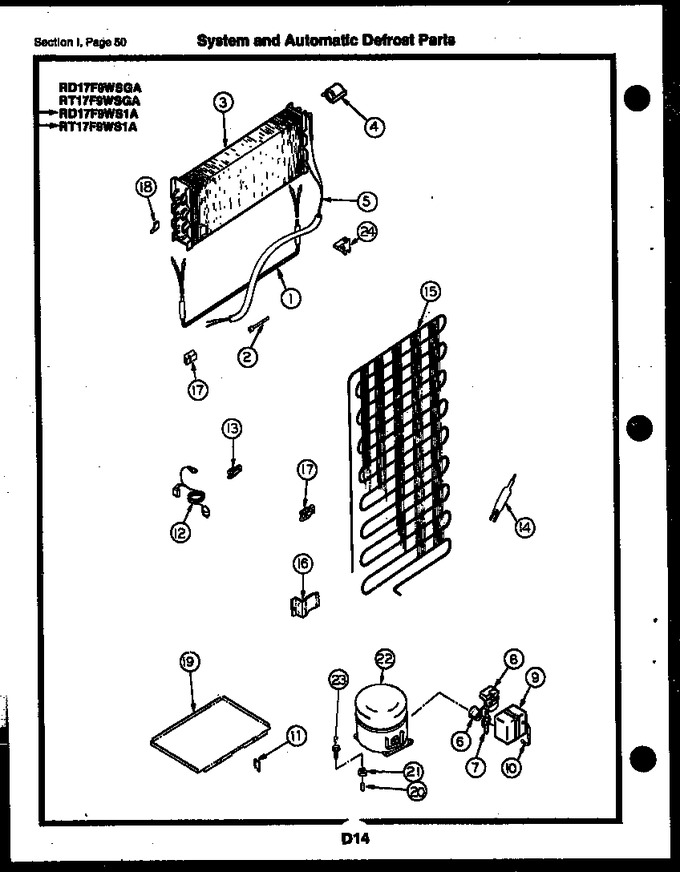

25 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G178425-01 | Heater - Defrost (non-illustrated) |
|
- | |||||
| 2 | G165546 | Clamp - Heater (2) |
|
- | |||||
| 3 | G162506 | Evaporator (non-illustrated) |
|
- | |||||
| 4 | G162690-01 | Thermostat - Defrost (non-illustrated) |
|
- | |||||
| 5 | G162524 | Heat Exchanger (non-illustrated) |
|
- | |||||
| 6 | G176001 | Overload (non-illustrated) |
|
- | |||||
| 7 | G166053 | Clip, Overload |
|
- | |||||
| 8 | G150618-32 | Relay (non-illustrated) |
|
- | |||||
| 9 | G169333 | Cover-terminal |
|
- | |||||
| 10 | G166057 | Strap, Bale |
|
- | |||||
| 11 | G166301 | Bracket, Drain Tube |
|
- | |||||
| 12 | G162549-01 | Cord, Service |
|
- | |||||
| 13 | G27669 | Clamp - Cable (2) |
|
- | |||||
| 14 | G177375 | Drier (non-illustrated) |
|
- | |||||
| 15 | G175408 | Condenser (non-illustrated) |
|
- | |||||
| 16 | G164637 | Bracket, Cond. Mtg. (4) |
|
- | |||||
| 17 | G163099 | Block, Evaporator, Rh |
|
- | |||||
| 18 | G185277 | Plug - Evap. Insul. L.h. |
|
- | |||||
| 19 | G175411 | Defrost Plate (non-illustrated) |
|
- | |||||
| 20 | G154588 | Sleeve - Compressor Mtg. (3) |
|
- | |||||
| 21 | G177617 | Grommet, Compressor Mtg. (4) |
|
- | |||||
| 22 | G175410 | Compressor Package (non-illustrated) |
|
- | |||||
| 23 | G183344 | Screw - 1/4-20 Comp. Mtg. (3) |
|
- | |||||
| 24 | G185298 | Block, Evaporator, Lh |
|
- | |||||
| *21952 | G176210 | Hot Tube Repair Kit |
|
- | |||||
| 10A | G144049 | Screw |
|
- | |||||
| 13A | G162585 | Screw |
|
- | |||||
| 16A | G160578 | Screw |
|
- |
