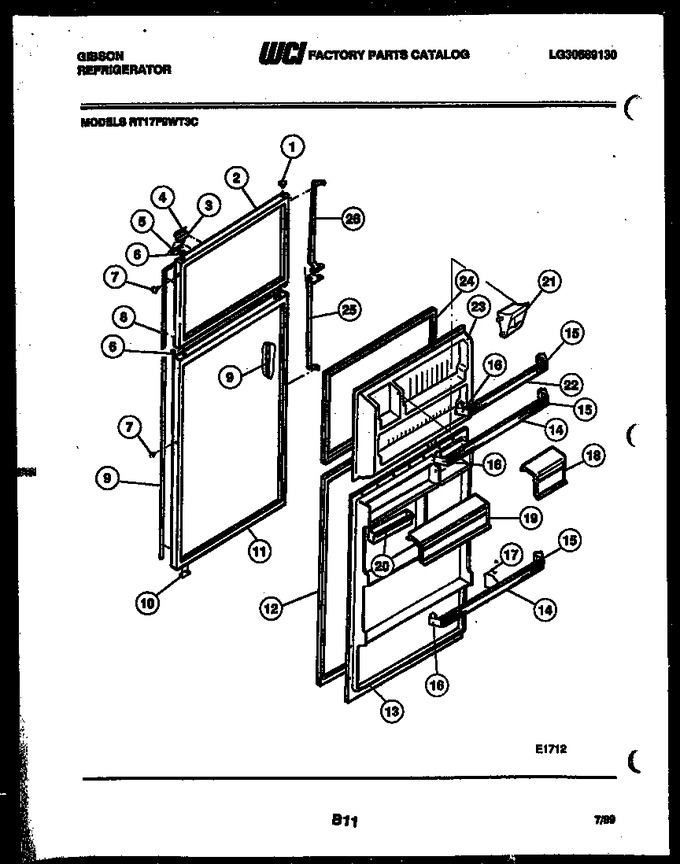

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G169332-08 | Button Plug-avocado |
|
- | |||||
| 1 | G169332-10 | Button-plug, Coffee |
|
- | |||||
| 1 | G169332-11 | Button Plug, Almond |
|
- | |||||
| 1 | G169332-01 | Button Plug, White |
|
- | |||||
| 1 | G169332-09 | Button Plug, Wheat |
|
- | |||||
| 2 | G189018-10 | Freezer Door-coffee |
|
- | |||||
| 2 | G189018 | Freezer Door-white |
|
- | |||||
| 2 | G189018-08 | Freezer Door-avoc |
|
- | |||||
| 2 | G189018-09 | Freezer Door-wheat |
|
- | |||||
| 2 | G189018-11 | Freezer Door-almond |
|
- | |||||
| 3 | G175117-02 | Frame-nameplate |
|
- | |||||
| 4 | G188378-02 | Label-nameplate Upr |
|
- | |||||
| 5 | 3019041 | Label-nameplate Lwr |
|
- | |||||
| 6 | G183138 | Bearing Hinge (8) |
|
- | |||||
| 7 | G162977-08 | Button Plug-avocado |
|
- | |||||
| 7 | G162977-09 | Button Plug-wheat |
|
- | |||||
| 7 | G162977-10 | Button Plug-coffee |
|
- | |||||
| 7 | G162977-01 | Button Plug-white |
|
- | |||||
| 7 | G162977-11 | Button Plug-almond |
|
- | |||||
| 8 | G167404-01 | Trim-frzr Door |
|
- | |||||
| 9 | G167150-11 | Trim-refr Door (2) |
|
- | |||||
| 10 | G155072 | Door Stop-refr/frzr (2) |
|
- | |||||
| 11 | G189020-09 | Refr Door-wheat |
|
- | |||||
| 11 | G189020-10 | Refr Door-coffee |
|
- | |||||
| 11 | G189020-08 | Refr Door-avocado |
|
- | |||||
| 11 | G189020 | Refr Door-white |
|
- | |||||
| 11 | G189020-11 | Refr Door-almond |
|
- | |||||
| 12 | G186932-11 | Gasket-refr Door |
|
- | |||||
| 13 | G187494-02 | Panel-refr Inner Door |
|
- | |||||
| 14 | 3201071 | Rack-refr/frzr (3) |
|
- | |||||
| 15 | G178287-02 | Support-rs (4) |
|
- | |||||
| 16 | G178284-02 | Support-ls (4) |
|
- | |||||
| 17 | 3017719 | Retainer-bottle Snugger |
|
- | |||||
| 18 | G187490-02 | Dairy Door-small |
|
- | |||||
| 19 | G187460-02 | Dairy Door-large |
|
- | |||||
| 20 | G187461-01 | Utility Bin |
|
- | |||||
| 21 | 3202032 | Dispenser-juice Can |
|
- | |||||
| 22 | 3201070 | Rack-frzr Upper |
|
- | |||||
| 23 | 3204553 | Panel-freezer Inner Door |
|
- | |||||
| 24 | G186932-03 | Gasket-frzr Door |
|
- | |||||
| 25 | G168505-01 | Handle-refr Door |
|
- | |||||
| 26 | G168506-01 | Handle-frzr Door |
|
- | |||||
| *17493 | G185566 | Screw |
|
- | |||||
| *17493 | G89643 | Insulation-door (bulk) |
|
- | |||||
| 10A | G185566 | Screw |
|
- | |||||
| 13A | G162585 | Screw |
|
- | |||||
| 23A | G162585 | Screw |
|
- | |||||
| 3A | G153407-12 | Tape-frame Mtg (non-illustrated) |
|
- |
