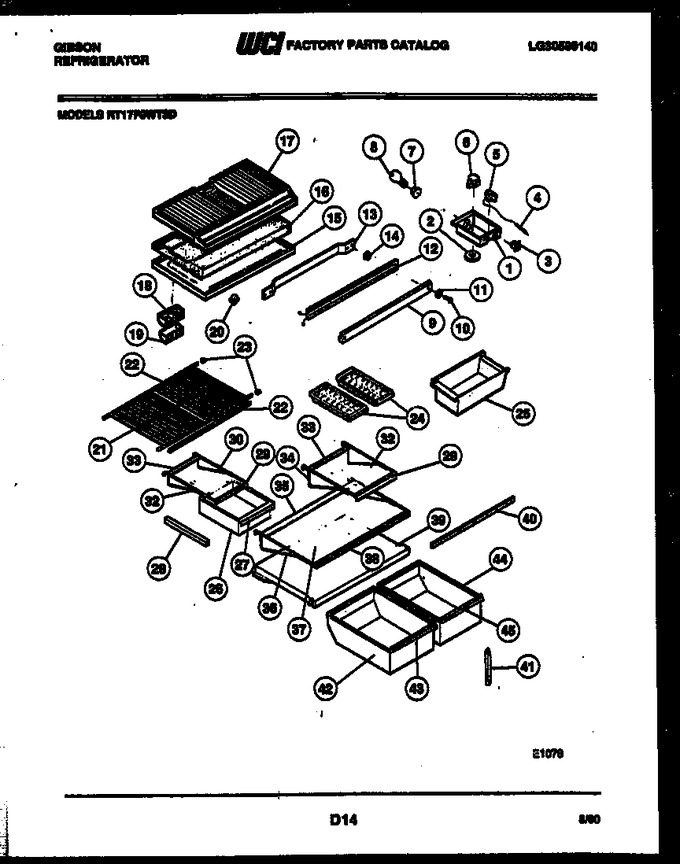

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5317672203 | Control Box |
|
- | |||||
| 2 | 5308010011 | Knob-temp Control |
|
- | |||||
| 3 | 5303001670 | Switch-energy Saver |
|
- | |||||
| 4 | 5308037932 | Sleeve-plastic Tube |
|
- | |||||
| 5 | 5303200810 | Control-temperature |
|
$ 126.87 | |||||
| 6 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 7 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 8 | 5303001179 | Light Bulb |
|
- | |||||
| 9 | 3916133 | Mullion, Coffee |
|
- | |||||
| 9 | 5303200465 | Mullion, White |
|
- | |||||
| 9 | 3916135 | Mullion-avocado |
|
- | |||||
| 9 | 5303916134 | Mullion, Almond |
|
- | |||||
| 9 | 3916132 | Mullion, Wheat |
|
- | |||||
| 10 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 11 | 5303206754 | Washer-no. 10 Steel (2) |
|
- | |||||
| 12 | 5308017408 | Heater-mullion |
|
- | |||||
| 13 | 5308003604 | Strap, Mullion Mtg |
|
- | |||||
| 14 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 15 | 5303016378 | Top Panel-refr |
|
- | |||||
| 16 | 5308009750 | Divider, Styrofoam |
|
- | |||||
| 17 | 5303001537 | Bottom Panel-frzr |
|
- | |||||
| 18 | 5308000071 | Air Deflector |
|
- | |||||
| 19 | 5303001546 | Cover, Deflector |
|
- | |||||
| 20 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 21 | 5303211199 | Shelf-freezer |
|
- | |||||
| 22 | 5303211200 | Trim-frzr Shelf |
|
- | |||||
| 23 | 3201150 | End Cap (2) |
|
$ 4.57 | |||||
| 24 | 5303001324 | Tray-ice (2) |
|
- | |||||
| 25 | G163022-03 | Ice Container |
|
- | |||||
| 26 | G176918-12 | Meat Pan |
|
- | |||||
| 27 | G177343-10 | Trim - Meat Pan |
|
- | |||||
| 28 | 5303210016 | Hanger-pan Ls |
|
$ 134.09 | |||||
| 29 | 5303209133 | Trim-shelf Front (3) |
|
- | |||||
| 30 | 5303211198 | Frame-meat Pan Shelf |
|
- | |||||
| 32 | 5303211197 | Glass-half Shelf (3) |
|
- | |||||
| 33 | 5303211195 | Trim-shelf Rear (3) |
|
- | |||||
| 34 | 5303211196 | Frame-half Shelf (2) |
|
- | |||||
| 35 | 5303211192 | Trim-shelf Rear |
|
- | |||||
| 36 | 5303211193 | Frame-full Shelf |
|
- | |||||
| 37 | 5303211194 | Glass-full Shelf |
|
- | |||||
| 38 | 5303209119 | Trim-shelf Front |
|
- | |||||
| 39 | 5308009999 | Cover-pan |
|
- | |||||
| 40 | 5308009647 | Gasket-pan Cover |
|
- | |||||
| 41 | 5303205987 | Support-pan Cover |
|
$ 48.41 | |||||
| 42 | G490015-46 | Pan-fruit Ls |
|
- | |||||
| 43 | 3201093 | Trim-pan Ls |
|
- | |||||
| 44 | 3201094 | Pan-vegetable Rs |
|
- | |||||
| 45 | 3201092 | Trim-pan Rs |
|
- | |||||
| 15A | 5303001380 | Screw |
|
- | |||||
| 16A | 3001383 | Wiring Harn-divider (non-illustrated) |
|
- | |||||
| 17A | 08000185 | Tape, Foam, Adhesive |
|
- | |||||
| 1A | G188379-02 | Label-control Box (non-illustrated) |
|
- | |||||
| 1B | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 28A | 5303210017 | Hanger-pan Rs (non-illustrated) |
|
$ 107.89 | |||||
| 28B | 08014528 | Screw-hanger Mtg (2) (non-illustrated) |
|
$ 4.31 | |||||
| 5A | 5303001260 | Screw |
|
$ 6.73 | |||||
| 6A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 |
