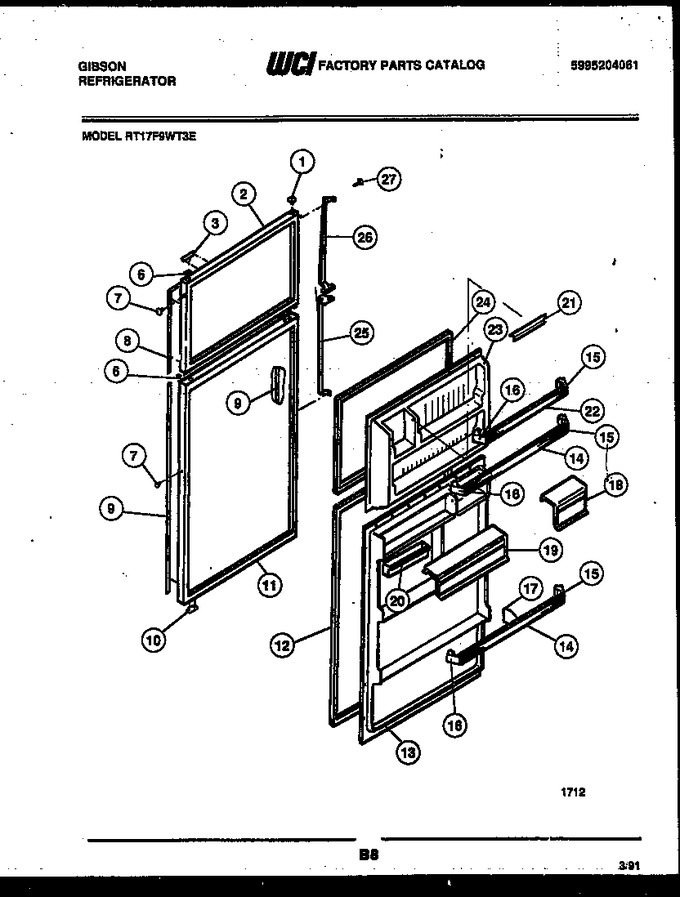

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308000134 | Plug-white |
|
$ 5.62 | |||||
| 1 | 5308000175 | Plug-avocado |
|
- | |||||
| 1 | 5308000176 | Plug-wheat |
|
- | |||||
| 1 | 5303001657 | Plug-coffee |
|
- | |||||
| 1 | 5303001308 | Plug-almond |
|
- | |||||
| 2 | G189018-10 | Freezer Door-coffee |
|
- | |||||
| 2 | G189018-09 | Freezer Door-wheat |
|
- | |||||
| 2 | G189018-08 | Freezer Door-avoc |
|
- | |||||
| 2 | G189018 | Freezer Door-white |
|
- | |||||
| 2 | G189018-11 | Freezer Door-almond |
|
- | |||||
| 3 | 5317511702 | Frame - Nameplate |
|
- | |||||
| 6 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 7 | 5308000179 | Plug-avocado (8) |
|
- | |||||
| 7 | 5308000180 | Plug-wheat (8) |
|
- | |||||
| 7 | 5308000178 | Plug-coffee (8) |
|
- | |||||
| 7 | 240494001 | Plug-white (8) (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 7 | 5308000181 | Plug-almond (8) |
|
- | |||||
| 8 | G167404-01 | Trim-frzr Door |
|
- | |||||
| 9 | G167150-11 | Trim-refr Door (2) |
|
- | |||||
| 10 | 5303212491 | Door Stop, Refr |
|
- | |||||
| 11 | G189020-11 | Refr Door-almond |
|
- | |||||
| 11 | G189020-08 | Refr Door-avocado |
|
- | |||||
| 11 | G189020-09 | Refr Door-wheat |
|
- | |||||
| 11 | G189020-10 | Refr Door-coffee |
|
- | |||||
| 11 | G189020 | Refr Door-white |
|
- | |||||
| 12 | 218730603 | Gasket-refr Door (Replaces: 5303001517) |
|
$ 62.07 | |||||
| 13 | G187494-02 | Panel-refr Inner Door |
|
- | |||||
| 14 | 5303201071 | Rack-refr/frzr (3) |
|
- | |||||
| 15 | 5317828702 | Support - Rh (4) |
|
- | |||||
| 16 | 5317828402 | Support - Lh (4) |
|
- | |||||
| 17 | 3017719 | Retainer-bottle Snugger |
|
- | |||||
| 18 | 5318749002 | Dairy Door-small |
|
- | |||||
| 19 | 5303270562 | Dairy Door-large |
|
- | |||||
| 20 | 5303270563 | Utility Bin |
|
- | |||||
| 21 | 3202032 | Dispenser-juice Can |
|
- | |||||
| 22 | 5303201070 | Rack-frzr Upper |
|
- | |||||
| 23 | 3204553 | Panel-freezer Inner Door |
|
- | |||||
| 24 | 5303001399 | Gasket - Frzr Door |
|
- | |||||
| 25 | 5316850501 | Handle-refr Door |
|
- | |||||
| 26 | 5316850601 | Handle-frzr Door |
|
- | |||||
| 27 | 5308011745 | Screw |
|
$ 10.38 | |||||
| *36894 | 5303007739 | Insulation-door (bulk) |
|
- | |||||
| 10A | 5308000255 | Door Stop-frzr |
|
$ 42.20 | |||||
| 10B | 5308011745 | Screw |
|
$ 10.38 | |||||
| 13A | 5308002748 | Screw |
|
- | |||||
| 23A | 5308002748 | Screw |
|
- | |||||
| 3A | 5315340712 | Tape-frame Mtg (non-illustrated) |
|
- | |||||
| 3B | 5318337802 | Label-nameplate Upr (non-illustrated) |
|
- | |||||
| 3C | 3019041 | Label-nameplate Lwr (non-illustrated) |
|
- |
