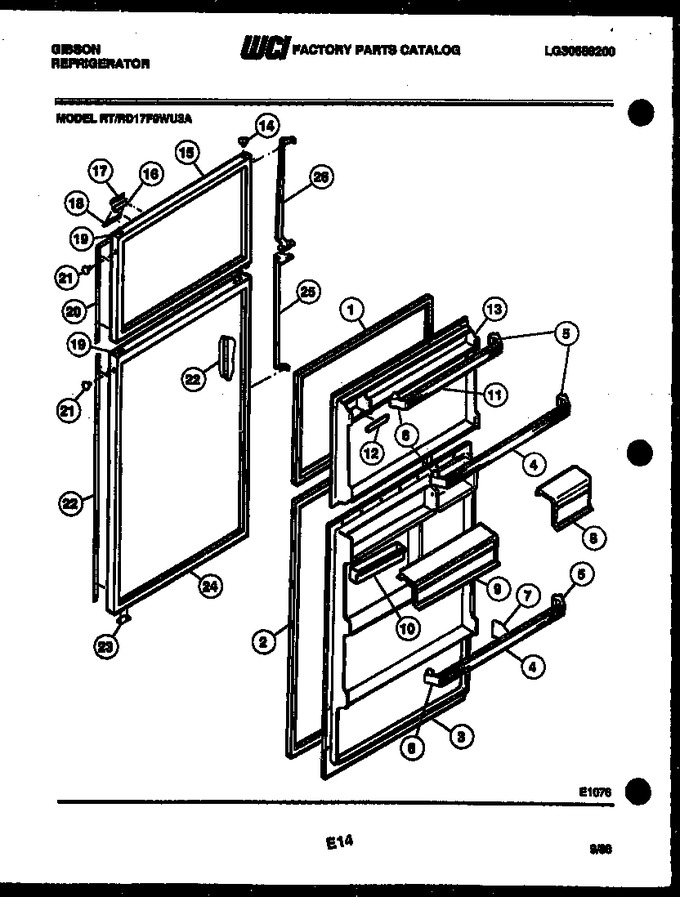

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G186932-03		Gasket-freezer		Appelez-nous	-
2	G186932-11		Gasket-refr		Appelez-nous	-
3	G187494-02		Inner Panel-refr		Appelez-nous	-
4	3201071		Rack-door (3)		Appelez-nous	-
5	G178287-02		Support Rs (3)		Appelez-nous	-
6	G178284-02		Support Ls (3)		Appelez-nous	-
7	3017719		Snugger-door Rack		Appelez-nous	-
8	G187490-02		Dairy Door-small		Appelez-nous	-
9	G187460-02		Dairy Door-large		Appelez-nous	-
10	G187461-01		Utility Bin		Appelez-nous	-
11	3201070		Rack-freezer Upper		Appelez-nous	-
12	G187492-02		Rack, Juice Can		Appelez-nous	-
13	G187511-02		Inner Panel-frzr		Appelez-nous	-
14	G169332-01		Button Plug, White		Appelez-nous	-
14	G169332-08		Button Plug-avocado		Appelez-nous	-
14	G169332-09		Button Plug, Wheat		Appelez-nous	-
14	G169332-11		Button Plug, Almond		Appelez-nous	-
14	G169332-10		Button-plug, Coffee		Appelez-nous	-
15	G189018-10		Door Panel-coffee		Appelez-nous	-
15	G189018		Door Panel-white		Appelez-nous	-
15	G189018-08		Door Panel-avocado		Appelez-nous	-
15	G189018-11		Door Panel-almond		Appelez-nous	-
15	G189018-09		Door Panel-wheat		Appelez-nous	-
16	G175117-02		Nameplate-frame		Appelez-nous	-
17	G188378-02		Label-nameplate Upr		Appelez-nous	-
18	3019041		Label-nameplate Lwr		Appelez-nous	-
19	G183138		Bearing Hinge (8)		Appelez-nous	-
20	G167404-01		Trim-frzr Door		Appelez-nous	-
21	G162977-01		Button Plug-white		Appelez-nous	-
21	G162977-08		Button Plug-avocado		Appelez-nous	-
21	G162977-09		Button Plug-wheat		Appelez-nous	-
21	G162977-11		Button Plug-almond		Appelez-nous	-
21	G162977-10		Button Plug-coffee		Appelez-nous	-
22	G167150-11		Trim-refr Door (2)		Appelez-nous	-
23	G155072		Door Stop		Appelez-nous	-
24	G189020-09		Door Panel-wheat		Appelez-nous	-
24	G189020-11		Door Panel-almond		Appelez-nous	-
24	G189020-10		Door Panel-coffee		Appelez-nous	-
24	G189020		Door Panel-white		Appelez-nous	-
24	G189020-08		Door Panel-avocado		Appelez-nous	-
25	G168505-01		Handle-refr Door		Appelez-nous	-
*81779	G185566		Screw		Appelez-nous	-
*81780	G89643		Insulation-door (bulk)		Appelez-nous	-
13A	G162585		Screw		Appelez-nous	-
16A	G153407-12		Tape-nameplate Mtg (non-illustrated)		Appelez-nous	-
23A	G185566		Screw		Appelez-nous	-
25A	G168506-01		Handle-frzr Door		Appelez-nous	-
3A	G162585		Screw		Appelez-nous	-
