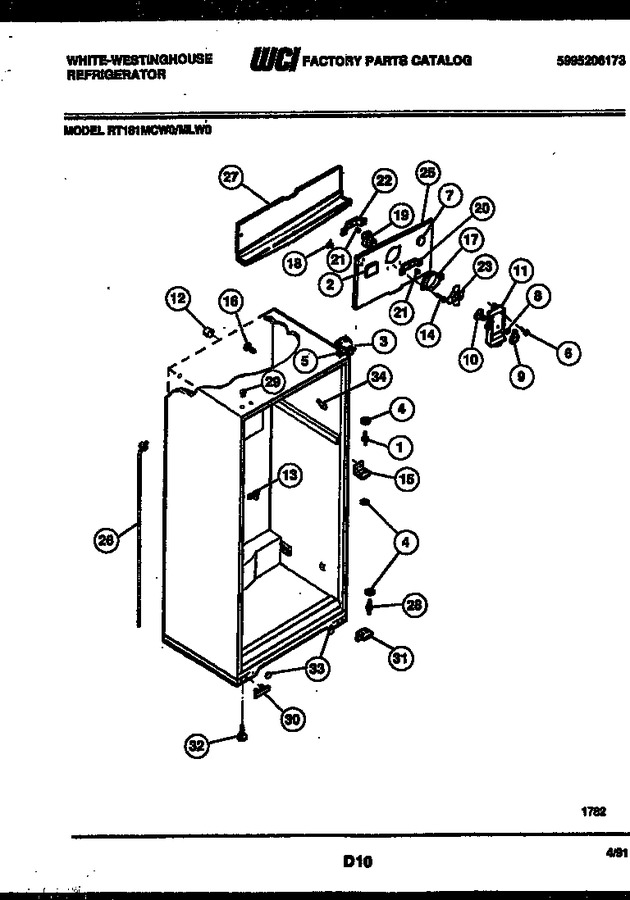

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5308000184		Pin-center Hinge				$ 8.87
2	5308013636		Button - Decorative Plug		Appelez-nous	-
3	3206100		Bracket-upper Hinge		Appelez-nous	-
4	530800186		Washer-nylon (3)		Appelez-nous	-
5	5303001037		Shim - Upper Hinge				$ 12.39
6	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
7	5303208309		Plug, Short Test Hole				$ 45.50
8	5303001028		Nut, Push		Appelez-nous	-
9	5308000081		Knob - Damper Control				$ 36.02
10	3206110		Damper-fan Cover				$ 53.08
11	3206108		Cover-fan		Appelez-nous	-
12	5303001198		Tube, Rubber (2)		Appelez-nous	-
13	5308000056		Spout-drain Tube				$ 11.66
14	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
15	5303001369		Bracket- Center Hinge		Appelez-nous	-
16	5308000097		Support-coil Cover		Appelez-nous	-
17	5308000124		Ring-fan Orifice				$ 53.58
18	5308000107		Bracket-connector				$ 33.23
19	5300158289		Motor-blower			Immediately	$ 149.94
20	5303205118		Bracket - Front		Appelez-nous	-
21	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
22	5303205119		Bracket, Rear		Appelez-nous	-
23	5308000010		Fan			Immediately	$ 49.03
25	3206451		Cover-coil		Appelez-nous	-
26	5303269702		Tube-drain				$ 104.63
27	3206444		Trough-drain		Appelez-nous	-
28	5303001321		Pin-lower Hinge				$ 17.25
29	5303001388		Plug - Hinge - White				$ 2.60
30	3206135		Cover-lower Hinge Screw		Appelez-nous	-
31	3206136		Bracket-lower Hinge		Appelez-nous	-
32	3206141		Screw-leveling, (2)				$ 11.50
33	3206142		Plug-button (2)		Appelez-nous	-
34	5303202336		Trim-cabinet Corner (2)-white		Appelez-nous	-
*43692	5308016571		Plug (3)				$ 4.79
*43692	5308012296		Tapping-plate (2)				$ 47.44
13A	5303001361		Pushpin (2)		Appelez-nous	-
15A	3206134		Screw-mtg (2) (non-illustrated)		Appelez-nous	-
18A	5303210353		Screw-bracket Connector (non-illustrated)		Appelez-nous	-
25A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
25B	5303209814		Nut-``u`` Type (non-illustrated)		Appelez-nous	-
31A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
3A	241710601		Screw   (Replaces: 5303001479)				$ 13.46
