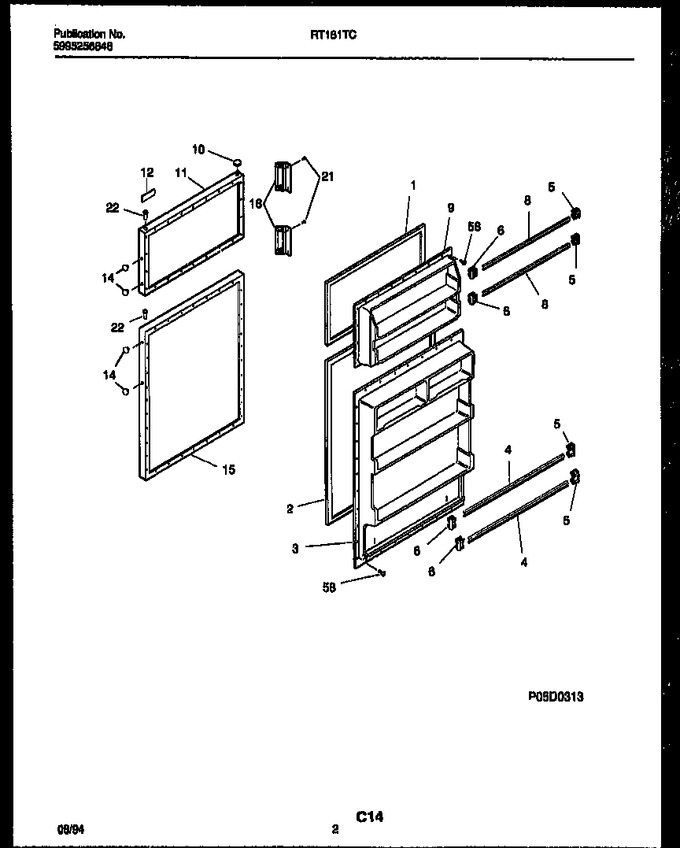

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207342 | Gasket-frzr Door, Magnetic, White |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, White, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 5303276388 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303271599 | Rack-door, (2) |
|
- | |||||
| 5 | 5303207230 | Support - Door Rack, Rh |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support - Door Rack, Lh |
|
$ 17.59 | |||||
| 8 | 5303271600 | Rack-door, (2) |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303916968 | Panel-frzr Door, White |
|
- | |||||
| 12 | 215366401 | Nameplate |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303916966 | Panel-refr Door, White |
|
- | |||||
| 18 | 5318750101 | Handle-door, Plastic, Charcoal Gray |
|
- | |||||
| 21 | 5308013645 | Screw-handle Mtg, 8 Cr Truss Hd, 10(d) X 1/2 |
|
- | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- |
