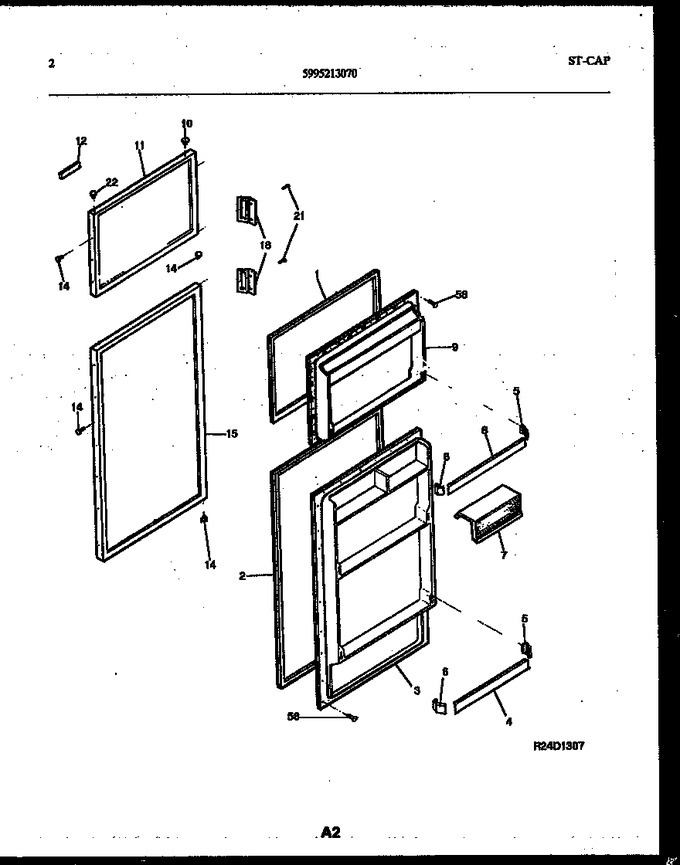

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303207342 | Gasket-frzr Door, Magnetic |
|
- | |||||
| 2 | 5303207345 | Gasket-refr Door, Magnetic |
|
Immediately | $ 188.19 | ||||
| 3 | 5303207346 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5303281481 | Rack-door, (2) |
|
$ 165.80 | |||||
| 5 | 5303207230 | Support-door Rack, Rh, (4) |
|
Immediately | $ 17.21 | ||||
| 6 | 5303207229 | Support-door Rack, Lh, (4) |
|
$ 17.59 | |||||
| 7 | 5303207233 | Door-dairy |
|
- | |||||
| 8 | 5303281482 | Rack-door, (2) |
|
- | |||||
| 9 | 5303207343 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917066 | Panel-frzr Door, White |
|
- | |||||
| 12 | 3206159 | Nameplate Assy |
|
- | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917064 | Panel-refr Door, White |
|
- | |||||
| 18 | 3206148 | Handle-door, Refr |
|
- | |||||
| 18 | 3206158 | Handle-door, Frzr |
|
- | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 3206153 | Bearing-hinge (8) |
|
- | |||||
| 58 | 5308002748 | Screw |
|
- |
