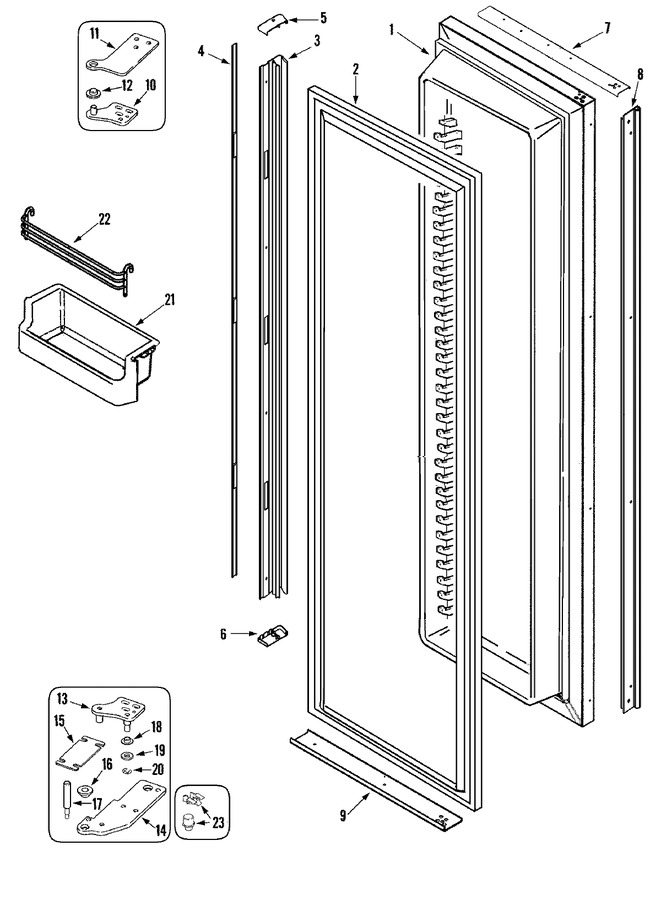

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67003677 | Door Assy., Freezer | 10 |
|
- | ||||
| 2 | 67001596 | Seal, Frz. Door | 10 |
|
$ 177.58 | ||||
| 3 | 61004346 | Screw (no.8 Philhead) | 10 |
|
- | ||||
| 3 | 67001438 | Handle, Door (slv) | 10 |
|
- | ||||
| 4 | 67001439 | Cover Assy., Screw (slv) | 10 |
|
- | ||||
| 5 | 67001441 | Screw | 10 |
|
- | ||||
| 5 | 67001442 | End Cap, Handle (slv) | 10 |
|
- | ||||
| 6 | 67001441 | Screw | 10 |
|
- | ||||
| 6 | 67001440 | End Cap, Handle (slv) | 10 |
|
- | ||||
| 7 | W11233072 | Screw (Replaces: 400026-12) | 10 |
|
Immediately | $ 12.62 | |||
| 7 | 67001574 | Trim, Perimeter (top-slv) | 10 |
|
- | ||||
| 8 | W11233072 | Screw (Replaces: 400026-12) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 67003247 | Trim, Perimeter (side-slv) | 10 |
|
- | ||||
| 9 | 67001573 | Trim, Perimeter (btm-slv) | 10 |
|
- | ||||
| 9 | W11233072 | Screw (Replaces: 400026-12) | 10 |
|
Immediately | $ 12.62 | |||
| 10 | 67001447 | Screw | 10 |
|
$ 18.32 | ||||
| 10 | 67001471 | Hinge, Upper | 10 |
|
- | ||||
| 10 | 67001466 | Screw | 10 |
|
- | ||||
| 11 | 67001449 | Screw | 10 |
|
- | ||||
| 11 | 67001448 | Plate, Upper Hinge | 10 |
|
- | ||||
| 12 | 67001450 | Bushing, Upper Hinge | 10 |
|
$ 17.37 | ||||
| 13 | 67001466 | Screw | 10 |
|
- | ||||
| 13 | 67003243 | Hinge, Lower | 10 |
|
- | ||||
| 13 | 67001531 | Screw | 10 |
|
- | ||||
| 14 | 67001531 | Screw | 10 |
|
- | ||||
| 14 | 67001473 | Plate, Lower Hinge | 10 |
|
- | ||||
| 15 | 67001453 | Shim, Lower Hinge | 10 |
|
- | ||||
| 16 | 67001454 | Bushing, Lower Hinge | 10 |
|
$ 5.54 | ||||
| 17 | WP487939 | Nut, Hinge Stud (Replaces: 67001455) | 10 |
|
$ 6.95 | ||||
| 17 | 67001456 | Stud, Lower Hinge | 10 |
|
- | ||||
| 18 | 67001458 | Bushing, Closer | 10 |
|
$ 34.88 | ||||
| 19 | 67001459 | Spacer, Closer | 10 |
|
$ 36.47 | ||||
| 20 | 67001460 | Retainer, Closer Extension | 10 |
|
- | ||||
| 21 | 67001562 | Shelf, Pick Off | 10 |
|
- | ||||
| 22 | 67003479 | Wire, Pick Off Shelf | 10 |
|
- | ||||
| 23 | 67001626 | Stop Assy., Door | 10 |
|
- |
