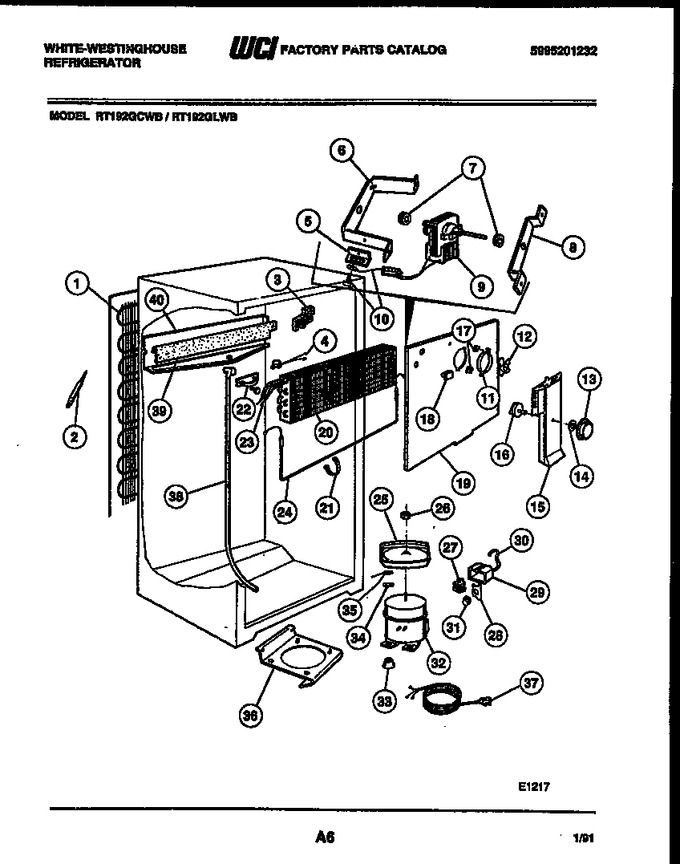

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G164637 | Bracket, Cond. Mtg. (4) |
|
- | |||||
| 1 | 5300163133 | Condenser |
|
- | |||||
| 2 | 5303305677 | Drier (Replaces: 5308000027) |
|
Immediately | $ 31.67 | ||||
| 3 | G185299 | Block, Evaporator, Rh |
|
- | |||||
| 4 | 5303917954 | Thermostat-defrost (Replaces: 5316269001) |
|
Immediately | $ 30.47 | ||||
| 5 | G164571 | Bracket, Connector |
|
- | |||||
| 6 | 5303205119 | Bracket - Mtr Mtg Rear |
|
- | |||||
| 7 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 8 | G185302 | Bracket-mtr Mtg Front |
|
- | |||||
| 9 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 10 | G162585 | Screw |
|
- | |||||
| 11 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 12 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 13 | 5316266315 | Knob - Dampr Cont |
|
- | |||||
| 13 | G187640 | Label-fan Cover |
|
- | |||||
| 14 | G162662 | Nut, Push |
|
- | |||||
| 15 | G490076-01 | Cover-fan |
|
- | |||||
| 16 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 17 | G167542 | Nut-speed |
|
- | |||||
| 18 | G162827-18 | Plug-decorative |
|
- | |||||
| 19 | 5308009771 | Cover, Coil |
|
- | |||||
| 20 | 5300162506 | Evaporator |
|
- | |||||
| 21 | G165546 | Strap-aluminum (2) |
|
- | |||||
| 22 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 23 | 5308000728 | Exchanger - Heat |
|
- | |||||
| 24 | 5317842502 | Heater-defrost |
|
$ 133.96 | |||||
| 25 | G184715 | Pan-drain |
|
- | |||||
| 26 | 5303001348 | Nut-lock |
|
$ 2.73 | |||||
| 27 | 216594300 | Relay (Replaces: 3204486) |
|
$ 28.92 | |||||
| 28 | G188957 | Retainer, Overload |
|
- | |||||
| 29 | 5303006411 | Cover, Terminal |
|
- | |||||
| 30 | 5303006412 | Strap-bale |
|
- | |||||
| 31 | 3204487 | Overload |
|
- | |||||
| 32 | 5303916411 | Compressor |
|
- | |||||
| 33 | 5308008778 | Grommet-comp Mtg (4) |
|
- | |||||
| 34 | 5308003633 | Washer-comp Mtg (4) |
|
$ 35.67 | |||||
| 35 | 5308003596 | Clip-comp Mtg (4) |
|
$ 6.62 | |||||
| 36 | G184599 | Plate Comp. Mtg |
|
- | |||||
| 37 | 5316254901 | Cord-service |
|
- | |||||
| 38 | 5303210377 | Tube-drain |
|
$ 109.31 | |||||
| 39 | 5303001470 | Trough-drain |
|
- | |||||
| 40 | 5316651102 | Insulation - Plastic |
|
$ 53.04 | |||||
| *34241 | 5308017610 | Sound Tape |
|
- | |||||
| *34241 | 3001383 | Harness-wiring |
|
- | |||||
| 3A | G188375 | Block-evaporator Lh |
|
- | |||||
| 40A | 5300189383 | Hot Tube Repair Kit |
|
$ 613.15 | |||||
| 40B | G183584 | Cover, Wiring |
|
- | |||||
| 40C | 5303001347 | Harness-compressor |
|
- |
