SELECT A DIAGRAM

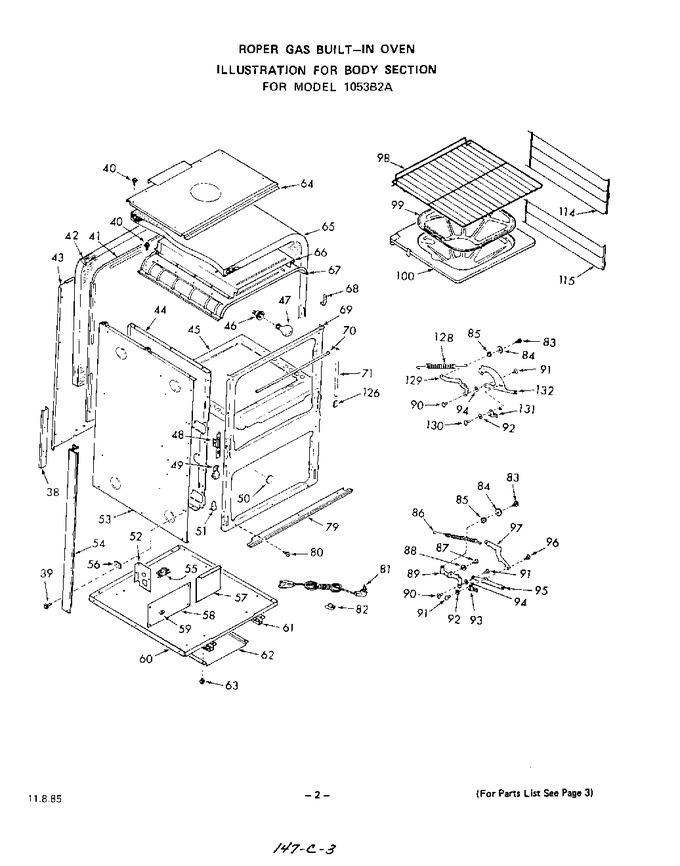

02 - Body


03 - Full Glass Upper Oven And Lower Bro


04 - Control


05 - Lit/optional Rotisserie


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	288296		Channel Trim-lt. Or Rt.		Appelez-nous	-
39	281160		Accordian Rivet (4 Required)		Appelez-nous	-
40	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 7.16
41	332347		Oven Back		Appelez-nous	-
42	308683		Insulation-oven Back		Appelez-nous	-
43	323574		Wire Cover-oven Back		Appelez-nous	-
44	332348		Oven Side (left)		Appelez-nous	-
44	332349		Oven Side (right)		Appelez-nous	-
45	332451		Oven Bottom W/baffle		Appelez-nous	-
46	87883		Oven Lamp Holder		Appelez-nous	-
47	DA96-01243C		Oven Lamp Bulb   (Replaces: 111257)				$ 144.00
48	104739		Support-oven Door Hinge (left)		Appelez-nous	-
48	104738		Support-oven Door Hinge (right)		Appelez-nous	-
49	104659		Bracket Door Spring (2 Required)		Appelez-nous	-
50	98230		Plug Button				$ 257.43
51	323446		Support-broiler Door Hinge (2 Required)		Appelez-nous	-
52	232407		Disconnect Plate		Appelez-nous	-
53	323561		Body Side (left)		Appelez-nous	-
53	323562		Body Side (right)		Appelez-nous	-
54	300907		Side Trim-front Frame (left)		Appelez-nous	-
54	300906		Side Trim-front Frame (right)		Appelez-nous	-
55	232150		Disconnect Plug		Appelez-nous	-
56	302862		Side Trim Spacer (4 Required)		Appelez-nous	-
57	332303		Right Cover Plate		Appelez-nous	-
58	332302		Left Cover Plate		Appelez-nous	-
59	70588		Clip		Appelez-nous	-
60	332301		Main Bottom		Appelez-nous	-
61	328042		Channel-main Bottom (rt. Or Lt.)		Appelez-nous	-
62	279438		Baffle-main Bottom		Appelez-nous	-
63	316365		Screw 10-32x7/16``		Appelez-nous	-
64	323578		Oven Cabinet Top		Appelez-nous	-
65	104991		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
66	323487		Vent Box		Appelez-nous	-
67	332350		Oven Top		Appelez-nous	-
68	115533		Thermostat Bulb Clip (2 Required)		Appelez-nous	-
69	332362		Frt. Frame W/rivets, Sleeves & Washers		Appelez-nous	-
70	315944		Seal-oven & Broiler Door (3 Required)		Appelez-nous	-
71	315945		Seal-oven Door (rt. Or Lt.)		Appelez-nous	-
79	302871		Lower Trim-front Frame		Appelez-nous	-
80	97221		Screw 6-32x5/16``		Appelez-nous	-
81	232132		Service Cord		Appelez-nous	-
82	106767		Clip		Appelez-nous	-
83	288881		Bolt 1/4-20x3/8``		Appelez-nous	-
84	323451		Washer		Appelez-nous	-
85	69459		Lockwasher		Appelez-nous	-
86	307363		Spring-broiler Door (2 Required)		Appelez-nous	-
87	104735		Shoulder Rivet		Appelez-nous	-
88	104734		Roller		Appelez-nous	-
89	324036		Door Hinge (incl`s Keys 90,91 & 94) (left)		Appelez-nous	-
89	324037		Door Hinge (incl`s Keys 90,91 & 94) (right)		Appelez-nous	-
90	97717		Rivet Sleeve		Appelez-nous	-
91	97748		Rivet		Appelez-nous	-
92	103208		Washer		Appelez-nous	-
93	323456		Hinge Latch (right)		Appelez-nous	-
93	323457		Hinge Latch (left)		Appelez-nous	-
94	97749		Washer		Appelez-nous	-
95	324038		Door Hinge Arm (incl`s Keys 90, 91 & 94) (right)		Appelez-nous	-
95	324039		Door Hinge Arm (incl`s Keys 90, 91 & 94) (left)		Appelez-nous	-
96	104629		Hinge Pivot Sleeve		Appelez-nous	-
97	323454		Spring Link		Appelez-nous	-
98	279539		Oven Rack (2 Required)		Appelez-nous	-
99	331851		Broiler Pan Grid		Appelez-nous	-
100	332306		Broiler Pan		Appelez-nous	-
114	104702		Oven Rack Guide (rt. Or Lt.)		Appelez-nous	-
115	232900		Broiler Rack Guide (right)		Appelez-nous	-
115	232899		Broiler Rack Guide (left)		Appelez-nous	-
126	DA97-17549A		Hinge Arm Guide Block (right)   (Replaces: 111480)				$ 200.74
126	DA97-17550A		Hinge Arm Guide Block (left)   (Replaces: 111481)				$ 186.09
128	DD81-03879A		Spring-oven Door (2 Required)   (Replaces: 105825)				$ 154.21
129	324048		Oven Door Hinge (incl. Keys 90, 91 & 94) (right)		Appelez-nous	-
129	324047		Oven Door Hinge (incl. Keys 90, 91 & 94) (left)		Appelez-nous	-
130	103314		Shoulder Rivet		Appelez-nous	-
131	97696		Hinge Stop (right)		Appelez-nous	-
131	97697		Hinge Stop (left)		Appelez-nous	-
132	230981		Oven Door Arm (incl`s Keys 90, 91 & 94) (left)				$ 75.37
132	230980		Oven Door Arm (incl`s Keys 90, 91 & 94) (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
