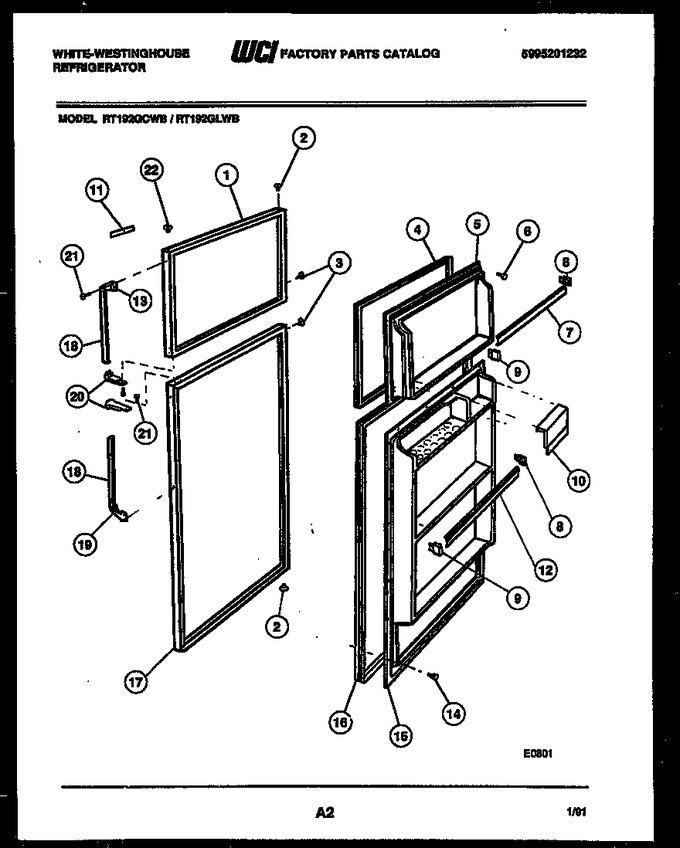

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303916847		Panel - Ext Frzr - Wheat		Appelez-nous	-
2	G183138		Bearing Hinge (8)		Appelez-nous	-
3	5308000180		Plug-button-wheat (12)		Appelez-nous	-
4	5303001486		Gasket-freezer		Appelez-nous	-
5	5303206550		Panel - Inner Frzr		Appelez-nous	-
6	G162585		Screw		Appelez-nous	-
7	G161019-56		Rack-freezer (2)		Appelez-nous	-
8	G185363-01		Supt-rack Rh (4)		Appelez-nous	-
9	G185364-01		Supt-rack Lh (4)		Appelez-nous	-
10	G178500-09		Door-dairy (2)		Appelez-nous	-
11	5300304001		Nameplate - Assy		Appelez-nous	-
12	G161019-52		Rack-refrig (2)		Appelez-nous	-
13	5303001014		End - Handle Top		Appelez-nous	-
14	G162585		Screw		Appelez-nous	-
15	5303206569		Panel - Inner Ref		Appelez-nous	-
16	5308015544		Gasket - Refrig		Appelez-nous	-
17	5303916849		Panel - Ext Ref - Wheat		Appelez-nous	-
18	531756618		Handle - Grip (2)		Appelez-nous	-
19	G175810		End-handle Bottom		Appelez-nous	-
20	5303001296		End-handle (2)				$ 86.36
22	5308000176		Plug Button - Wheat (2)		Appelez-nous	-
21G	G185566		Screw		Appelez-nous	-
