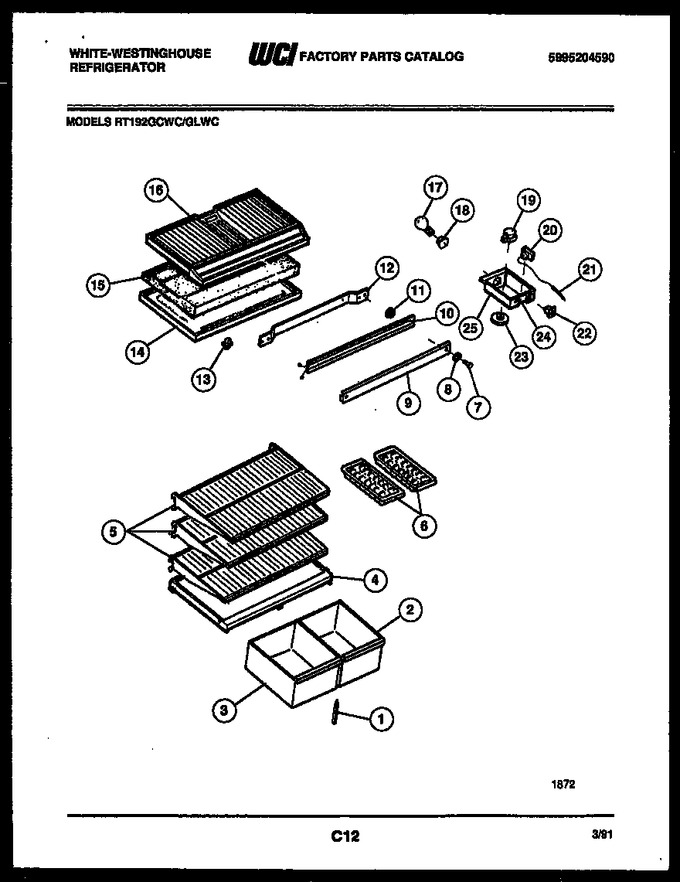

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303205987 | Support-crisper Cover |
|
$ 48.41 | |||||
| 2 | 3016366 | Pan-crisper |
|
- | |||||
| 3 | 3016366 | Pan-crisper |
|
- | |||||
| 4 | 3015045 | Cover-crisper |
|
- | |||||
| 5 | 08009921 | Shelf - Sliding (3) |
|
- | |||||
| 6 | 5303001324 | Ice Trays (2) |
|
- | |||||
| 7 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 8 | 5303206754 | Washer-mullion Mtg (2) |
|
- | |||||
| 9 | 5303200368 | Mullion, Wheat |
|
- | |||||
| 10 | 5303210351 | Mullon Heater |
|
- | |||||
| 11 | 5303200464 | Spacer, Mullion (2) |
|
- | |||||
| 12 | 5308010008 | Strap-mullion |
|
- | |||||
| 13 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 14 | 5303016367 | Top-refrigerator |
|
- | |||||
| 15 | 5303001504 | Divider |
|
- | |||||
| 16 | 5303211427 | Bottom - Freezer |
|
- | |||||
| 17 | 5303001179 | Light Bulb |
|
- | |||||
| 18 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 19 | 215846602 | Timer-defrost (Replaces: 5300187484) |
|
Immediately | $ 28.20 | ||||
| 20 | 5303200810 | Control-temp |
|
$ 126.87 | |||||
| 21 | 5303916855 | Sleeve-plastic |
|
$ 60.96 | |||||
| 22 | 5303001670 | Switch-slide |
|
- | |||||
| 23 | 5308010011 | Knob-control |
|
- | |||||
| 24 | G000180105 | Label - Control Box |
|
- | |||||
| 25 | 5317672201 | Control Box |
|
- | |||||
| 14A | 5303001380 | Screw |
|
- | |||||
| 19A | 5304455649 | Screw (Replaces: 5303001259) |
|
$ 17.01 | |||||
| 20A | 5303001260 | Screw |
|
$ 6.73 |
