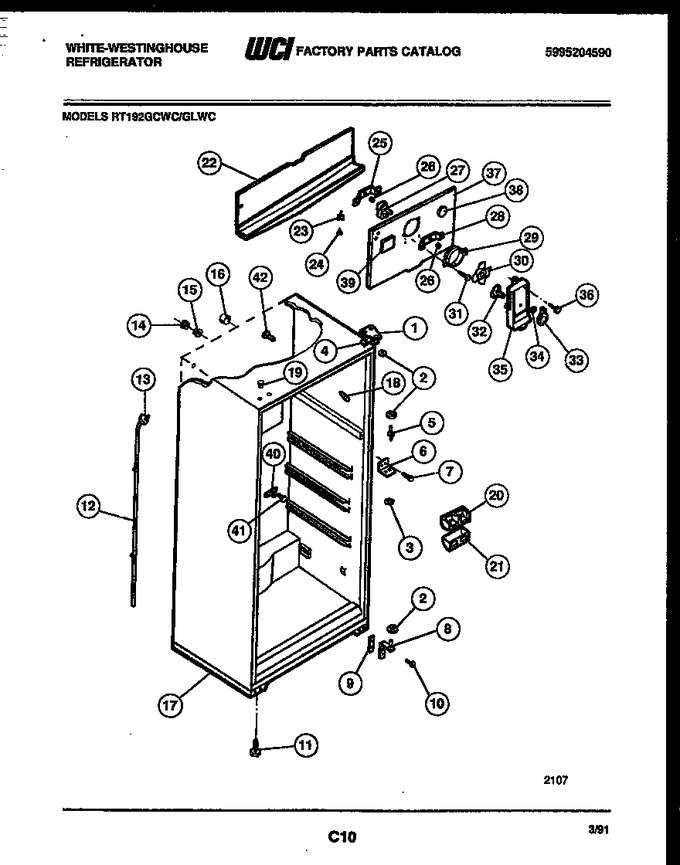

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012843 | Bracket-top-hinge |
|
$ 71.47 | |||||
| 2 | 5308000007 | Washer-nylon (3) |
|
- | |||||
| 3 | 5308000186 | Washer-nylon (2) |
|
Immediately | $ 6.02 | ||||
| 4 | 5303001037 | Shim-hinge-upper |
|
$ 12.39 | |||||
| 5 | 5308000184 | Hinge Pin-center |
|
$ 8.87 | |||||
| 6 | 5303001369 | Center Hinge Bracket |
|
- | |||||
| 7 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 8 | 5303212489 | Bracket-lower Hinge |
|
- | |||||
| 9 | 5303212488 | Shim-hinge Lower |
|
$ 5.25 | |||||
| 10 | 5303001320 | Screw-hinge Mtg (6) |
|
- | |||||
| 11 | 5303212922 | Screw-leveling (4) |
|
$ 10.71 | |||||
| 12 | 5303210377 | Drain Tube W/ Ring Seal |
|
$ 109.31 | |||||
| 13 | 5303207353 | Ring - Seal |
|
$ 6.81 | |||||
| 14 | 5303001287 | Ferrule-outer |
|
- | |||||
| 15 | 5303001286 | Ferrule-inner |
|
- | |||||
| 16 | 5303001198 | Tube, Rubber (2) |
|
- | |||||
| 17 | 5303212487 | Base-cabinet |
|
- | |||||
| 18 | 5303202336 | Trim - Cab Corner - White (4) |
|
- | |||||
| 19 | 5303001388 | Plug Button-hinge-white |
|
$ 2.60 | |||||
| 20 | 5308000071 | Deflector-air |
|
- | |||||
| 21 | 5303001546 | Cover - Air Deflector |
|
- | |||||
| 22 | 5303001470 | Trough-drain |
|
- | |||||
| 23 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 24 | 5308002748 | Screw |
|
- | |||||
| 25 | 5303205119 | Bracket - Mtr Mtg Rear |
|
- | |||||
| 26 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 27 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 28 | 5303205118 | Bracket-mtr Mtg Front |
|
- | |||||
| 29 | 5308000124 | Ring-fan Orifice |
|
$ 53.58 | |||||
| 30 | 5308000010 | Fan Blade |
|
Immediately | $ 49.03 | ||||
| 31 | 5308002748 | Screw |
|
- | |||||
| 32 | 5303001331 | Damper-fan Cover |
|
$ 31.71 | |||||
| 33 | 5316266315 | Knob-damper Cont W/ Label |
|
- | |||||
| 34 | 5303001028 | Nut, Push |
|
- | |||||
| 35 | 5349007601 | Cover-fan |
|
- | |||||
| 36 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 37 | 5308009771 | Cover, Coil |
|
- | |||||
| 38 | 5303208309 | Plug, Short Test Hole |
|
$ 45.50 | |||||
| 39 | 5303018193 | Plug-decorative |
|
- | |||||
| 40 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 41 | 5303001361 | Push Pin-spout |
|
- | |||||
| 42 | 5304509705 | Grommet-shell Mtg (2) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| *42772 | 5308012296 | Tapping Plate |
|
$ 47.44 | |||||
| *42772 | 5308000097 | Support-coil Cvr (2) |
|
- | |||||
| *42772 | 5308016571 | Plug - Liner (3) |
|
$ 4.79 | |||||
| 35A | G000187640 | Label-fan Cover |
|
- | |||||
| 37A | 5303209814 | Nut U, Type (2) (non-illustrated) |
|
- | |||||
| 42A | 5304500407 | Grommet-shelf Mtg (2) (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| 4A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 |
