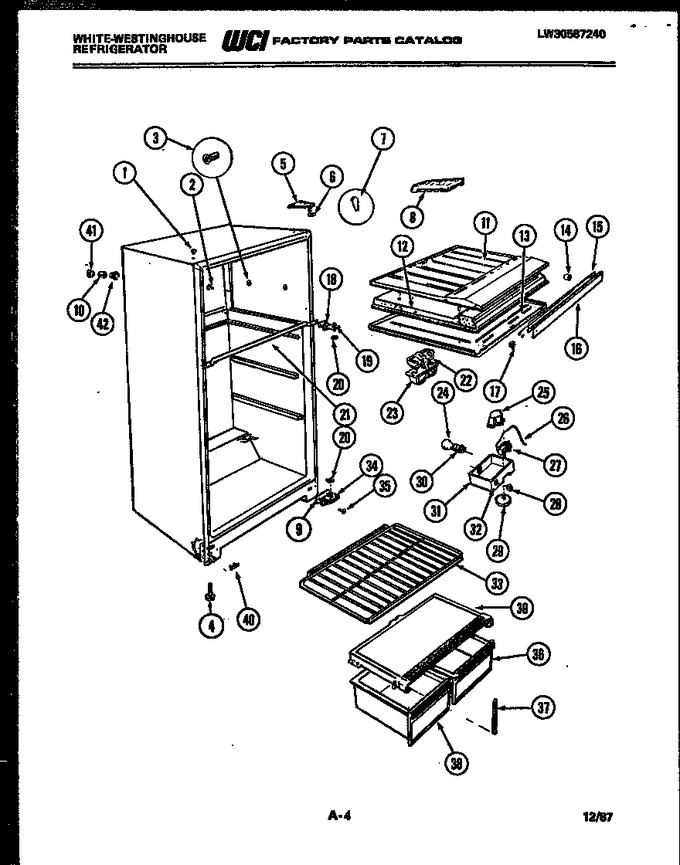

02 - Door Parts
03 - Cabinet Parts
04 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | G174747-11 | Button-plug, Almond |
|
- | |||||
| 2 | G163669 | Support-coil Cvr (2) |
|
- | |||||
| 3 | G176993 | Grommet-shelf Mtg (4) (non-illustrated) |
|
- | |||||
| 3 | G167565 | Grommet, Shelf Mtg (4) |
|
- | |||||
| 4 | G185713 | Screw, Leveling (2) |
|
- | |||||
| 5 | G183714 | Bracket, Top Hinge |
|
- | |||||
| 6 | G103903 | Washer, Nylon |
|
$ 3.10 | |||||
| 7 | G179684-11 | Trim-cab Corner Almd (4) |
|
- | |||||
| 8 | G156376-01 | Tray-ice Plastic(2) |
|
- | |||||
| 9 | G163203 | Shim, Lower Hinge |
|
- | |||||
| 10 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 11 | G185912 | Bottom, Freezer |
|
- | |||||
| 12 | G176777 | Divider |
|
- | |||||
| 13 | 3016367 | Top-refrigerator |
|
- | |||||
| 14 | G490082 | Spacer-mullion Mtg (2) |
|
- | |||||
| 15 | G168722 | Heater-mullion |
|
- | |||||
| 16 | G180373-11 | Mullion-almd |
|
- | |||||
| 17 | G162672 | Switch Light |
|
- | |||||
| 18 | G142220 | Pin |
|
- | |||||
| 19 | G163207 | Hinge-center |
|
- | |||||
| 20 | G164355 | Washer (nylon) |
|
- | |||||
| 21 | G490087 | Strap, Mullion Mtg |
|
- | |||||
| 22 | G162675 | Deflector Air |
|
- | |||||
| 23 | G162178 | Cover, Air Deflector |
|
- | |||||
| 24 | G165723 | Bulb, Light |
|
- | |||||
| 25 | G187484 | Timer-defrost |
|
- | |||||
| 26 | G142176-43 | Sleeve-plastic |
|
- | |||||
| 27 | G162205-11 | Control Temp. |
|
- | |||||
| 28 | G178402-01 | Switch Slide |
|
- | |||||
| 29 | G490107-02 | Knob, Control |
|
- | |||||
| 30 | G168302 | Socket Light |
|
- | |||||
| 31 | G176722-01 | Box-control |
|
- | |||||
| 32 | G177795 | Label-control Box |
|
- | |||||
| 33 | G179139-01 | Shelf-sliding (3) |
|
- | |||||
| 34 | G166505 | Pin, Lower Hinge |
|
- | |||||
| 35 | G191474 | Hinge-lower |
|
- | |||||
| 36 | 3016366 | Pan-crisper |
|
- | |||||
| 37 | G166310-02 | Support-crispr Cvr |
|
- | |||||
| 38 | 3016366 | Pan-crisper |
|
- | |||||
| 39 | 3015045 | Cover-crisper |
|
- | |||||
| 40 | G166912 | Plug-button |
|
- | |||||
| 41 | G174734 | Ferrule Outer |
|
- | |||||
| 42 | G174733 | Ferrule, Inner |
|
- | |||||
| *44322 | G183073 | Nut, Anchor (2) |
|
- |
