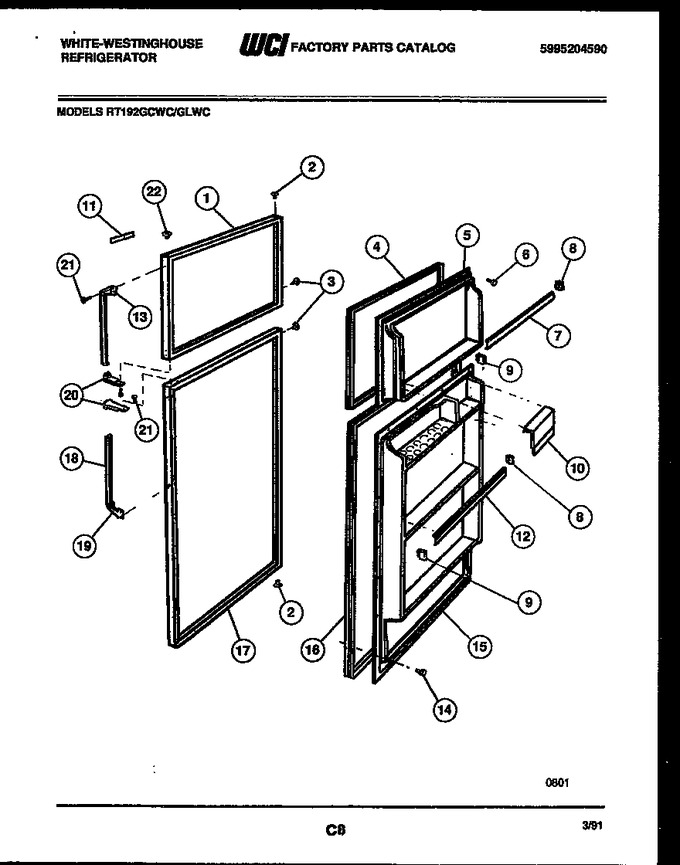

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303916846 | Panel - Ext Frzr Almond |
|
- | |||||
| 2 | 5308012007 | Bearing, Hinge (8) |
|
- | |||||
| 3 | 5308000181 | Plug Button - Almond (12) |
|
- | |||||
| 4 | 5308001486 | Gasket-freezer |
|
- | |||||
| 5 | 5303206550 | Panel - Inner Frzr |
|
- | |||||
| 6 | 5308002748 | Screw |
|
- | |||||
| 7 | G161019-56 | Rack-freezer (2) |
|
- | |||||
| 8 | 5303007295 | Supt-rack Rh (4) |
|
$ 32.55 | |||||
| 9 | 5303007297 | Supt-rack Lh (4) |
|
$ 64.58 | |||||
| 10 | G178500-09 | Door-dairy |
|
- | |||||
| 11 | 5300304001 | Nameplate - Assy |
|
- | |||||
| 12 | G161019-52 | Rack-refrig (2) |
|
- | |||||
| 13 | 5303001014 | End - Handle Top |
|
- | |||||
| 14 | 5308002748 | Screw |
|
- | |||||
| 15 | 5303206569 | Panel - Inner Ref |
|
- | |||||
| 16 | 5308015544 | Gasket - Refrig |
|
- | |||||
| 17 | 5303916848 | Panel - Ext Ref - Almond |
|
- | |||||
| 18 | 5317566618 | Handle Grip (2) |
|
- | |||||
| 19 | 5303001015 | End - Handle Bottom |
|
$ 74.29 | |||||
| 20 | 5303001296 | End-handle (2) |
|
$ 86.36 | |||||
| 21 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 22 | 5303001308 | Plug Button-almond (2) |
|
- |
