02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

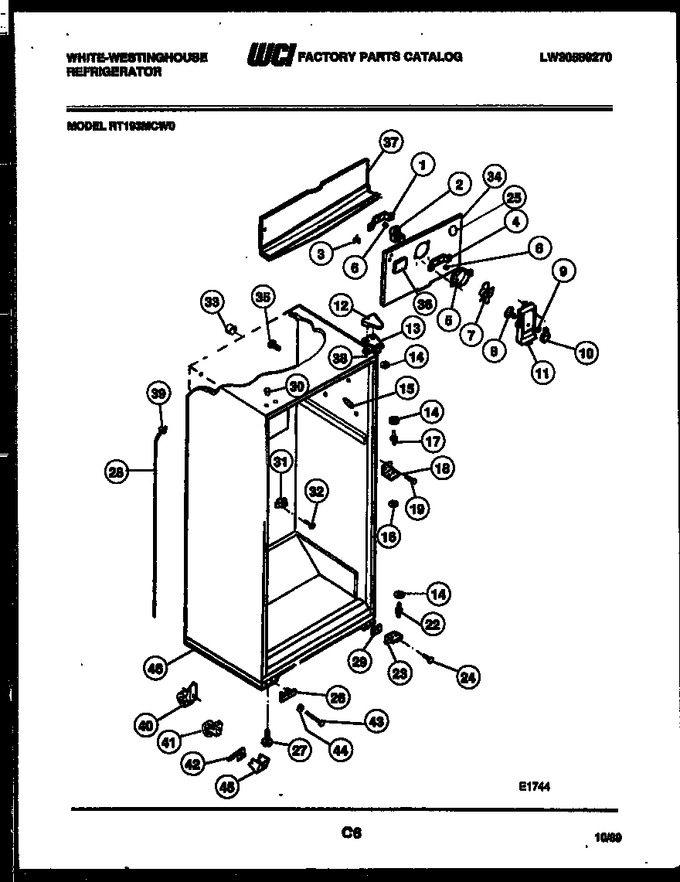

| 2 | 3205119 | Bracket-rear |
|
- | |||||
| 2 | G158289 | Motor-fan |
|
- | |||||
| 3 | G164571 | Connector Bracket |
|
- | |||||
| 4 | 3205118 | Bracket-front |
|
- | |||||
| 5 | G167217 | Orifice Ring |
|
- | |||||
| 6 | G157666 | Bushing (2) |
|
- | |||||
| 7 | G174705 | Fan Blade |
|
- | |||||
| 8 | 3001331 | Damper |
|
- | |||||
| 9 | G162662 | Push Nut-damper |
|
- | |||||
| 10 | 3206109 | Knob-damper Control |
|
- | |||||
| 11 | 3206318 | Cover - Fan |
|
- | |||||
| 12 | 3001666 | Hinge Cover-coffee |
|
- | |||||
| 13 | 08012843 | Hinge-top |
|
- | |||||
| 14 | 3001038 | Washer-hinge (3) |
|
- | |||||
| 15 | 3202339 | Corner Trim-coffee |
|
- | |||||
| 16 | 08000007 | Washer-hinge |
|
- | |||||
| 17 | G142220 | Pin |
|
- | |||||
| 18 | G163207 | Bracket-center Hinge |
|
- | |||||
| 19 | 08012258 | Screw |
|
- | |||||
| 22 | G166505 | Pin-bottom Hinge |
|
- | |||||
| 23 | 3202834 | Bracket-bottom Hinge |
|
- | |||||
| 24 | 3001320 | Screw-hinge Mtg (4) |
|
- | |||||
| 25 | 3203044 | Plug-short Test Hole |
|
- | |||||
| 26 | 3001478 | Cover-hinge Holes |
|
- | |||||
| 27 | 3205540 | Leveling Leg (2) |
|
- | |||||
| 28 | 3001458 | Drain Tube |
|
- | |||||
| 29 | 3001323 | Shim-lwr Hinge Brkt |
|
- | |||||
| 30 | G174747-10 | Plug-button, Coffee |
|
- | |||||
| 31 | 08000056 | Spout-drain Tube |
|
- | |||||
| 32 | 3001361 | Push Pin-drain Spout |
|
- | |||||
| 33 | G85642 | Tube, Rubber (2) |
|
- | |||||
| 34 | 08009771 | Cover-evaporator Coil |
|
- | |||||
| 35 | G163669 | Support, Cover (2) |
|
- | |||||
| 36 | 3018193 | Plug-decorative |
|
- | |||||
| 37 | 3001470 | Drain Trough |
|
- | |||||
| 38 | G183861 | Shim Top Hinge |
|
- | |||||
| 39 | G176853 | Ring, Seal |
|
- | |||||
| 40 | 08009773 | Roller Assy-rear (2) |
|
- | |||||
| 41 | 08009760 | Roller Assy-front (2) |
|
- | |||||
| 42 | 08009790 | Spring-roller Adj (2) |
|
- | |||||
| 43 | 08009761 | Bolt-roller Adj (2) |
|
- | |||||
| 44 | 08011326 | Washer (2) |
|
- | |||||
| 45 | 08013678 | Support-cabinet Base (2) |
|
- | |||||
| 46 | 08010092 | Base-cabinet |
|
- | |||||
| *23499 | 08012296 | Tapping Plate (4) |
|
- | |||||
| *23499 | G174733 | Ferrule, Inner |
|
- | |||||
| *23499 | G174734 | Ferrule Outer |
|
- | |||||
| *23499 | G187599 | Plug-freezer Liner (3) |
|
- | |||||
| 11A | G187363 | Screw |
|
- | |||||
| 11B | 3206362 | Label - Fan Cover (non-illustrated) |
|
- | |||||
| 13A | 3001479 | Screw-hinge Mtg (2) (non-illustrated) |
|
- | |||||
| 27A | 08003584 | Anchor Nut (non-illustrated) |
|
- | |||||
| 28A | G187009 | Screw-tube Mtg (non-illustrated) |
|
- | |||||
| 34A | G187363 | Screw |
|
- | |||||
| 34B | G167542 | Nut-u Type (2) (non-illustrated) |
|
- | |||||
| 3A | 3001001 | Screw-brkt Mounting (non-illustrated) |
|
- | |||||
| 40A | 08009762 | Screw-roller Mtg (2) (non-illustrated) |
|
- | |||||
| 40A | 3001343 | Screw-roller Mtg (2) (non-illustrated) |
|
- | |||||
| 5A | 3001001 | Screw-fan Assy (2) |
|
- |
