SELECT A DIAGRAM

01 - Cabinet


02 - Compressor


03 - Controls


04 - Evaporator Compartment


05 - Fountain


06 - Freezer Door (rjrs4880d)


07 - Fresh Food Door (rjrs4880d)


08 - Ice Bin


09 - Ice Maker


10 - Shelves & Accessories (freezer)


11 - Shelves & Accessories (fresh Food)


12 - Supplemental Information

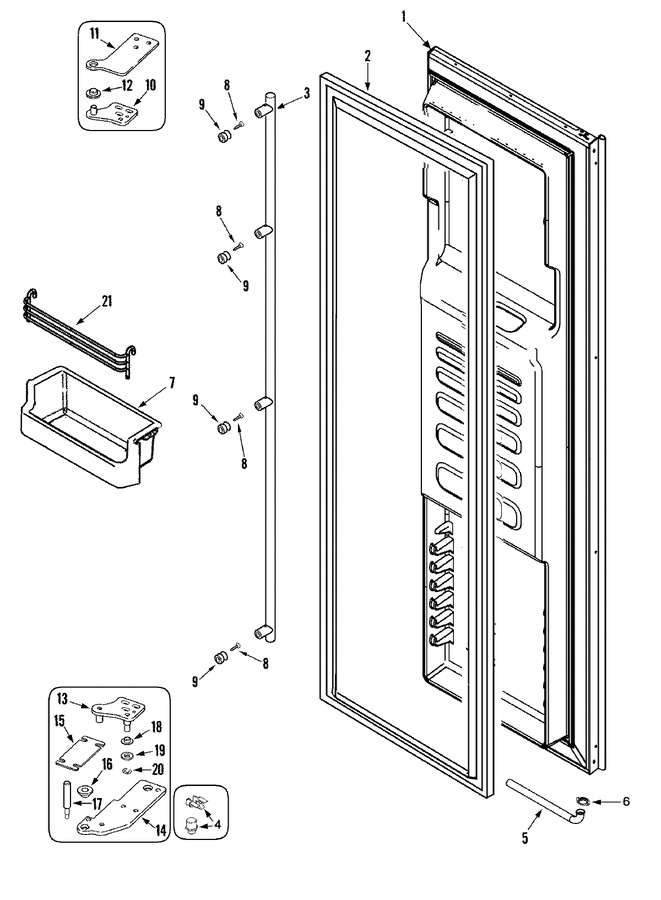

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002041		Door Assy., Freezer (stnls)	10	Appelez-nous	-
2	67001468		Seal, Frz. Door	10			$ 181.95
3	W11174552		Screw, Set   (Replaces: 67003786)	10			$ 13.99
3	67006035		Handle, Door (w/standoffs)	10	Appelez-nous	-
4	67001626		Stop Assy., Door	10	Appelez-nous	-
5	67001972		Conduit, Pivoting	10	Appelez-nous	-
6	67001971		Bearing, Conduit	10	Appelez-nous	-
6	WP8281227		Screw   (Replaces: 61002819)	10			$ 9.40
7	67001474		Shelf, Pick Off	10	Appelez-nous	-
8	67001531		Screw	10	Appelez-nous	-
9	67006036		Mount, Handle	10	Appelez-nous	-
10	67001447		Screw	10			$ 18.32
10	67001471		Hinge, Upper	10	Appelez-nous	-
10	67001466		Screw	10	Appelez-nous	-
11	67001449		Screw	10	Appelez-nous	-
11	67001448		Plate, Upper Hinge	10	Appelez-nous	-
12	67001450		Bushing, Upper Hinge	10			$ 17.37
13	67003242		Hinge, Lower	10	Appelez-nous	-
13	67001466		Screw	10	Appelez-nous	-
13	67001447		Screw	10			$ 18.32
14	67001473		Plate, Lower Hinge	10	Appelez-nous	-
14	67001531		Screw	10	Appelez-nous	-
15	67001453		Shim, Lower Hinge	10	Appelez-nous	-
16	67001454		Bushing, Lower Hinge	10			$ 5.54
17	67001456		Stud, Lower Hinge	10	Appelez-nous	-
17	WP487939		Nut, Hinge Stud   (Replaces: 67001455)	10			$ 6.95
18	67001458		Bushing, Closer	10			$ 34.88
19	67001459		Spacer, Closer	10			$ 36.47
20	67001460		Retainer, Closer Extension	10	Appelez-nous	-
21	67003464		Wire, Pick Off Shelf	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
