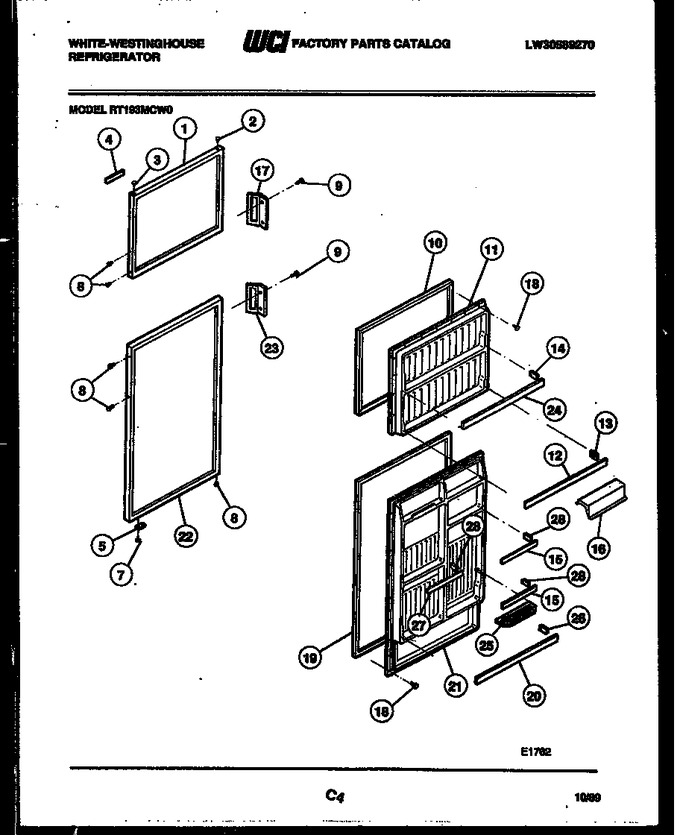

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3916578		Panel-freezer, White		Appelez-nous	-
2	G169332-01		Button Plug, White		Appelez-nous	-
3	08012007		Bearing-hinge		Appelez-nous	-
4	3206159		Nameplate		Appelez-nous	-
5	08000255		Door Stop (2)		Appelez-nous	-
7	G185566		Screw		Appelez-nous	-
8	G162977-01		Button Plug-white		Appelez-nous	-
9	G185566		Screw		Appelez-nous	-
10	3018791		Gasket-freezer		Appelez-nous	-
11	3206284		Panel-freezer Inner		Appelez-nous	-
12	3206289		Rack-freezer		Appelez-nous	-
13	3206161		Support-rack Rh		Appelez-nous	-
14	3206165		Support-rack Rh			Immediately	$ 8.19
15	3206191		Rack-refr (2)		Appelez-nous	-
16	3206304		Door-dairy (includes Trim)		Appelez-nous	-
17	3206158		Handle-freezer		Appelez-nous	-
18	G162585		Screw		Appelez-nous	-
19	3018792		Gasket-refrigerator		Appelez-nous	-
20	3206289		Rack-refrigerator		Appelez-nous	-
21	3206357		Panel-refrigerator Inner		Appelez-nous	-
22	3916583		Panel-refrigerator-white		Appelez-nous	-
23	3206148		Handle-ref		Appelez-nous	-
24	3206288		Rack-frzr		Appelez-nous	-
25	3206189		Shelf - Flip-up				$ 50.61
26	5303206516		Support - Rack - Rh		Appelez-nous	-
27	3206300		Rack-refr		Appelez-nous	-
28	3206165		Support - Rack - Rh (3)			Immediately	$ 8.19
*23493	3007739		Fiberglass-insulation (bulk)		Appelez-nous	-
*23494	3206307		Bottle Retainer		Appelez-nous	-
13A	3206162		Support-rack-lh		Appelez-nous	-
14A	3206166		Support-rack Lh			Immediately	$ 9.93
16A	3206302		Trim-dairy Door (non-illustrated)		Appelez-nous	-
26A	5303206517		Support - Rack - Lh				$ 56.33
28A	3206166		Support - Rack - Lh (3)			Immediately	$ 9.93

    View Diagram in Separate Window       Print Part List
