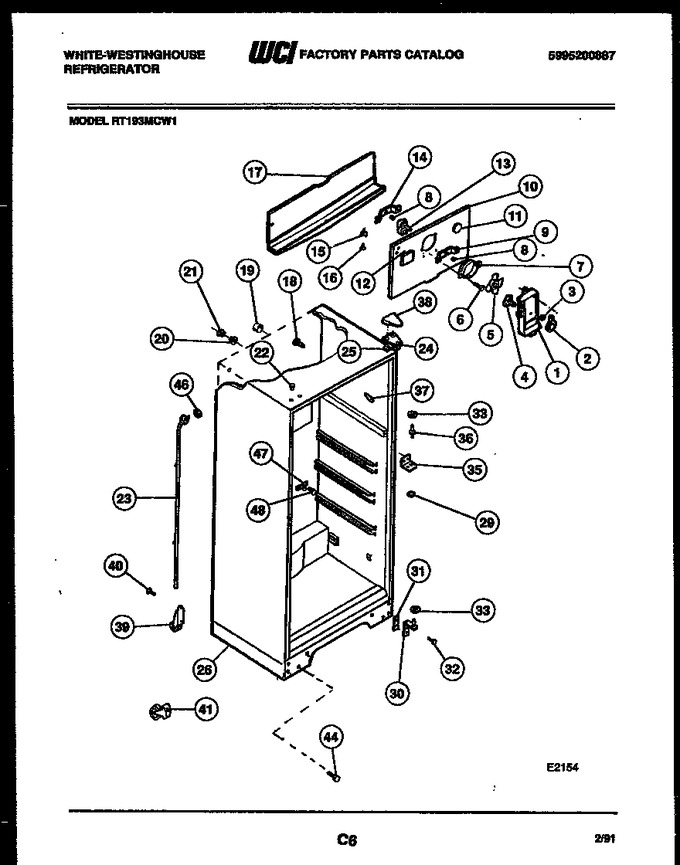

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3206318		Cover - Fan		Appelez-nous	-
2	3206109		Knob-damper Cntrl		Appelez-nous	-
3	5303001028		Push-nut		Appelez-nous	-
4	5303001331		Damper, Fan				$ 31.71
5	5308000010		Fan Blade			Immediately	$ 49.03
6	08002748		Screw		Appelez-nous	-
7	5308000124		Orifice Ring				$ 53.58
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303001226		Bracket-front		Appelez-nous	-
10	5308009771		Cover-evap Coil		Appelez-nous	-
11	5303208309		Plug, Short Test Hole				$ 45.50
12	5303018193		Plug-decorative		Appelez-nous	-
13	5300158289		Motor, Fan			Immediately	$ 149.94
14	5303205119		Bracket, Rear		Appelez-nous	-
15	5308000107		Bracket-connector				$ 33.23
16	5303210353		Screw-bracket Mtg		Appelez-nous	-
17	5303001470		Drain Trough		Appelez-nous	-
18	5308000097		Support-coil Cvr (2)		Appelez-nous	-
19	5303001198		Tube, Rubber (2)		Appelez-nous	-
20	5303001286		Ferrule-inner		Appelez-nous	-
21	5303001287		Ferrule-outer		Appelez-nous	-
22	5303001388		Plug, White (2)				$ 2.60
23	5303210377		Defrost Drain Tube-w/ Seal Ring				$ 109.31
24	5308012843		Hinge-top				$ 71.47
25	5303001037		Shim, Top Hinge				$ 12.39
26	3212487		Cabinet Base		Appelez-nous	-
29	5308000186		Washer, Nylon			Immediately	$ 6.02
30	5303212489		Bracket, Bottom Hinge		Appelez-nous	-
31	5303212488		Shim, Bottom Hinge				$ 5.25
32	5303001320		Screw-hinge Gusset Mtg (6)		Appelez-nous	-
33	5308000007		Washer, Nylon (2)		Appelez-nous	-
35	5303001369		Bracket- Center Hinge		Appelez-nous	-
36	5308000184		Pin-center Hinge				$ 8.87
37	5303202336		Corner Trim-white (4)		Appelez-nous	-
38	5308012820		Hinge Cover, White		Appelez-nous	-
39	5308009773		Roller Assy, Rear, (2)		Appelez-nous	-
40	5308009762		Bolt-1/4-28 X 1/2 (2)		Appelez-nous	-
41	5303212490		Roller Assy, Front, (2)		Appelez-nous	-
44	5303212598		Bolt-roller Adj.		Appelez-nous	-
46	5303207353		Seal Ring				$ 6.81
47	5308000056		Drain Spout				$ 11.66
48	5303001361		Push Pin		Appelez-nous	-
*41891	5308016571		Plug - Liner (3)				$ 4.79
10A	5303209814		Nut U, Type (2) (non-illustrated)		Appelez-nous	-
10B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
1B	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
24A	5308012296		Tapping Plate (2) (non-illustrated)				$ 47.44
24B	241710601		Screw   (Replaces: 5303001479)				$ 13.46
30A	5303212597		Tapping Plate/gusset, Rh (non-illustrated)		Appelez-nous	-
30B	5303212596		Tapping Plate/gusset, Lh (non-illustrated)		Appelez-nous	-
35A	5308012258		Screw				$ 2.25
40A	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
