SELECT A DIAGRAM

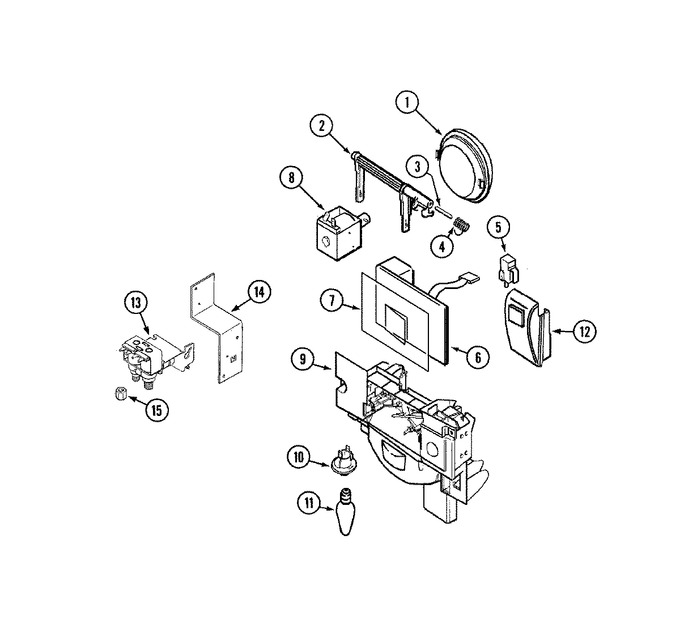

01 - Fountain Bracket Kit (115v)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12001991 | Door Assy., Ice (Replaces: 61003507) | 10 |
|
Immediately | $ 226.90 | |||
| 2 | 12001991 | Strike, Ice Door (Replaces: 61003311) | 10 |
|
Immediately | $ 226.90 | |||
| 3 | WP9705445 | Pin, Roll (Replaces: 61003303) | 10 |
|
$ 6.26 | ||||
| 4 | 61004388 | Spring, Ftn. Return | 10 |
|
$ 7.72 | ||||
| 5 | 415041-35 | Screw | 10 |
|
- | ||||
| 5 | 61003124 | Switch, Limit | 10 |
|
- | ||||
| 6 | 61003425 | Board, Control | 10 |
|
$ 227.84 | ||||
| 7 | 61003426 | Barrier | 10 |
|
$ 0.62 | ||||
| 8 | WP488234 | Screw (Replaces: 61003297) | 10 |
|
$ 6.07 | ||||
| 8 | 12001991 | Solenoid (Replaces: 61003121) | 10 |
|
Immediately | $ 226.90 | |||
| 9 | 61003408 | Bracket, Fountain (alm) | 10 |
|
- | ||||
| 9 | 61004757 | Foam Seal | 10 |
|
$ 5.51 | ||||
| 10 | 70119-1 | Receptacle, Bulb | 10 |
|
- | ||||
| 11 | W10857122 | Bulb, Light (Replaces: 63179-1) | 10 |
|
$ 12.45 | ||||
| 12 | 61003410 | Pad, Actuator (alm) | 10 |
|
$ 11.62 | ||||
| 13 | WP489399 | Screw (Replaces: 61001885) | 10 |
|
$ 6.26 | ||||
| 13 | 61005626 | Valve, Water (ice Maker) (Replaces: 61004823) | 10 |
|
Immediately | $ 127.35 | |||
| 13 | 12001892 | Valve, Water (filter) (Replaces: 61003783) | 10 |
|
$ 239.38 | ||||
| 14 | 61003732 | Bracket, Water Valve | 10 |
|
- | ||||
| 15 | 69583-2 | Nut, Compression (5/16``) | 10 |
|
- | ||||
| 15 | WP627018 | Nut, Compression (1/4``) (Replaces: 69583-1) | 10 |
|
$ 9.87 | ||||
| 16 | 61003458 | Wire Harness, Ftn. Switches | 10 |
|
- | ||||
| 16 | 61004775 | Wire Harness, Ftn. | 10 |
|
- |
