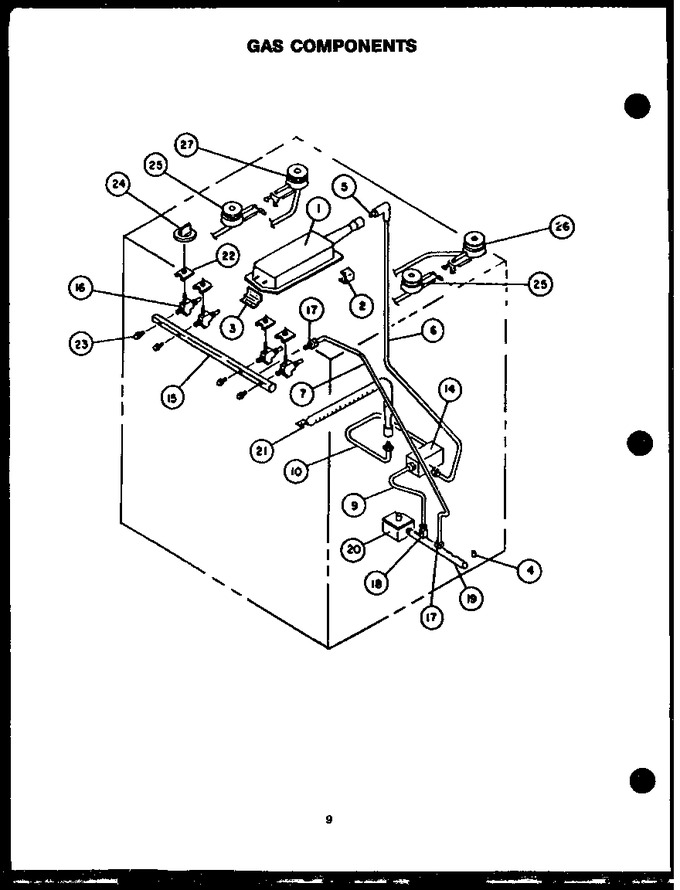

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y0060691		Assy, Br. Burner		Appelez-nous	-
2	0063785		Bracket, Ignitor		Appelez-nous	-
3	Y0060687		Bracket, Mtg. Br. Support		Appelez-nous	-
4	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
5	Y0063060		Orifice Spud, Nat. Gas No.50		Appelez-nous	-
5	Y0063061		Orifice, No.58 Lp		Appelez-nous	-
6	Y0300687		Kit, Orifice,tubing,brkt		Appelez-nous	-
7	Y0300686		Tubing, Inlet To Manifold		Appelez-nous	-
9	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
10	Y0300685		Tubing, Oven Burner		Appelez-nous	-
14	Y0300664		Valve, Gas		Appelez-nous	-
15	0300628		Manifold Pipe		Appelez-nous	-
16	0300593		Valve, Top Burner		Appelez-nous	-
17	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
18	Y0301361		Valve, Shut-off		Appelez-nous	-
19	0300479		Inlet Pipe		Appelez-nous	-
20	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
21	Y0063709		Oven Burner		Appelez-nous	-
22	Y0300521		Switch,licon Gas Ignition				$ 57.33
23	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
24	0300787		Knob, Selector		Appelez-nous	-
24	Y0300705		Knob, Top Burner (blk)		Appelez-nous	-
24	0300788		Knob, Thermostat		Appelez-nous	-
25	Y0063147		Top Burner Front		Appelez-nous	-
26	Y0063146		Top Burner Rr		Appelez-nous	-
27	Y0063145		Top Burner Lr		Appelez-nous	-
NI	Y0062755		Grounding Bracket		Appelez-nous	-
NI	0063144		Mounting Bracket		Appelez-nous	-
NI	WPY0070927		Mounting Clip   (Replaces: Y0070927)				$ 6.85
