| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

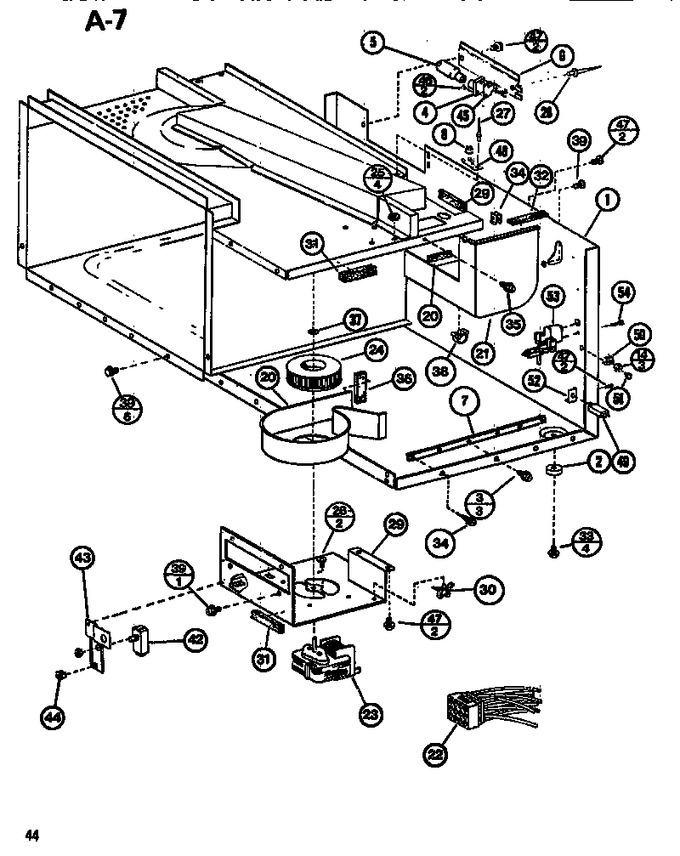

| 1 | D7506208 | Base Pan |
|
- | |||||
| 2 | B5732506 | Foot O.c. Wrapper |
|
- | |||||
| 3 | M0251017 | Screw |
|
- | |||||
| 4 | B5764301 | Socket-lamp |
|
- | |||||
| 5 | A3167503 | Bulb-250 V |
|
- | |||||
| 6 | B5782907 | Panel, Access |
|
- | |||||
| 7 | B8356701 | Brace, Base Pan |
|
- | |||||
| 8 | B5665807 | Thermal Cut-out |
|
- | |||||
| 14 | M0282005 | Nut K |
|
$ 7.07 | |||||
| 20 | D7609401 | Scroll |
|
- | |||||
| 21 | D7349003 | Magnetron Cover |
|
- | |||||
| 22 | D7640501 | Wiring Harness |
|
- | |||||
| 23 | C3656508 | Motor 50 Cy |
|
- | |||||
| 24 | C8793501 | Blower Wheel |
|
- | |||||
| 25 | M0282801 | Lock-nut---k |
|
- | |||||
| 26 | WP3400094 | Screw (Replaces: M0258055) |
|
$ 7.14 | |||||
| 27 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 28 | A4539601 | Pop Rivet |
|
- | |||||
| 29 | A3030302 | Gasket |
|
- | |||||
| 30 | B5667303 | Clip |
|
- | |||||
| 31 | A3030303 | Gasket (per Foot) |
|
- | |||||
| 32 | A3030309 | Gasket (per Foot) |
|
- | |||||
| 33 | M0220219 | Screw-shoulder |
|
- | |||||
| 34 | M0288213 | Clip |
|
- | |||||
| 35 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 36 | A3030308 | Gasket |
|
- | |||||
| 37 | WP3195558 | Clip-blwr Ret (Replaces: M0118903) |
|
$ 7.68 | |||||
| 38 | M0106801 | Clip |
|
- | |||||
| 39 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 40 | D7533302 | Mtg Plate |
|
- | |||||
| 42 | B5761905 | Switch, Limit |
|
- | |||||
| 43 | C8896601 | Bracket |
|
- | |||||
| 44 | M0580204 | Grommet |
|
- | |||||
| 45 | B5798801 | Brk-lampholder |
|
- | |||||
| 46 | M0254518 | Screw |
|
- | |||||
| 47 | M0251002 | Screw |
|
- | |||||
| 49 | B5717801 | Line Filter Xx |
|
- | |||||
| 50 | A3197701 | Washer-u Type |
|
- | |||||
| 51 | M0293502 | Stud-self Clinch |
|
- | |||||
| 52 | B5696103 | Bracket-line Filter |
|
- | |||||
| 53 | B8354401 | Strain Relief |
|
- | |||||
| 54 | M0211522 | Screw |
|
- | |||||
| NI | B5725102 | Clip |
|
- |
