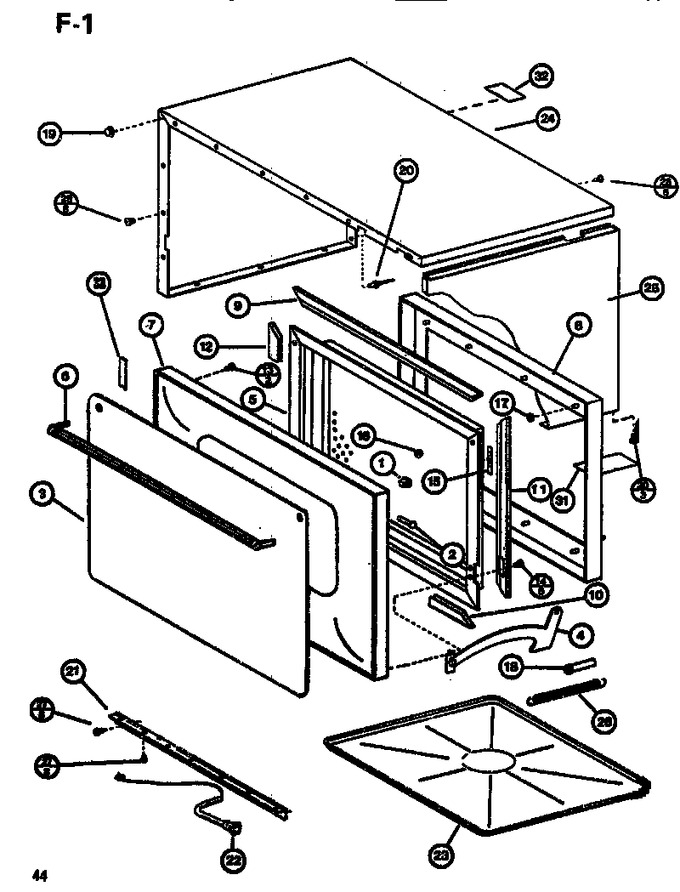

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	B8345501		Stricker, Switch		Appelez-nous	-
2	A3183901		Rivet		Appelez-nous	-
3	D7425810		Window		Appelez-nous	-
4	B5693106		Counterbalance Arm L		Appelez-nous	-
4	B5693105		Cb Arm L		Appelez-nous	-
5	C8755401		Inner Door Assy A		Appelez-nous	-
6	C3671301		Handle-door		Appelez-nous	-
7	D7514904		Outer Door		Appelez-nous	-
8	R0157457		Inner Door Mold Assy		Appelez-nous	-
9	D7320001		Gasket Top A		Appelez-nous	-
10	D7320002		Gasket Bottom A		Appelez-nous	-
11	D7320003		Gasket Right A		Appelez-nous	-
12	D7320004		Gasket Left A		Appelez-nous	-
13	M0234031		Screw		Appelez-nous	-
14	M0259218		Screw		Appelez-nous	-
15	M0275115		Tape Per Roll		Appelez-nous	-
16	M0287401		Nut		Appelez-nous	-
17	M0288801		Nut K		Appelez-nous	-
18	R0193046		Torx Bit Tx 15h		Appelez-nous	-
19	A1511502		Bumper		Appelez-nous	-
20	A4539615		Rivet-pop		Appelez-nous	-
21	C8886601		Hinge		Appelez-nous	-
22	B5669001		Cord, Power		Appelez-nous	-
23	D7089603		Oven Tray Kit		Appelez-nous	-
24	D7378110		Outer Cabinet		Appelez-nous	-
25	D7378004		Access Panel Pntd		Appelez-nous	-
26	M0775001		Spring		Appelez-nous	-
27	M0259203		Screw		Appelez-nous	-
28	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
29	M0216517		Screw		Appelez-nous	-
30	M0259318		Screw Torx		Appelez-nous	-
31	B5738502		Warranty Seal		Appelez-nous	-
32	M0275165		Tape Alum		Appelez-nous	-
33	M0275155		Tape Roll		Appelez-nous	-
