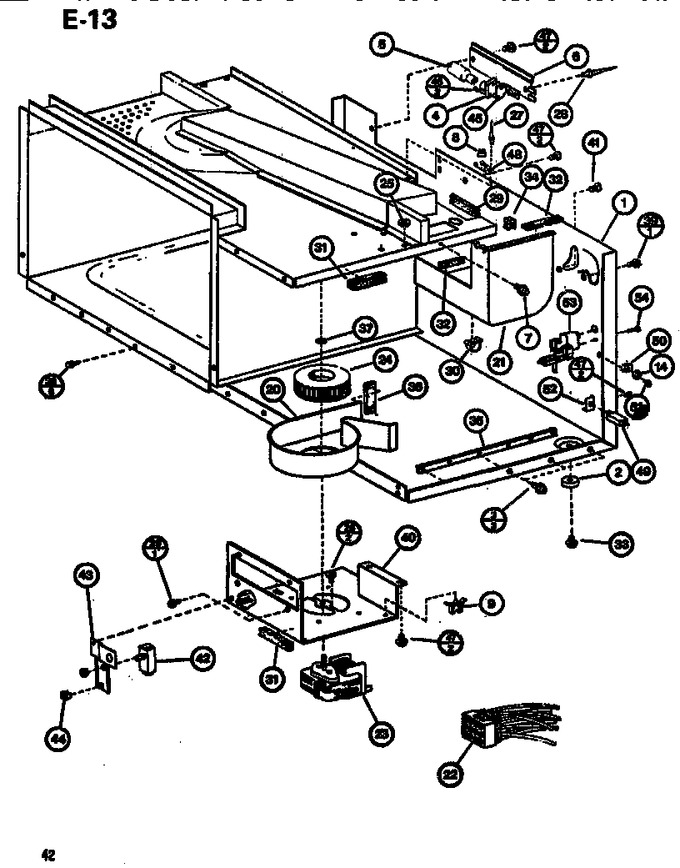

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7506208		Base Pan		Appelez-nous	-
2	B5732506		Foot O.c. Wrapper		Appelez-nous	-
3	M0251017		Screw		Appelez-nous	-
4	B5764301		Socket-lamp		Appelez-nous	-
5	A3167503		Bulb-250 V		Appelez-nous	-
6	B5782907		Panel, Access		Appelez-nous	-
7	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
8	B5665807		Thermal Cut-out		Appelez-nous	-
9	B5667303		Clip		Appelez-nous	-
14	M0282005		Nut K				$ 7.07
20	D7609401		Scroll		Appelez-nous	-
21	D7349003		Magnetron Cover		Appelez-nous	-
22	D7640401		Wiring Harness Oven		Appelez-nous	-
23	C3656508		Motor 50 Cy		Appelez-nous	-
24	C8793501		Blower Wheel		Appelez-nous	-
25	M0282801		Lock-nut---k		Appelez-nous	-
26	WP3400094		Screw   (Replaces: M0258055)				$ 7.14
27	WP210720		Pop Rivets   (Replaces: A4539605)				$ 12.14
28	A4539601		Pop Rivet		Appelez-nous	-
29	A3030302		Gasket		Appelez-nous	-
30	M0106801		Clip		Appelez-nous	-
31	A3030303		Gasket (per Foot)		Appelez-nous	-
32	A3030309		Gasket (per Foot)		Appelez-nous	-
33	M0220219		Screw-shoulder		Appelez-nous	-
34	M0288213		Clip		Appelez-nous	-
35	B8356701		Brace, Base Pan		Appelez-nous	-
36	A3030308		Gasket		Appelez-nous	-
37	WP3195558		Clip-blwr Ret   (Replaces: M0118903)				$ 7.68
39	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
40	D7533302		Mtg Plate		Appelez-nous	-
41	M0216519		Screw		Appelez-nous	-
42	B5761905		Switch, Limit		Appelez-nous	-
43	C8896601		Bracket		Appelez-nous	-
44	M0580204		Grommet		Appelez-nous	-
45	B5798801		Brk-lampholder		Appelez-nous	-
46	M0234016		Screw		Appelez-nous	-
47	M0251002		Screw		Appelez-nous	-
48	B5725102		Clip		Appelez-nous	-
49	B5717801		Line Filter Xx		Appelez-nous	-
50	A3197701		Washer-u Type		Appelez-nous	-
51	M0293502		Stud-self Clinch		Appelez-nous	-
52	B5696103		Bracket-line Filter		Appelez-nous	-
53	B8354401		Strain Relief		Appelez-nous	-
54	M0211522		Screw		Appelez-nous	-
