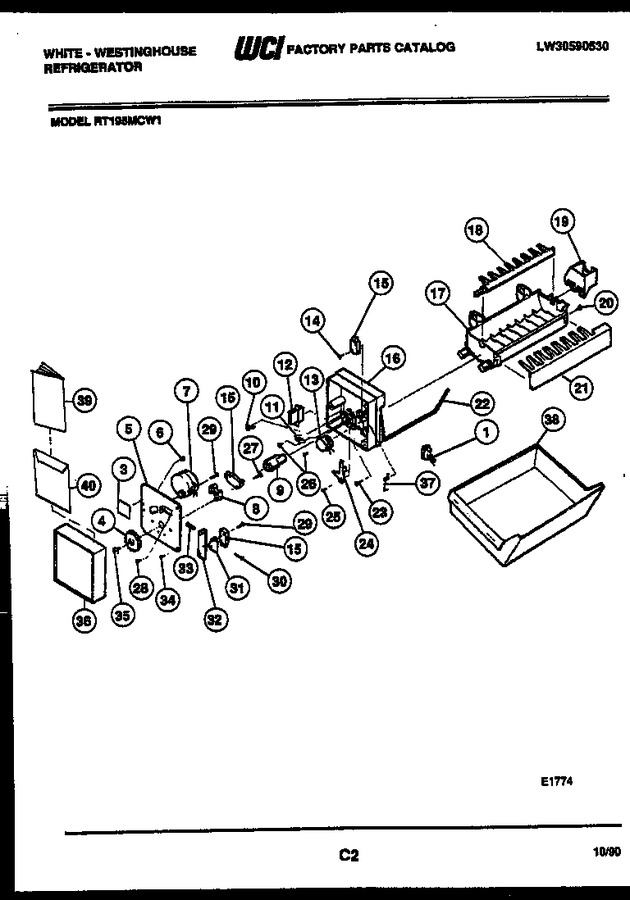

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3206349 | Harness Assembly |
|
$ 130.20 | |||||
| 3 | 3206299 | I.d. Plate |
|
- | |||||
| 4 | 3206301 | Gear |
|
- | |||||
| 5 | 3206303 | Plate-mounting |
|
$ 47.41 | |||||
| 6 | 3206305 | Screw-8/32 X 1/4 (ground Wire Screw) |
|
- | |||||
| 7 | 5303918277 | Motor Assembly (Replaces: 3206306) |
|
Immediately | $ 96.11 | ||||
| 8 | 3206312 | Spacer-holding Switch |
|
- | |||||
| 9 | 3206313 | Cam |
|
- | |||||
| 10 | 3206315 | Clamp |
|
$ 35.33 | |||||
| 11 | 3206319 | Thermal Cutoff Assy |
|
$ 48.72 | |||||
| 12 | 3206321 | Plug |
|
$ 29.82 | |||||
| 13 | 3206322 | Thermostat Assembly |
|
$ 130.41 | |||||
| 14 | 3206323 | Screw - 4-24 X 3/4 Switch To Support (2) |
|
- | |||||
| 15 | 5304456667 | Switch,(3) (Replaces: 3206324) |
|
$ 92.53 | |||||
| 16 | 3206326 | Support |
|
- | |||||
| 17 | 3206327 | Mold - Body Assy W/ Heater |
|
- | |||||
| 18 | 3206328 | Ejector |
|
- | |||||
| 19 | 3206330 | Bearing & Inlet |
|
- | |||||
| 20 | 3206331 | Screw, 8-18 X 3/8, (2) |
|
- | |||||
| 21 | 3206332 | Stripper Ice |
|
- | |||||
| 22 | 3206333 | Arm, Shut-off |
|
- | |||||
| 23 | 3206334 | Screw - 8-18 X 1 Support To Mold Body (4) |
|
- | |||||
| 24 | 5304456675 | Arm Lever (Replaces: 3206335) |
|
$ 66.63 | |||||
| 25 | 3206336 | Screw-8-18 X 9/16 Lever Arm To Support |
|
- | |||||
| 26 | 3206337 | Screw-4-24 X 3/8 Thermo To Support (4) |
|
- | |||||
| 27 | 3206338 | Screw-4-40 X 1 Switch Spacer To Plate (2) |
|
- | |||||
| 28 | 3206339 | Screw-4-40 X 3/8 Timing Stop Screw |
|
- | |||||
| 29 | 3206340 | Screw-4-40 X 3/4 Motor Switch To Plate (4) |
|
- | |||||
| 30 | 3206341 | Screw - 8-32 X 1 Timing Screw |
|
- | |||||
| 31 | 3206342 | Insulator |
|
- | |||||
| 32 | 3206343 | Plate-valve Switch |
|
- | |||||
| 33 | 3206344 | Spring |
|
- | |||||
| 34 | 3206345 | Screw-8-18 X 7/16 Mtg Plate To Support (3) |
|
- | |||||
| 35 | 3206346 | Screw - 6-20 X .437 Gear To Cam |
|
- | |||||
| 36 | 3206347 | Cover-complete |
|
$ 29.24 | |||||
| 37 | 3206348 | Spring, Shut-off Arm |
|
- | |||||
| 38 | 3206274 | Container - Ice |
|
- | |||||
| 39 | 5303207442 | Data Sheet |
|
- | |||||
| 40 | 5303207445 | Envelope-data Sheet |
|
- | |||||
| 36A | 3206277 | Label - I/m |
|
- |
