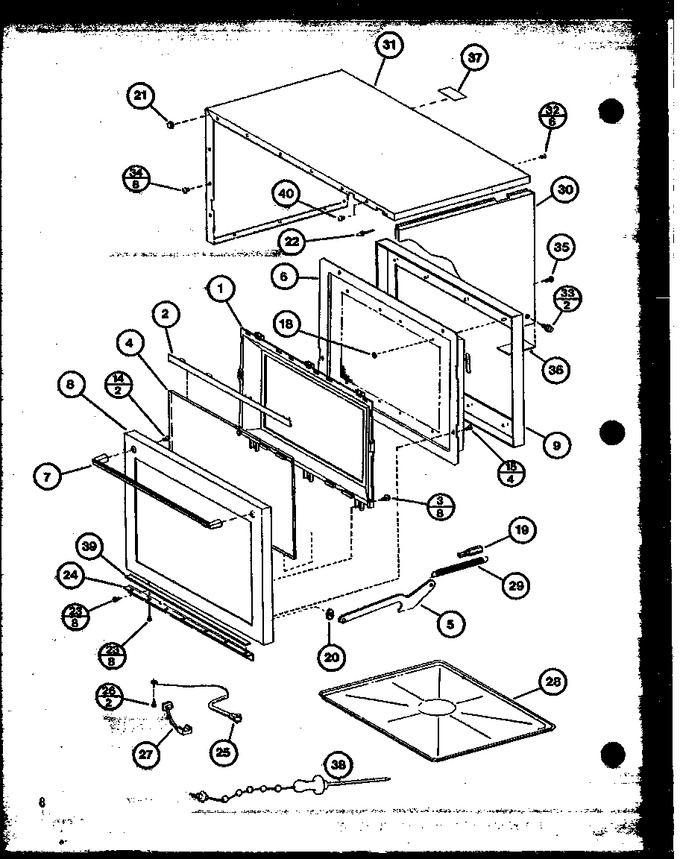

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7663001		Lens Retainer		Appelez-nous	-
2	D7533502		Cap Lens Retainer		Appelez-nous	-
3	M0253704		Screw A K		Appelez-nous	-
4	D7534001		Outer Window A		Appelez-nous	-
5	C8890602		Counterbalance Arm		Appelez-nous	-
6	D7662906		Inner Door Weld Ptd		Appelez-nous	-
7	D7623801		Door Handle		Appelez-nous	-
8	D7597708		Outer Door		Appelez-nous	-
9	R0157489		Inner Door Mld Assy		Appelez-nous	-
14	WPW10068250		Screw   (Replaces: M0234029)				$ 3.66
15	M0259218		Screw		Appelez-nous	-
18	M0288801		Nut K		Appelez-nous	-
19	R0193046		Torx Bit Tx 15h		Appelez-nous	-
20	A1042201		Pin, Ctr Bal Arm		Appelez-nous	-
21	A1511502		Bumper		Appelez-nous	-
22	A4539615		Rivet-pop		Appelez-nous	-
23	M0259203		Screw		Appelez-nous	-
24	C8886601		Hinge		Appelez-nous	-
25	B8310501		Cord, Power		Appelez-nous	-
26	M0218116		Screw		Appelez-nous	-
27	A0319703		Strain Relief K		Appelez-nous	-
28	D7089603		Oven Tray Kit		Appelez-nous	-
29	C8893501		Spring Dr Latch K		Appelez-nous	-
30	D7396803		Access Panel		Appelez-nous	-
31	D7396701		Wrapper		Appelez-nous	-
32	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
33	M0243324		Screw Torx		Appelez-nous	-
34	M0216517		Screw		Appelez-nous	-
35	M0259318		Screw Torx		Appelez-nous	-
36	B5738501		Seal K		Appelez-nous	-
37	M0275165		Tape Alum		Appelez-nous	-
38	C8821503		Temp Probe		Appelez-nous	-
39	A3127102		Shim		Appelez-nous	-
39	A3127101		Shim		Appelez-nous	-
40	M0213817		Screw		Appelez-nous	-
NI	A0050769		Paint-spray-deep Rich Br.		Appelez-nous	-
NI	R0197055		Paint Deep Rich Br.		Appelez-nous	-
NI	R0193552		Torx Drive Shank		Appelez-nous	-
NI	R0193551		Bit For Torx 15h Drive Screws		Appelez-nous	-
