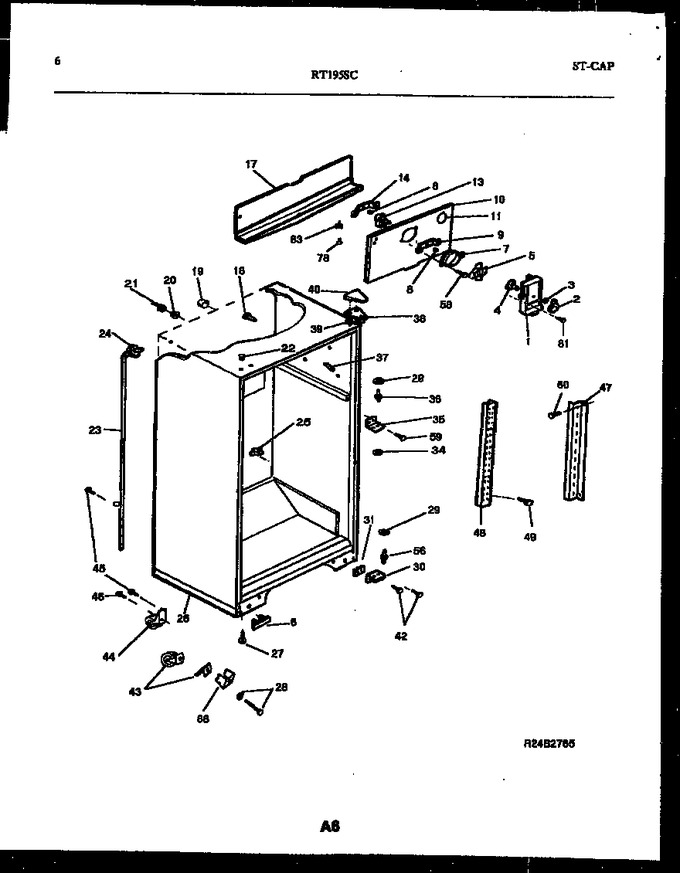

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | 5303001369 | Bracket-ctr Hinge |
|
- | |||||
| 36 | 5308000184 | Pin-center Hinge |
|
$ 8.87 | |||||
| 37 | 5303202339 | Trim-cabinet Corner, Coffee, (4) |
|
- | |||||
| 38 | 5308012843 | Bracket-upper Hinge |
|
$ 71.47 | |||||
| 39 | 5303001037 | Shim - Upper Hinge |
|
$ 12.39 | |||||
| 40 | 5303001666 | Cover-upper Hinge, Coffee |
|
- | |||||
| 42 | 5303001320 | Screw, Hinge/gusset, Hx Wshr Hd Mach, 1/4, 20 X 5/8, (6) |
|
- | |||||
| 43 | 5308009790 | รบ Spring-roller Adj |
|
$ 4.30 | |||||
| 43 | 5308009760 | Roller Assy-front, (2) |
|
- | |||||
| 44 | 5308009773 | Roller Assy, Rear, (2) |
|
- | |||||
| 45 | 5304455651 | Screw (Replaces: 5303001343) |
|
$ 14.41 | |||||
| 46 | 5308009762 | Bolt, Roller Mtg, Hx Wshr Hd Mach, 1/4, 28 X 1/2, (2) |
|
- | |||||
| 47 | 5308000302 | Channel, Shelf Mtg, Side, (2) |
|
- | |||||
| 48 | 3916030 | Channel-shelf Mtg, Center |
|
- | |||||
| 49 | 5308016568 | Screw-chan/air Duct, Cr Pan Head, 8(a) X 1-1/2 |
|
- | |||||
| 56 | 5303001321 | Pin-lower Hinge |
|
$ 17.25 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 60 | 5308010253 | Screw |
|
- | |||||
| 78 | 5303274237 | Screw-bracket, Hex Washer Head, 8-32(ca) X 1/2 |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 83 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 88 | 5308013678 | Support-cab. Base |
|
- | |||||
| *67545 | 5308016571 | Plug-button, Liner |
|
$ 4.79 | |||||
| 38A | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 38B | 5308012296 | Tapping Plate, Upper Hinge, (2) (non-illustrated) |
|
$ 47.44 |
