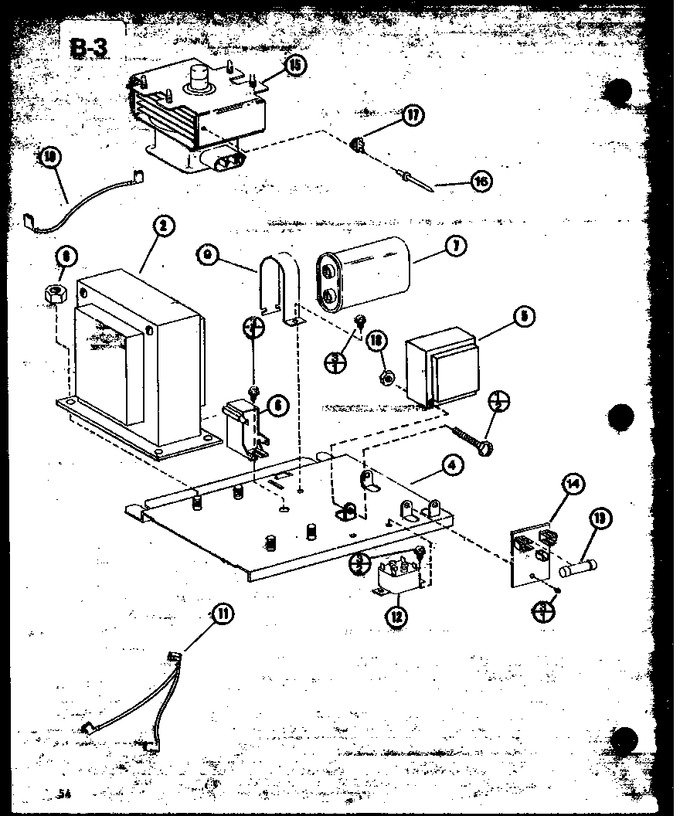

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | M0253509 | Screw |
|
- | |||||
| 2 | D7423102 | Transformer |
|
- | |||||
| 3 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 7.09 | ||||
| 4 | D7422904 | Xfmr Plate |
|
- | |||||
| 5 | C8788001 | Transformer Filament |
|
- | |||||
| 6 | B8329801 | Kit, Diode |
|
- | |||||
| 7 | D8547904 | Capacitor |
|
- | |||||
| 8 | WP487939 | Nut (Replaces: M0282015) |
|
$ 6.95 | |||||
| 9 | A3257003 | Strap-capacitor |
|
- | |||||
| 10 | D7292672 | Jumper Wire |
|
- | |||||
| 10 | D7292652 | Jumper Wire |
|
- | |||||
| 11 | D7292655 | Jumper Wire |
|
- | |||||
| 12 | B5773502 | Relay K |
|
- | |||||
| 13 | WPM0805102 | Fuse 15 Amp (Replaces: M0805102) |
|
$ 21.25 | |||||
| 14 | C8845901 | Terminal Board K |
|
- | |||||
| 15 | C8761711 | Magnetron |
|
- | |||||
| 16 | WP210720 | Pop Rivets (Replaces: A4539605) |
|
$ 12.14 | |||||
| 17 | B5795304 | Fuse, Thermal |
|
- | |||||
| 18 | M0282005 | Nut K |
|
$ 7.07 |
