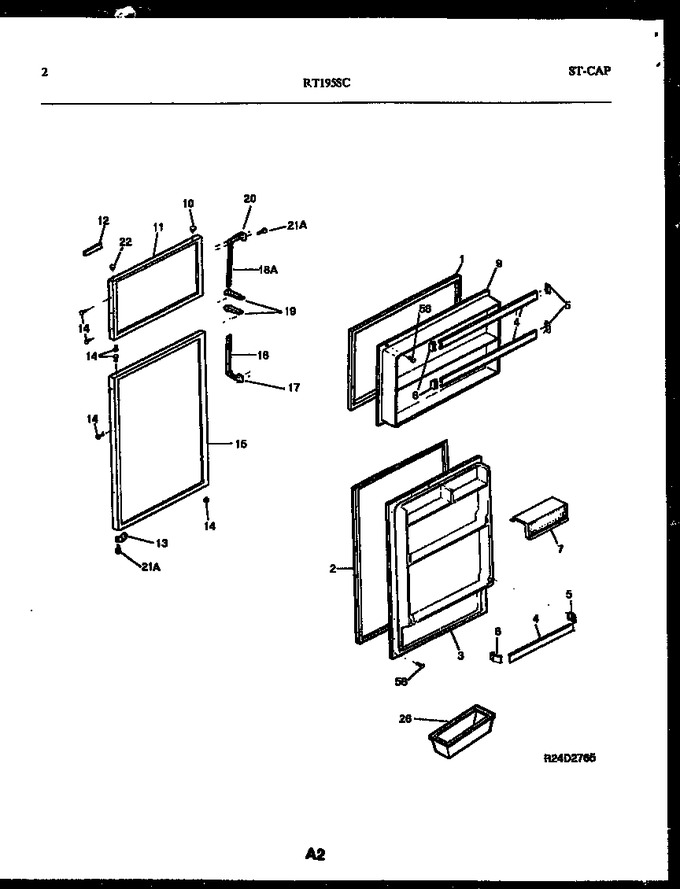

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303018791 | Gasket-frzr Door, Magnetic |
|
$ 130.56 | |||||
| 2 | 5303018792 | Gasket-refr Door, Magnetic |
|
- | |||||
| 3 | 5303206569 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 5316331691 | Rack-door, (4) |
|
- | |||||
| 5 | 5303007295 | Support-door Rack, Rh, (4) |
|
$ 32.55 | |||||
| 6 | 5303007297 | Support-door Rack, Lh, (4) |
|
$ 64.58 | |||||
| 7 | 5303207477 | Door-dairy, Lh |
|
- | |||||
| 7 | 5303207476 | Door-dairy, Rh |
|
- | |||||
| 9 | 5303206550 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5303001308 | Plug-button, Almond, Hinge Brg Hole |
|
- | |||||
| 11 | 5303916682 | Panel-frzr Door, Almond |
|
- | |||||
| 12 | 3206159 | Nameplate Assy |
|
- | |||||
| 13 | 5308000255 | Door Stop, Frzr/refr |
|
$ 42.20 | |||||
| 14 | 5308000181 | Plug-button, Almond, Handle/dr Stop |
|
- | |||||
| 15 | 5303916678 | Panel-refr Door, Almond |
|
- | |||||
| 17 | 5303001015 | Handle End |
|
$ 74.29 | |||||
| 18 | 5303207222 | Grip-handle |
|
- | |||||
| 19 | 5303001296 | Handle End, (2) |
|
$ 86.36 | |||||
| 20 | 5303001014 | Handle End |
|
- | |||||
| 22 | 5308012007 | Bearing-hinge |
|
- | |||||
| 26 | 3204522 | Egg Container |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *67531 | 5303007739 | Insulation, Door, Fiberglass, (bulk) |
|
- | |||||
| 18A | 5303207221 | Grip-handle |
|
$ 134.09 | |||||
| 21A | 5308011745 | Screw |
|
$ 10.38 |
