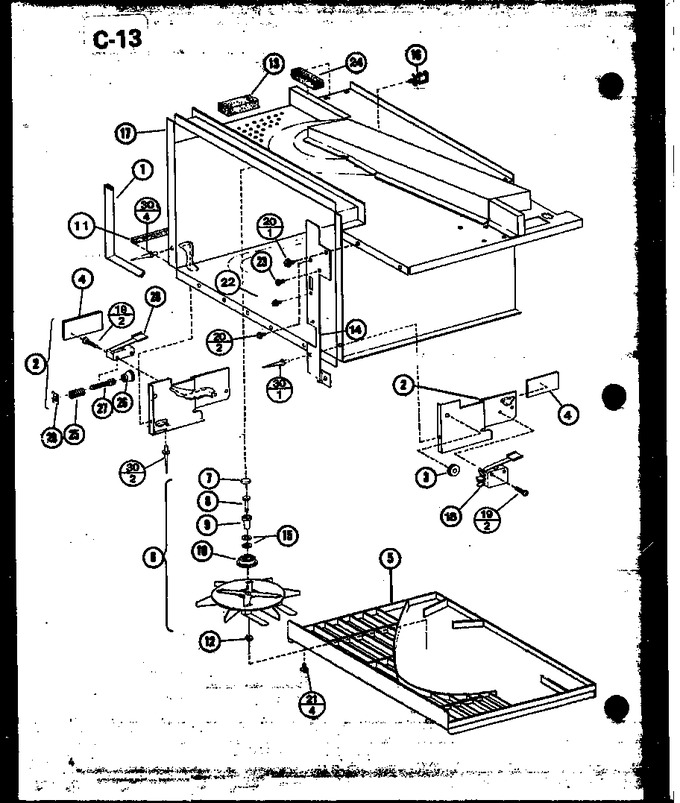

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	C8896201		Gasket, Oven		Appelez-nous	-
2	D7482001		Ctr Brkt Assy - Right		Appelez-nous	-
2	D7482003		Ctr Brkt Assy		Appelez-nous	-
3	R0157145		Roller Assy Kit		Appelez-nous	-
4	M0050902		X$x Pad		Appelez-nous	-
5	D7544001		Grease Shield		Appelez-nous	-
6	C8806701		Assy, Antenna		Appelez-nous	-
7	B5792601		Bearing Cap		Appelez-nous	-
8	B5783101		Stub-antenna A		Appelez-nous	-
9	B5783001		Bearing-antenna A		Appelez-nous	-
10	C8838501		Bushing A		Appelez-nous	-
11	A3263903		Gasket		Appelez-nous	-
12	M0281203		Nut A		Appelez-nous	-
13	A3263902		Gasket		Appelez-nous	-
14	D7562502		Flange Cover Pntd		Appelez-nous	-
15	M0274051		Washer		Appelez-nous	-
16	B5667302		Clip		Appelez-nous	-
17	D7350507		Oven Cavity		Appelez-nous	-
18	C8736703		Switch		Appelez-nous	-
19	M0227525		Screw A-k		Appelez-nous	-
20	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
21	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
22	M0236921		Screw		Appelez-nous	-
23	M0230727		Screw		Appelez-nous	-
24	A3030303		Gasket (per Foot)		Appelez-nous	-
25	A3277701		Spring A		Appelez-nous	-
26	A3277801		Guide Screw A-k		Appelez-nous	-
27	A3277601		Screw Adjusting A-k		Appelez-nous	-
28	A3162510		Switch-l Intl A		Appelez-nous	-
29	M0286114		Speed Nut A		Appelez-nous	-
30	A4539601		Pop Rivet		Appelez-nous	-
