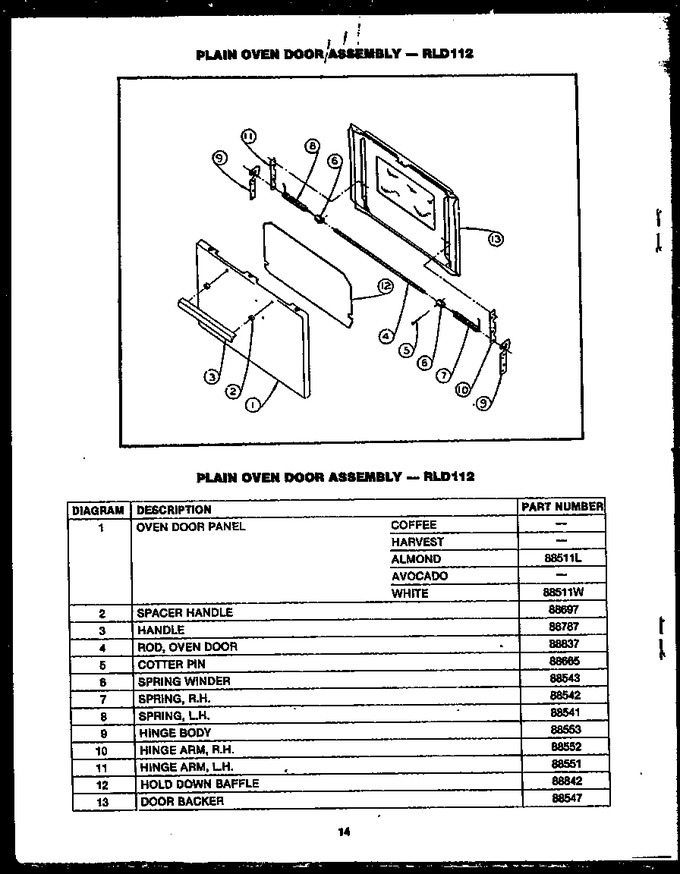

06 - Plain Oven Door
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 88511L | Oven Door Panel Almond |
|
- | |||||
| 1 | 88511W | Oven Door Panel, White |
|
- | |||||
| 2 | Y0088697 | Handle Spacer, Plastic (j) |
|
- | |||||
| 3 | Y0086787 | Handle, Oven Door (j) |
|
- | |||||
| 4 | 88837 | Rod, Oven Door |
|
- | |||||
| 5 | 88665 | Cotter Pin |
|
- | |||||
| 6 | Y0088543 | Winder, Spring |
|
- | |||||
| 7 | Y0088542 | Spring, Oven Door, R.h. |
|
- | |||||
| 8 | Y0088541 | Spring, Oven Door, L.h. |
|
- | |||||
| 9 | Y88553 | Hinge Body |
|
- | |||||
| 10 | 0088552 | Hinge Arm, R H |
|
- | |||||
| 11 | 0088551 | Hinge Arm, L.h. |
|
- | |||||
| 12 | 0088842 | Baffle, Hold Down |
|
- | |||||
| 13 | Y0088547 | Liner Oven Door |
|
- |
