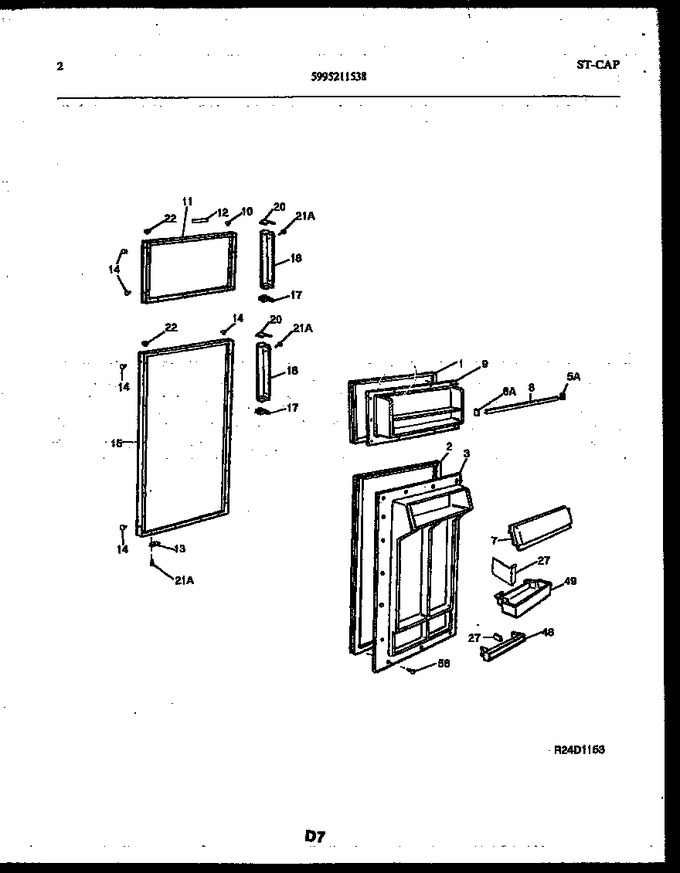

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303276826		Gasket-frzr Door, Magnetic, Almond				$ 115.08
2	5303275772		Gasket-refr Door, Magnetic, Almond		Appelez-nous	-
3	5303276800		Panel-inner Door, Refr		Appelez-nous	-
7	5303280063		Door-dairy, With Trim, Full Length		Appelez-nous	-
8	5303280192		Rack-door, (2)		Appelez-nous	-
9	5303276748		Panel-inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5318984511		Panel-frzr Door, Almond		Appelez-nous	-
12	5303279148		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303917034		Panel-refr Door, Almond		Appelez-nous	-
17	5318945101		Handle End		Appelez-nous	-
18	5303015111		Grip-handle, (2)		Appelez-nous	-
19	5318945301		Handle End, (2)		Appelez-nous	-
20	5318945201		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
27	5303275732		Snugger-door Rack		Appelez-nous	-
27	5303279906		Snugger-door Rack, (2)		Appelez-nous	-
48	5303279796		Bin-door, 2 Liter, (2)		Appelez-nous	-
49	5303279794		Bin-door, Gallon, (2)		Appelez-nous	-
58	5308002748		Screw		Appelez-nous	-
*53563	5303007739		Insulation, Door, Fiberglass, (bulk)		Appelez-nous	-
12A	5303280047		Label-nameplate		Appelez-nous	-
13A	5308000255		Door Stop, Frzr (non Illustrated)				$ 42.20
15A	5303275660		Brace, Cross (non Illustrated)		Appelez-nous	-
18A	5303211209		Insert-handle Grip, Almond, (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
