SELECT A DIAGRAM
02 - Door Parts
03 - Cabinet Parts
04 - Cabinet Parts
05 - Shelves And Supports
06 - Shelves And Supports
07 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:

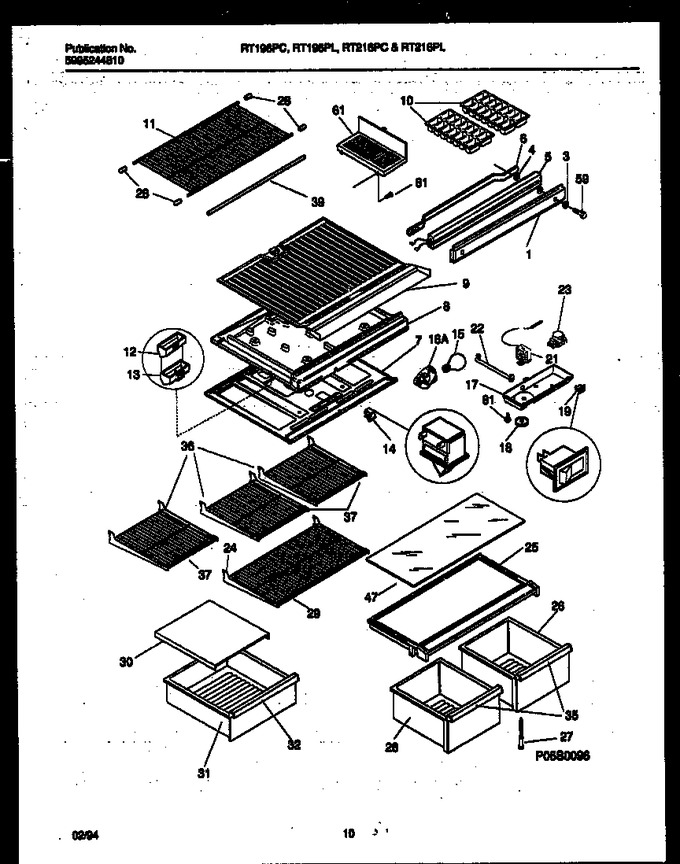

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 35 | 5303280131 | Trim-crisper Pan, Rh |
|
- | |||||
| 35 | 5303280130 | Trim-crisper Pan, Lh |
|
- | |||||
| 37 | 5303280081 | Trim-half Shelf, (3) |
|
- | |||||
| 39 | 5303280079 | Trim-frzr Shelf |
|
- | |||||
| 47 | 5303279701 | Insert-pan Cover, Glass |
|
- | |||||
| 59 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 61 | 5318609501 | Shelf-ice Tray |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| *85887 | 5300170910 | Clip-cantilevr Shlf |
|
$ 2.60 | |||||
| 61A | 5303280051 | Label-ice Tray Rack (non-illustrated) |
|
- |
