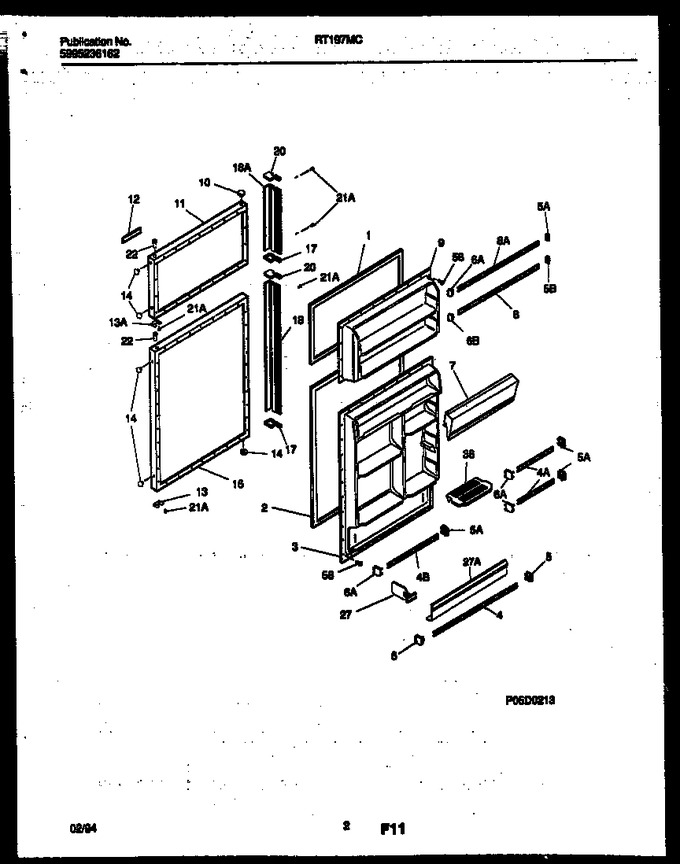

02 - Door Parts


03 - Cabinet Parts


04 - Shelves And Supports


05 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303018791		Gasket-frzr Door, Magnetic, White				$ 130.56
2	5303018792		Gasket-refr Door, Magnetic, White		Appelez-nous	-
3	3206357		Panel, Inner Door, Refr		Appelez-nous	-
5	5303206516		Support-door Rack, Rh		Appelez-nous	-
6	5303206517		Support-door Rack, Lh				$ 56.33
7	3206304		Door-dairy		Appelez-nous	-
8	3206289		Rack-door, Full-width, Wide		Appelez-nous	-
9	3206284		Panel, Inner Door, Frzr		Appelez-nous	-
10	5303001308		Plug-button, Almond, Hinge Brg Hole		Appelez-nous	-
11	5303916056		Panel-frzr Door, Almond, W/ Insulation		Appelez-nous	-
12	3206159		Nameplate Assy		Appelez-nous	-
13	5303212491		Door Stop, Refr		Appelez-nous	-
14	5308000181		Plug-button, Almond, Handle/dr Stop		Appelez-nous	-
15	5303916625		Panel-refr Door, Almond, W/ Cross Brace & Insulation		Appelez-nous	-
17	5300177143		Handle End		Appelez-nous	-
18	5303276493		Handle-door, 44`` Long, W/ End Caps		Appelez-nous	-
20	5300177142		Handle End		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
27	5303206514		Snugger-door Rack		Appelez-nous	-
36	3206189		Shelf - Flip-up				$ 50.61
58	5308002748		Screw		Appelez-nous	-
*90150	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
13A	5308000255		Door Stop-frzr				$ 42.20
17A	5300179271		Trim-handle End (non-illustrated)		Appelez-nous	-
18A	5303277266		Handle, Door, 16`` Long, W/end Caps		Appelez-nous	-
18B	5300177144		Clip-door Handle (non-illustrated)		Appelez-nous	-
20A	5300179270		Trim-handle End (non-illustrated)		Appelez-nous	-
21A	5308011745		Screw				$ 10.38
27A	3206307		Retainer-bottle		Appelez-nous	-
4A	3206191		Rack-door, Short, Narrow, (2)		Appelez-nous	-
4B	3206300		Rack-door, Medium-width, Narrow		Appelez-nous	-
5A	3206165		Support-door Rack, Rh			Immediately	$ 8.19
5B	3206161		Support-door Rack, Rh		Appelez-nous	-
6A	3206166		Support-door Rack, Lh			Immediately	$ 9.93
6B	3206162		Support-door Rack, Lh		Appelez-nous	-
8A	3206288		Rack-door, Full-width, Narrow		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
