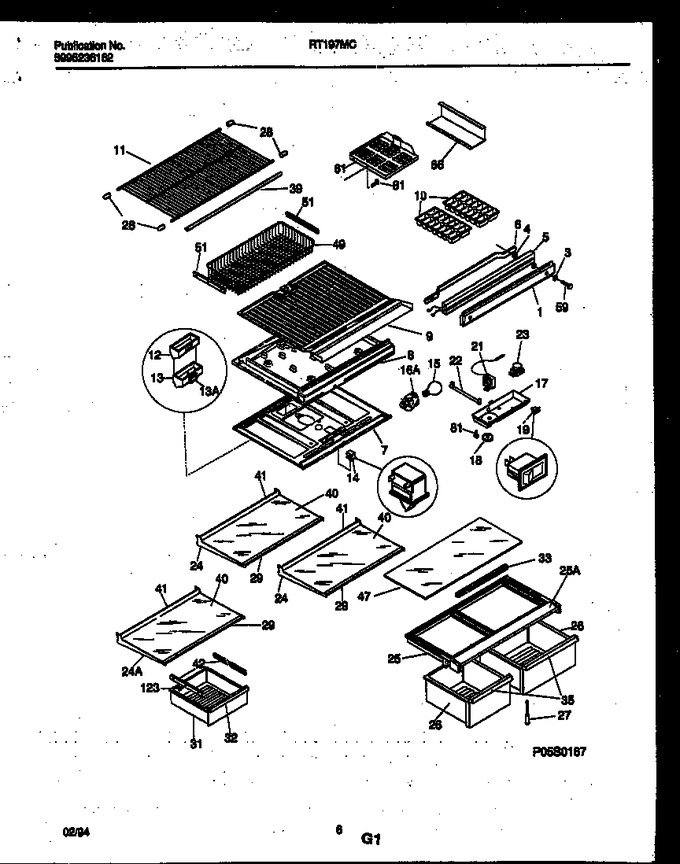

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303200366		Mullion, White				$ 70.04
3	5303206754		Washer No. 10 Flat, 7/32 X 7/16 Od, Steel		Appelez-nous	-
4	5303200464		Spacer-mullion Mtg, Steel		Appelez-nous	-
5	5303210351		Heater-mullion		Appelez-nous	-
6	5308010008		Strap-mullion Mtg		Appelez-nous	-
7	3018993		Top Panel-refr		Appelez-nous	-
8	3018994		Divider - Styrofoam		Appelez-nous	-
9	5303211427		Bottom Panel-frzr		Appelez-nous	-
10	5303001324		Tray-ice, Plastic		Appelez-nous	-
11	5303206608		Shelf - Freezer		Appelez-nous	-
12	5308014667		Deflector, Air		Appelez-nous	-
13	5303001448		Cover-air Deflector		Appelez-nous	-
14	5309918806		Switch-light/lamp			Immediately	$ 21.97
15	5303001179		Light Bulb/lamp		Appelez-nous	-
17	3206130		Box-control		Appelez-nous	-
18	5303209251		Knob-temp Control		Appelez-nous	-
19	3206129		Switch-energy Saver		Appelez-nous	-
21	5303018894		Control-temperature		Appelez-nous	-
22	3018891		Housing, Cont Cap Tube		Appelez-nous	-
23	215846602		Timer   (Replaces: 215267800)			Immediately	$ 28.20
24	3200327		Frame-full Shelf, Cantilever, (2)		Appelez-nous	-
25	5303206606		Cover-crisper Pan		Appelez-nous	-
26	5303206534		Pan-crisper, Rh, 14.35`` Wide		Appelez-nous	-
26	3206311		Pan-crisper, Lh, 11.35`` Wide		Appelez-nous	-
27	5303205987		Support-crisper Cvr, Adjustable				$ 48.41
28	3201150		Cap-protector				$ 4.57
29	5303272311		Trim-full Shelf, Front, (3)		Appelez-nous	-
31	5303206542		Pan - Meat		Appelez-nous	-
32	3201414		Trim-meat Pan		Appelez-nous	-
33	5303200329		Gasket-crisper Cvr, 13.25``		Appelez-nous	-
35	3201411		Trim-crisper Pan, Lh, 10.91``		Appelez-nous	-
35	3201409		Trim-crisper Pan, Rh, 13.91``		Appelez-nous	-
39	5303206609		Trim-frzr Shelf		Appelez-nous	-
40	5303206612		Shelf-glass, Full Shelf, (3)		Appelez-nous	-
41	5303206854		Trim-full Shelf, Rear, (3)		Appelez-nous	-
42	5303210017		Hanger-meat Pan Rh				$ 107.89
42	5303210016		Hanger, Meat Pan, Lh				$ 134.09
47	5303206539		Insert-crisper Cvr, Glass		Appelez-nous	-
49	5303206610		Basket-sliding, Full-width, Frzr		Appelez-nous	-
51	5303206522		Hanger-frzr Basket-lh		Appelez-nous	-
51	5303206521		Hanger-frzr Basket-rh		Appelez-nous	-
59	5308012258		Screw				$ 2.25
61	5318609501		Compartment-ice Tray		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
86	5303206533		Rack-egg, Hanging		Appelez-nous	-
123	08014528		Screw-hanger Mtg, Cr Pan Hd Plask, 8 X 1/2, Meat/deli P				$ 4.31
*90164	215339900		Clip, Cantilevr Shlf				$ 5.83
12A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
13A	5303200590		Extension, Air Deflector, With Insulation		Appelez-nous	-
16A	218906802		Socket-light/lamp   (Replaces: 5308000815)				$ 17.72
17A	5308016567		Nut-anchor (non-illustrated)		Appelez-nous	-
21A	5303001260		Screw				$ 6.73
23A	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
24A	3200398		Frame-meat Kpr Shlf, Cantilever		Appelez-nous	-
24B	3200901		Rail-glass Support, (2 Per Shelf) (non-illustrated)		Appelez-nous	-
25A	3205547		Trim-crisper Cover		Appelez-nous	-
29A	3200321		Retainer-glass, Full Shelf (non-illustrated)		Appelez-nous	-
29B	3200408		Retainer-glass, Meat Kpr Shelf (non-illustrated)		Appelez-nous	-
7A	5303001380		Screw		Appelez-nous	-
8A	3205266		Protector-edge (non-illustrated)				$ 80.09
8B	3018900		Harness-wiring, Control/divider (non-illustrated)		Appelez-nous	-
