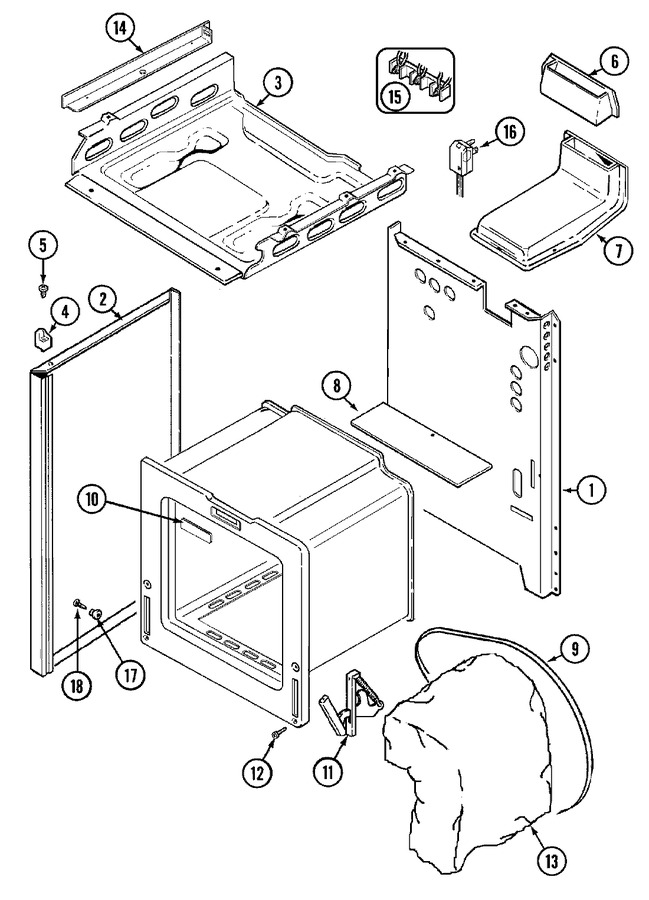

01 - Body
02 - Gas Controls
03 - Oven/base
04 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4002F188-80 | Back, Main | 01 |
|
- | ||||
| 2 | 2618F096-74 | Panel, Side (rt-alm) | 01 |
|
- | ||||
| 2 | 2618F095-74 | Panel, Side (lt-alm) | 01 |
|
- | ||||
| 3 | 4011F224-80 | Box, Burner | 01 |
|
- | ||||
| 4 | 8010P087-60 | Spacer, Main Top (lt) | 01 |
|
- | ||||
| 4 | 8010P088-60 | Spacer, Main Top (rt) | 01 |
|
- | ||||
| 5 | WP74004005 | Screw (Replaces: 7118P013-60) | 01 |
|
$ 6.95 | ||||
| 6 | 4022W004-45 | Extension, Vent Box | 01 |
|
- | ||||
| 7 | WP74003976 | Screw W/washer (Replaces: 7101P124-60) | 01 |
|
$ 6.47 | ||||
| 7 | 4006W113-45 | Box, Vent | 01 |
|
- | ||||
| 8 | 3807F416-45 | Support, Oven Back | 01 |
|
- | ||||
| 9 | 4820F001-59 | Strap, Retainer | 01 |
|
- | ||||
| 10 | 8114P335-60 | Cover, Lock Slot | 01 |
|
- | ||||
| 11 | 7106P055-60 | Hinge | 01 |
|
$ 52.22 | ||||
| 12 | WP4159193 | Screw, Hinge (Replaces: 7101P017-60) | 01 |
|
$ 4.29 | ||||
| 13 | 4804F031-60 | Insulation, Oven Back | 01 |
|
- | ||||
| 13 | 4804F032-60 | Insulation, Oven Wrapper | 01 |
|
- | ||||
| 14 | 3604F173-51 | Shield, Heat (lt) | 01 |
|
- | ||||
| 14 | 3604F174-51 | Shield, Heat (rt) | 01 |
|
- | ||||
| 15 | 7401P037-60 | Block, Terminal | 01 |
|
- | ||||
| 16 | 7402P043-60 | Cord, Power | 01 |
|
- |
