02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

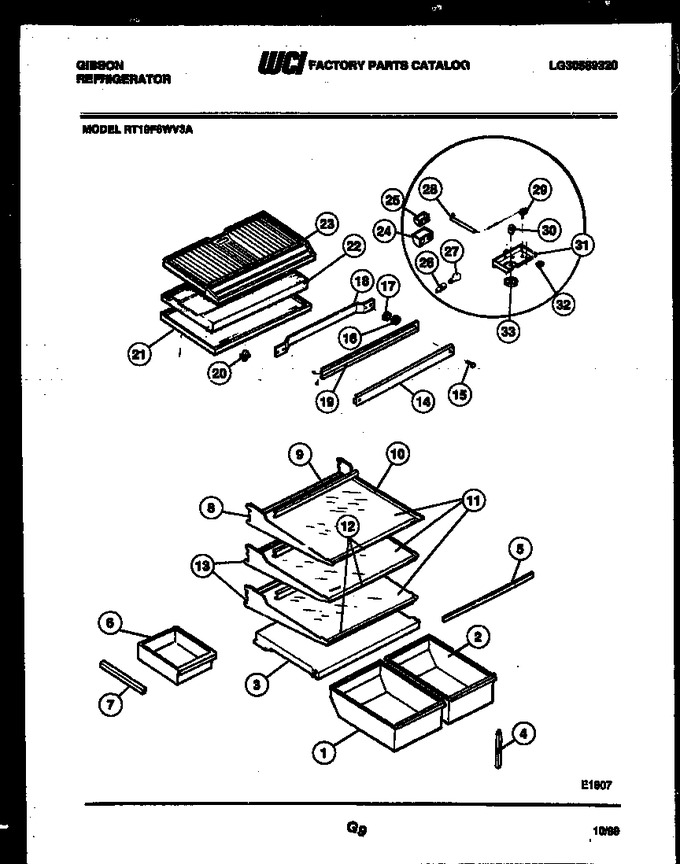

| 1 | G490015-46 | Pan-crisper Lh |
|
- | |||||
| 2 | G176639-28 | Pan-crisper Rh |
|
- | |||||
| 3 | G490064-01 | Cover, Crisper |
|
- | |||||
| 4 | 3205987 | Support-cover |
|
- | |||||
| 5 | G180108-07 | Gasket, Cover |
|
- | |||||
| 6 | G187181-01 | Meat Pan |
|
- | |||||
| 7 | 3018889 | Hanger-pan Lh |
|
- | |||||
| 8 | 3200327 | Frame-meat Pan Shelf |
|
- | |||||
| 9 | 5303206854 | Trim-rear (3) |
|
- | |||||
| 10 | 3200901 | Support-rail |
|
- | |||||
| 11 | 5303206856 | Shelf-glass (3) |
|
- | |||||
| 12 | 5303206857 | Trim-front (3) |
|
- | |||||
| 13 | 3200398 | Frame-glass Shelf (2) |
|
- | |||||
| 14 | 3200366 | Mullion-white |
|
- | |||||
| 14 | 3200367 | Mullion-avocado |
|
- | |||||
| 14 | 3200369 | Mullion-coffee |
|
- | |||||
| 14 | 3200370 | Mullion-almond |
|
- | |||||
| 14 | 3200368 | Mullion-wheat |
|
- | |||||
| 15 | G183103 | Screw (4) |
|
- | |||||
| 16 | G166847 | Washer (2) |
|
- | |||||
| 17 | 3200464 | Spacer (2) |
|
- | |||||
| 18 | G490087 | Strap, Mullion |
|
- | |||||
| 19 | 3018916 | Heater-mullion |
|
- | |||||
| 20 | G187200 | Switch-light |
|
- | |||||
| 21 | 3018893 | Top-refrigerator |
|
- | |||||
| 22 | 3018994 | Divider - Styrofoam |
|
- | |||||
| 23 | G185912 | Bottom, Freezer |
|
- | |||||
| 24 | G162178 | Cover, Deflector |
|
- | |||||
| 25 | 3204206 | Deflector - Air |
|
- | |||||
| 26 | G168510 | Socket-light |
|
- | |||||
| 27 | 3001179 | Bulb |
|
- | |||||
| 28 | 3018891 | Housing-control Tube |
|
- | |||||
| 29 | 3018894 | Control-temp |
|
- | |||||
| 30 | G187484 | Timer-defrost |
|
- | |||||
| 31 | 5303206574 | Box-control |
|
- | |||||
| 32 | 5303206872 | Switch-energy |
|
- | |||||
| 33 | 3201777 | Knob-control |
|
- | |||||
| *16266 | G174818 | Harness, Divider |
|
- | |||||
| 10A | 3200321 | Retainer-shelf (3) (non-illustrated) |
|
- | |||||
| 21A | G162673 | Screw (3) (non-illustrated) |
|
- | |||||
| 7A | 3018890 | Hanger-pan Rh |
|
- | |||||
| 7B | G184823 | Screw (2) (non-illustrated) |
|
- |
